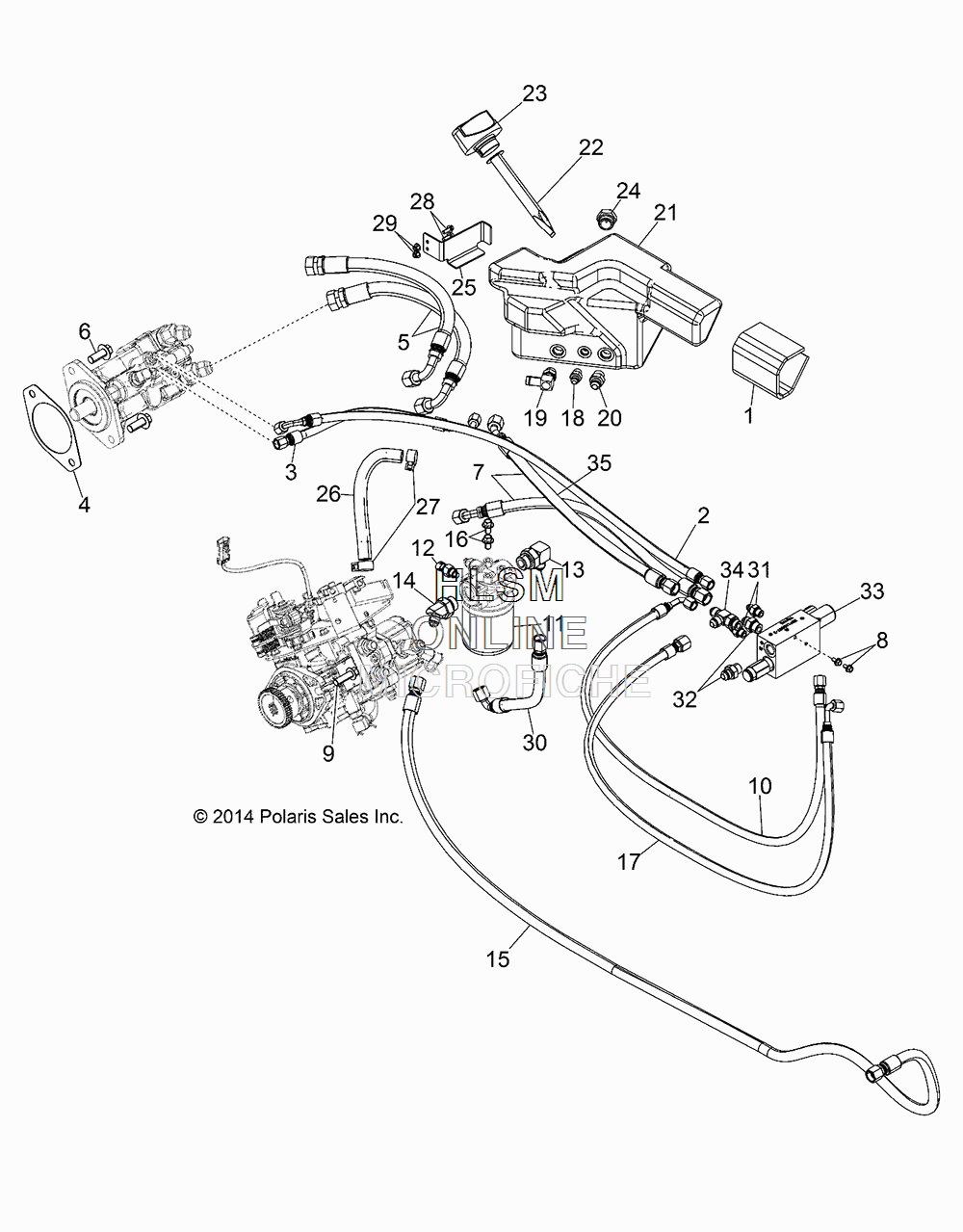

HYDROSTAT MOUNTING /LINES для Polaris RANGER HST (R02) - [R17B1PD1AA] - 2017 года выпуска
-
№АртикулНазвание
-
13120056 FOAMFOAM
-
23120810 HOSE, DRIVEN MOTOR/MANIFOLDHOSE, DRIVEN MOTOR/MANIFOLD
-
33120809 HOSE, TANK/DRIVEN MOTORHOSE, TANK/DRIVEN MOTOR
-
43120086 GASKET, MOTOR, DRIVENGASKET, MOTOR, DRIVEN
-
53120095 HOSE, PUMP MOTORHOSE, PUMP MOTOR
-
67519729 SCREWSCREW
-
73120164 HOSE, MANIFOLDHOSE, MANIFOLD
-
87519145 SCREWSCREW
-
97519730 SCREWSCREW
-
103120173 HOSE, MANIFOLD/TORQUE GENHOSE, MANIFOLD/TORQUE GEN
-
113120042 ASM., FILTER, HYDRAULIC [INCL FILTER]ASM., FILTER, HYDRAULIC [INCL FILTER]
-
113120212 FILTERFILTER
-
123120043 SENDER, HYDRAULIC TEMPSENDER, HYDRAULIC TEMP
-
133120069 FITTING-8 (37DEGX-12 ORING,90DEG)FITTING-8 (37DEGX-12 ORING,90DEG)
-
143120070 FITTING-8 (37DEGX-12 ORING,45DEG)FITTING-8 (37DEGX-12 ORING,45DEG)
-
153120812 HOSE, FILTER, COOLERHOSE, FILTER, COOLER
-
167517951 SCREWSCREW
-
173120811 HOSE, MANIFOLD/TORQUE GENHOSE, MANIFOLD/TORQUE GEN
-
183120010 FITTING-6 (37DEG X -6 ORING)FITTING-6 (37DEG X -6 ORING)
-
193120020 FITTING (90 DEG)FITTING (90 DEG)
-
203120049 FITTING-8 (37DEG X -8 ORING)FITTING-8 (37DEG X -8 ORING)
-
213120057 TANK, HYDRAULIC OILTANK, HYDRAULIC OIL
-
223120058 SCREEN, OIL TANKSCREEN, OIL TANK
-
233120059 CAP, HYDRAULICCAP, HYDRAULIC
-
243120060 GAUGE, BALLGAUGE, BALL
-
253120061 BRACKET, TANK, MOUNTBRACKET, TANK, MOUNT
-
263120837 HOSE, HYDRAULICHOSE, HYDRAULIC
-
277081825 CLAMP, HOSE (24MM)CLAMP, HOSE (24MM)
-
287518637 SCREWSCREW
-
297547339 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
303120838 HOSE, HYDRAULIC (5/8 IN X 311 MM)HOSE, HYDRAULIC (5/8 IN X 311 MM)
-
313120010 FITTING-6 (37DEG X -6 ORING)FITTING-6 (37DEG X -6 ORING)
-
323120049 FITTING-8 (37DEG X -8 ORING)FITTING-8 (37DEG X -8 ORING)
-
333120895 VALVE, MANIFOLDVALVE, MANIFOLD
-
343120088 FITTING-8 (37DEGX-8 ORING)FITTING-8 (37DEGX-8 ORING)
-
353120842 HOSE, HYDRAULICHOSE, HYDRAULIC
