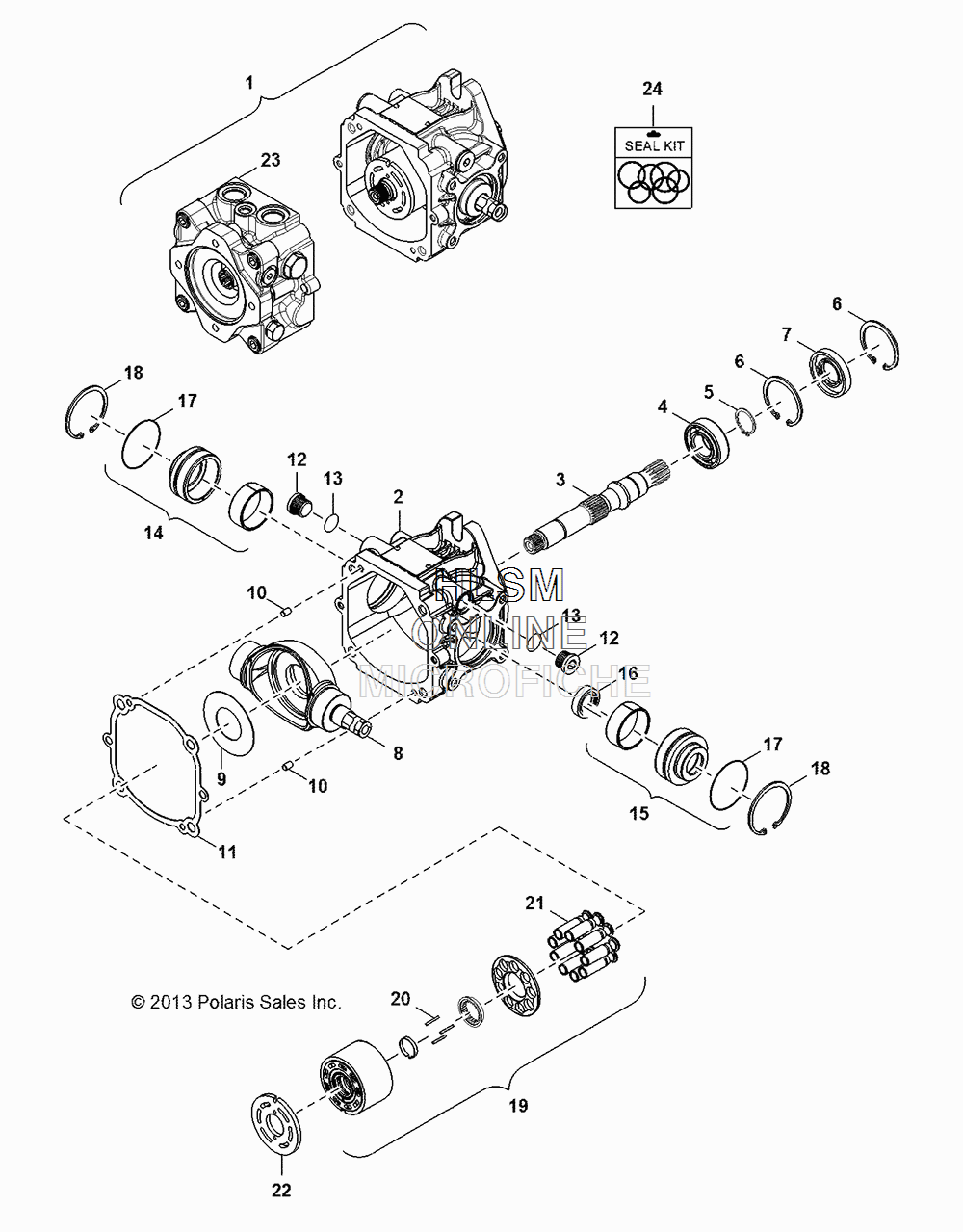

HYDRAULICS PUMP HOUSING для Polaris RANGER HST (R02) - [R17B1PD1AA] - 2017 года выпуска
-
№АртикулНазвание
-
13120831 ASM., DRIVE AND GEROTOR PUMP [INCL. 2-23]ASM., DRIVE AND GEROTOR PUMP [INCL. 2-23]
-
23120678 HOUSINGHOUSING
-
33120680 SHAFTSHAFT
-
43120665 BEARING, BALLBEARING, BALL
-
53120670 RING, RETAININGRING, RETAINING
-
63120672 RING, RETAININGRING, RETAINING
-
73120674 SEAL, SHAFTSEAL, SHAFT
-
83120682 SWASHPLATESWASHPLATE
-
93120668 PLATE, THRUSTPLATE, THRUST
-
103120725 O-RINGO-RING
-
113120677 GASKETGASKET
-
123120625 PLUG [INCL. 13]PLUG [INCL. 13]
-
133120740 O-RINGO-RING
-
143120656 HOUSING, BEARING [INCL. 17]HOUSING, BEARING [INCL. 17]
-
153120655 HOUSING, BEARING [INCL. 16,17]HOUSING, BEARING [INCL. 16,17]
-
163120673 SEAL, SHAFTSEAL, SHAFT
-
173120647 O-RINGO-RING
-
183120669 RING, RETAININGRING, RETAINING
-
193120660 KIT, BLOCK, ROTATING [INCL. 20,21]KIT, BLOCK, ROTATING [INCL. 20,21]
-
203120657 PIN, HOLDDOWNPIN, HOLDDOWN
-
213120662 ASM., PISTONASM., PISTON
-
223120659 PLATE, VALVEPLATE, VALVE
-
243120661 KIT, SEAL [INCL. 7,16,17 AND 7,12,13,16 FROM HYDRAULICS, PUMP, VALVE HOUSING PAGE.]KIT, SEAL [INCL. 7,16,17 AND 7,12,13,16 FROM HYDRAULICS, PUMP, VALVE HOUSING PAGE.]
