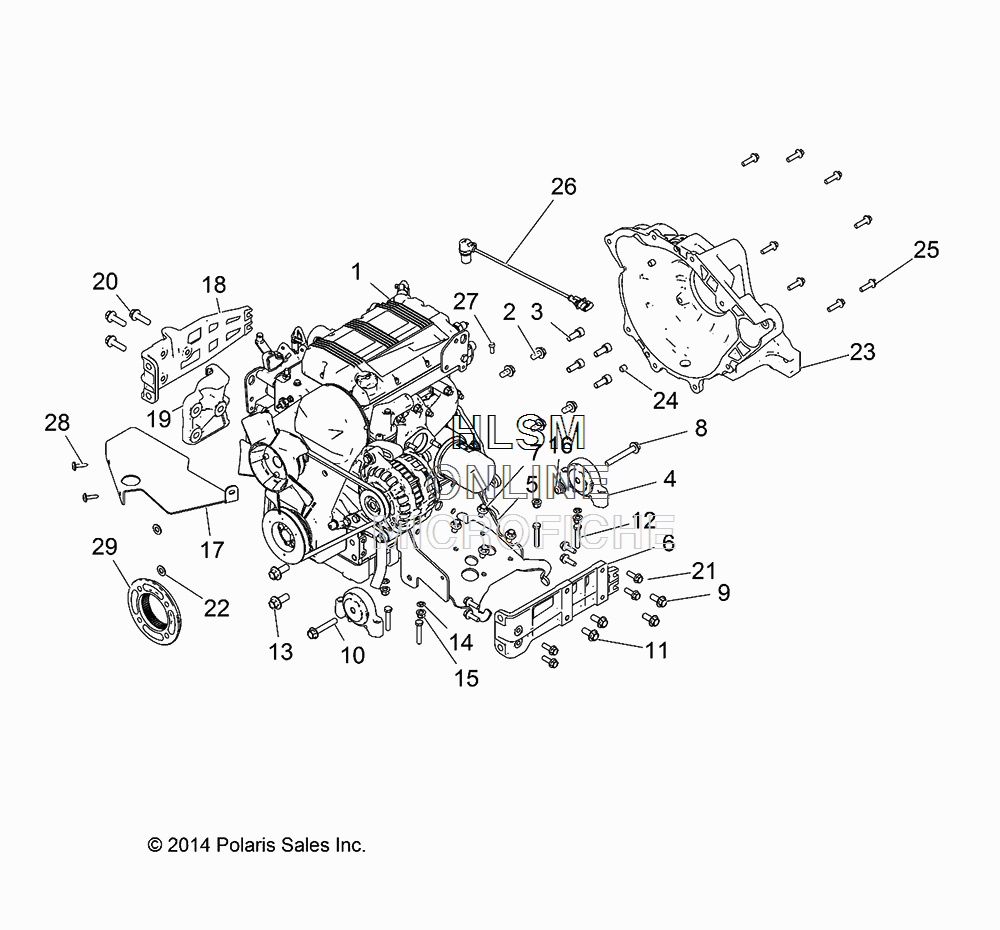

ENGINE для Polaris RANGER HST (R02) - [R17B1PD1AA] - 2017 года выпуска
-
№АртикулНазвание
-
11205625 ASM., ENGINEASM., ENGINE
-
37520228 BOLTBOLT
-
41332955 MOUNT, ISOLATOR, DRIVELINEMOUNT, ISOLATOR, DRIVELINE
-
55259847-329 BRACKET, ENGINE MOUNT, FRONT, (BLACK)BRACKET, ENGINE MOUNT, FRONT, (BLACK)
-
65633200 COUPLER, L, ENGINE, FRONTCOUPLER, L, ENGINE, FRONT
-
77517951 SCREWSCREW
-
87518473 BOLTBOLT
-
97518514 BOLTBOLT
-
107518941 SCREWSCREW
-
117519071 SCREWSCREW
-
127519097 SCREWSCREW
-
137520054 SCREWSCREW
-
147547030 NUTNUT
-
157547332 NUT, FLG, NYLOCNUT, FLG, NYLOC
-
167547423 NUT, NYLOCNUT, NYLOC
-
175260405-458 BRACKET, GUARD, BELT, (BLACK)BRACKET, GUARD, BELT, (BLACK)
-
185633498 COUPLER, ENGINE, GEARCASECOUPLER, ENGINE, GEARCASE
-
195633151 COUPLER, L, ENGINE, GEARCASECOUPLER, L, ENGINE, GEARCASE
-
207519782 SCREWSCREW
-
217519783 SCREWSCREW
-
227556153 WASHERWASHER
-
231205149 ASM., BELL HOUSING [INCL. 24]ASM., BELL HOUSING [INCL. 24]
-
247663005 DOWELL, HOLLOWDOWELL, HOLLOW
-
257518884 SCREWSCREW
-
262411719 SENSOR, CRANK POSITIONSENSOR, CRANK POSITION
-
277518548 SCREWSCREW
-
287519650 SCREWSCREW
-
293120833 COUPLER, MACHINEDCOUPLER, MACHINED
