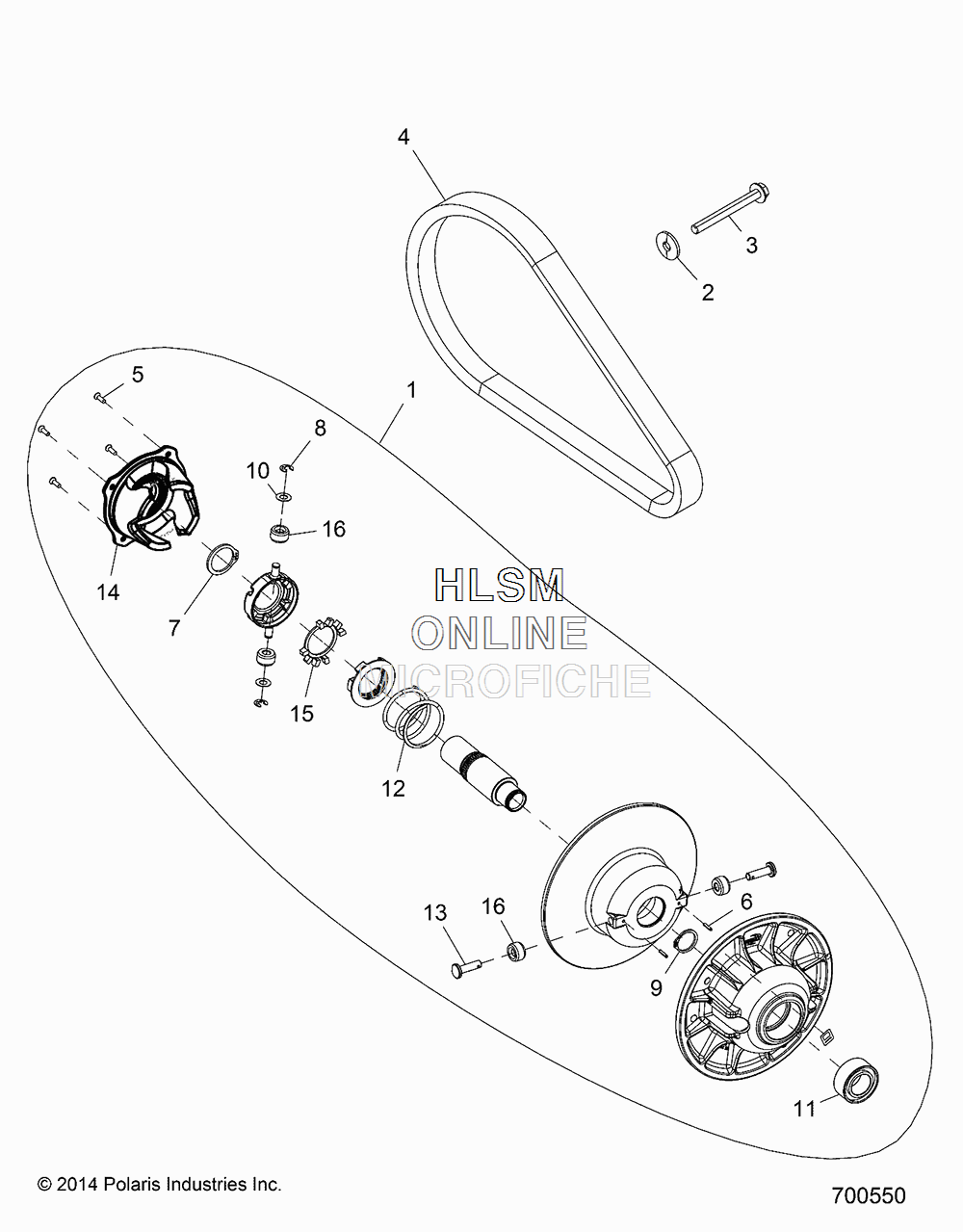

CLUTCH- SECONDARY для Polaris RGR 570 EPS HDPE (R05) - [R17RMH57A4] - 2017 года выпуска
-
№АртикулНазвание
-
11323286 ASM-DRIVEN CLUTCH,EBS [INCL. 1-8]ASM-DRIVEN CLUTCH,EBS [INCL. 1-8]
-
27555846 WASHER,FLATWASHER,FLAT
-
37519210 SCREWSCREW
-
43211149 BELT-DRIVEBELT-DRIVE
-
53234754 SCREWSCREW
-
63234202 PIN, SPRING,SLOTTEDPIN, SPRING,SLOTTED
-
77710522 RING, RETAINING, EXTERNALRING, RETAINING, EXTERNAL
-
87710523 RING, RETAINING, EXTERNALRING, RETAINING, EXTERNAL
-
93234205 RING, RETAININGRING, RETAINING
-
107556226 WASHER, THRUSTWASHER, THRUST
-
113234203 BEARING, BALLBEARING, BALL
-
123234452 SPRING, COMPRESSIONSPRING, COMPRESSION
-
133234201 PIN, ROLLERPIN, ROLLER
-
143235640 ASM., CAMASM., CAM
-
157710564 RETAINER, SPRING, INNERRETAINER, SPRING, INNER
-
165434534 ROLLER CLUTCHROLLER CLUTCH
