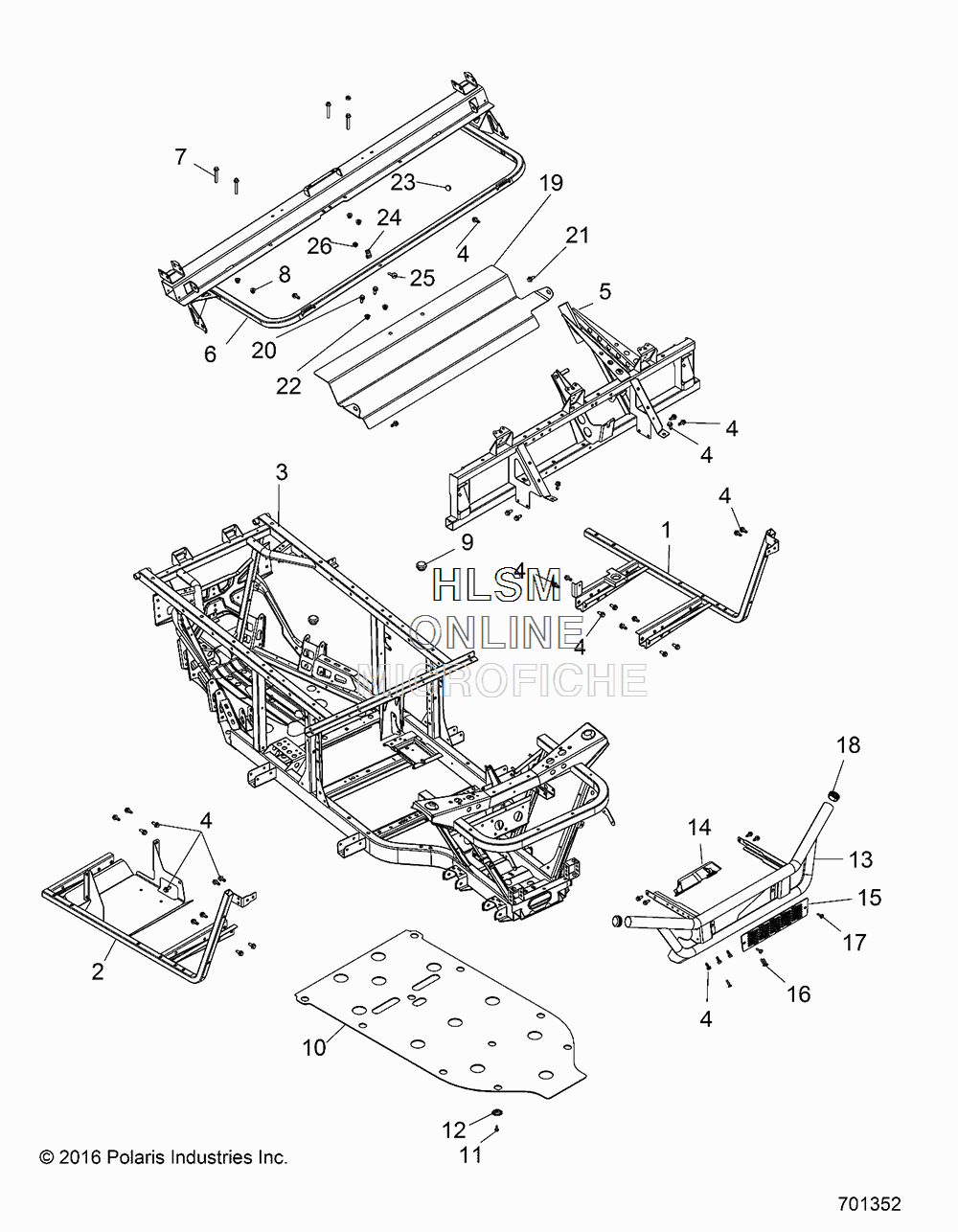

FRAME AND FRONT BUMPER для Polaris RGR 570 EPS HDPE (R05) - [R17RMH57A4] - 2017 года выпуска

№

Артикул

Название
1

1020159-329 SUPPORT, FLOOR, LEFT, (BLACK)

SUPPORT, FLOOR, LEFT, (BLACK)

37 440 ₽
2

1020160-329 SUPPORT, FLOOR, RIGHT, (BLACK)

SUPPORT, FLOOR, RIGHT, (BLACK)

37 440 ₽
3

1022487-458 WELD-MAIN FRAME,INT, (BLACK)

WELD-MAIN FRAME,INT, (BLACK)

390 ₽
4

7518555 BOLT

BOLT

630 ₽
5

1020151-329 SUPPORT, CAB, FRONT, (BLACK)

SUPPORT, CAB, FRONT, (BLACK)

74 880 ₽
6

1021330-458 WELD-SEAT BASE,CAB SUP,EU, (MATTE BLACK)

WELD-SEAT BASE,CAB SUP,EU, (MATTE BLACK)

41 600 ₽
7

7517281 SCREW

SCREW

1 000 ₽
8

7547332 NUT

NUT

250 ₽
9

5411435 BUMPER, RUBBER

BUMPER, RUBBER

420 ₽
10

5450136 PLATE, SKID

PLATE, SKID

21 840 ₽
11

7517386 SCREW

SCREW

250 ₽
12

7556065 WASHER, SKID PLATE

WASHER, SKID PLATE

1 250 ₽
13

1020136-458 BUMPER, (MATTE BLACK)

BUMPER, (MATTE BLACK)

72 800 ₽
14

5438181-070 BRACKET, BUMPER, GUARD, (BLACK)

BRACKET, BUMPER, GUARD, (BLACK)

5 200 ₽
15

5438240-070 SCREEN, BUMPER, UPPER, (BLACK)

SCREEN, BUMPER, UPPER, (BLACK)

4 370 ₽
16

7518158 SCREW

SCREW

630 ₽
17

7519650 SCREW

SCREW

250 ₽
18

5434191 CAP-BUMPER

CAP-BUMPER

880 ₽
19

5510898 PANEL-HEAT-SHIELD

PANEL-HEAT-SHIELD

5 620 ₽
20

7518591 SCR-HXFL-M6X1.0X16 8.8 ZPB

SCR-HXFL-M6X1.0X16 8.8 ZPB

250 ₽
21

7519092 SCR-TXTH-M6X1.0X15 ZPB TAP

SCR-TXTH-M6X1.0X15 ZPB TAP

250 ₽
22

7547453 NUT-HXFL-M6X1.0 8 ZB3 NYL

NUT-HXFL-M6X1.0 8 ZB3 NYL

340 ₽
23

5453007 PLUG-GROMMET

PLUG-GROMMET

250 ₽
24

7080683 CLAMP-HOSE,.312DIA,VINYL COAT

CLAMP-HOSE,.312DIA,VINYL COAT

630 ₽
25

7518504 SCR-1/4-20X1.75 TR/TX-M

SCR-1/4-20X1.75 TR/TX-M

460 ₽
26

7542153 NUT-1/4-20 NYLOC FLANGED-Y

NUT-1/4-20 NYLOC FLANGED-Y

460 ₽
