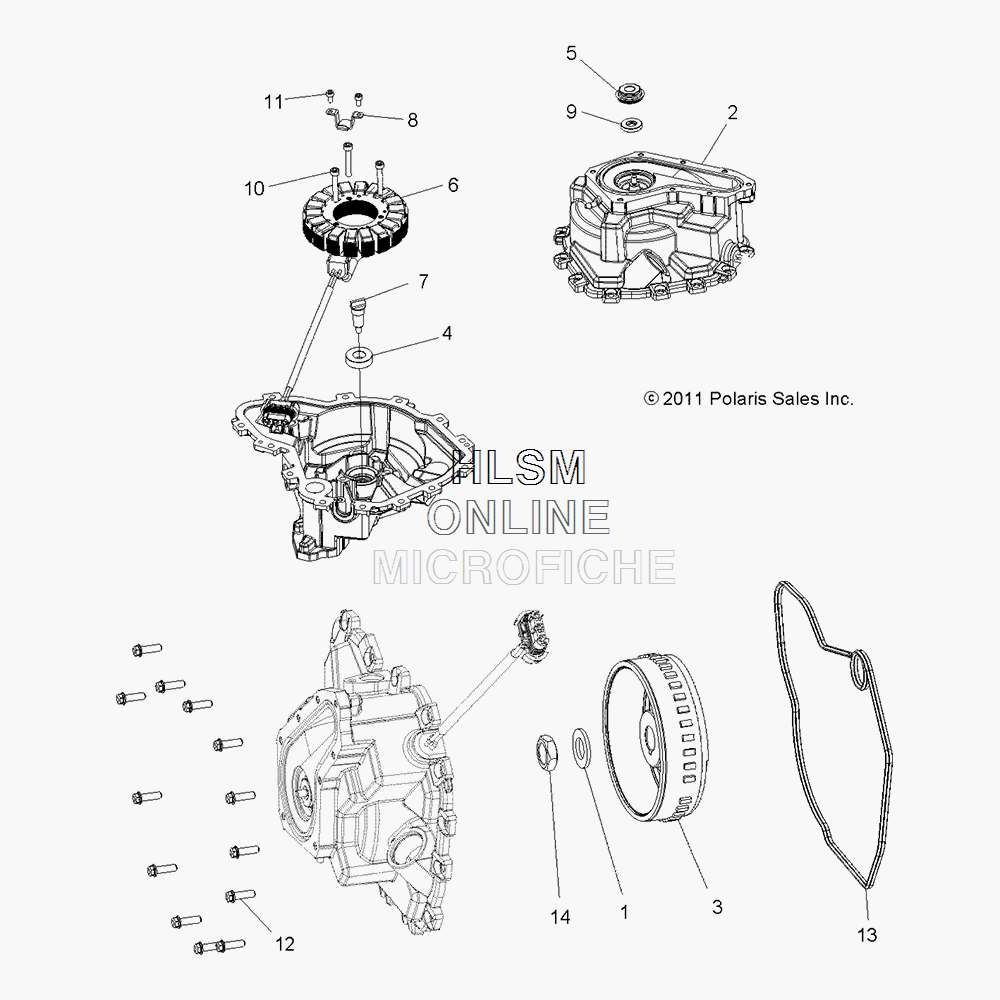

STATOR COVER W/ FLYWHEEL для Polaris RGR 570 EPS HDPE (R05) - [R17RMH57A4] - 2017 года выпуска
-
№АртикулНазвание
-
17556878 WASHERWASHER
-
22204736 KIT, IGNITION COVER [INCL. COVER, FITTING, IMPELLER,4,5,7,9]KIT, IGNITION COVER [INCL. COVER, FITTING, IMPELLER,4,5,7,9]
-
34013969 FLYWHEELFLYWHEEL
-
43514696 BEARING, SHAFT, WATERPUMPBEARING, SHAFT, WATERPUMP
-
53610173 SEAL, WATERPUMP SHAFT, WATERSEAL, WATERPUMP SHAFT, WATER
-
64015340 STATORSTATOR
-
75138035 SHAFT, PUMP DRIVESHAFT, PUMP DRIVE
-
85254832 GUIDE, STATOR LEADGUIDE, STATOR LEAD
-
95411197 SEAL, TYPE SSEAL, TYPE S
-
107510005 SCREWSCREW
-
117517847 SCREWSCREW
-
127518576 SCREWSCREW
-
135414329 GASKET, STATOR COVERGASKET, STATOR COVER
-
147547488 NUT, JAM, RIGHTNUT, JAM, RIGHT
Все узлы модели:
- A-ARM AND STRUT MOUNTING
- AIR INTAKE SYSTEM
- BATTERY
- BOX ASM.
- BOX MOUNTING
- BREATHER
- CAB FRAME
- CAM CHAIN W/ SPROCKET
- CLUTCH COVER AND DUCTING
- CLUTCH- PRIMARY
- CLUTCH- SECONDARY
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTON AND BALANCE SHAFT
- CYLINDER
- CYLINDER HEAD W/ CAMS AND VALVES
- DASH INSTRUMENTS AND CONTROLS
- DECALS
- ENGINE AND TRANSMISSION MOUNTING
- EXHAUST
- FLOOR AND FENDERS
- FRAME AND FRONT BUMPER
- FRONT CALIPER
- FRONT DRIVE SHAFT
- FRONT GEARCASE INTERNALS
- FRONT GEARCASE MOUNTING
- FRONT PROP SHAFT
- FRONT STRUT
- FUEL INJECTOR 2521403 O-RINGS
- FUEL TANK ASM.
- GEAR SELECTOR
- HEADLIGHTS- TAILLIGHTS AND BULBS
- HOOD W/ DASH AND GRILL
- IGNITION SYSTEM
- LONG BLOCK ASSY.
- MAIN GEARCASE
- MASTER CYLINDER AND BRAKE LINES
- MASTER CYLINDER AND PEDAL
- OIL FILTER W/ DIPSTICK
- OIL PUMP
- PARK BRAKE ASM.
- REAR CALIPER
- REAR DRIVE SHAFT
- REAR SUSPENSION
- REGULATOR AND RELAYS
- SEAT
- SENSORS
- SIDE NETS
- STABILIZER BAR
- STARTER DRIVE
- • STATOR COVER W/ FLYWHEEL
- STEERING ASM.
- TAILGATE ASM.
- THERMOSTAT W/ COVER
- THROTTLE BODY W/ FUEL RAIL
- THROTTLE PEDAL
- TOOL KIT AND OWNERS MANUALS
- VALVE COVER
- WATERPUMP W/ IMPELLER AND COVER
- WHEELS - FRONT
- WHEELS - REAR
- WIRE HARNESSES
