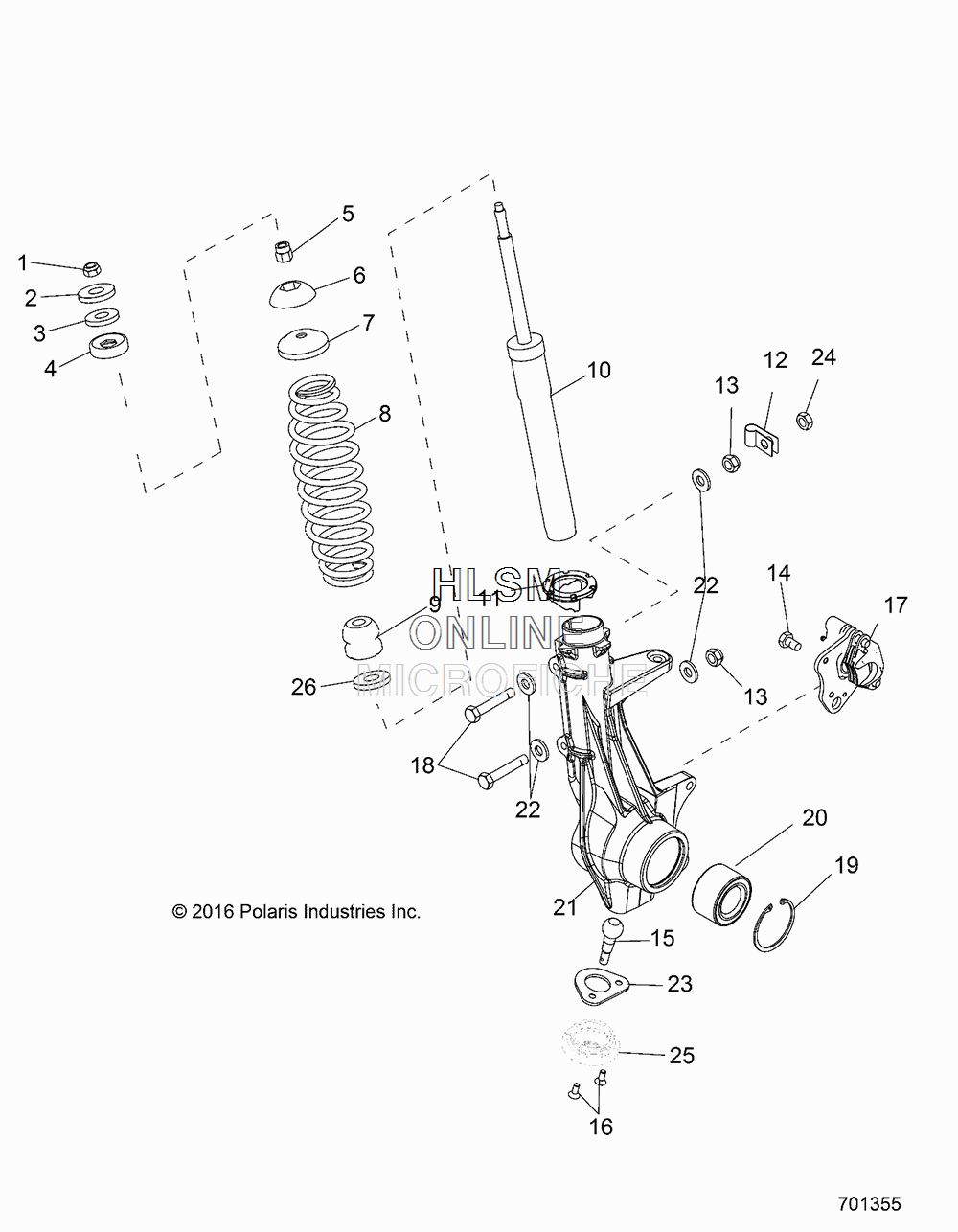

FRONT STRUT для Polaris RGR 570 EPS HDPE (R05) - [R17RMH57A4] - 2017 года выпуска
-
№АртикулНазвание
-
17547104 NUTNUT
-
27555749 WASHERWASHER
-
35810291 SPACER, RUBBERSPACER, RUBBER
-
45432872 BALL, PIVOT, TOPBALL, PIVOT, TOP
-
55132062 SPACERSPACER
-
65432871 BALL, PIVOT, BOTTOMBALL, PIVOT, BOTTOM
-
75243364 RETAINER, SPRINGRETAINER, SPRING
-
87044228-458 SPRING, FRONT, (MATTE BLACK)SPRING, FRONT, (MATTE BLACK)
-
95412665 BUMPERBUMPER
-
107044149 STRUT, FRONTSTRUT, FRONT
-
115633698 RETAINER-SPRING,ALUMNRETAINER-SPRING,ALUMN
-
127080367 CLAMP, CABLECLAMP, CABLE
-
137547332 NUT-M8X1.25,FLG,NYLOC-OLIVE DNUT-M8X1.25,FLG,NYLOC-OLIVE D
-
147518558 BOLT [ASSEMBLES BRAKE CALIPER]BOLT [ASSEMBLES BRAKE CALIPER]
-
157061193 JOINT, BALL, GREASELESSJOINT, BALL, GREASELESS
-
167512284 SCREWSCREW
-
187519212 SCREWSCREW
-
197710507 RING, RETAININGRING, RETAINING
-
203514634 BEARING, WHEELBEARING, WHEEL
-
227558402 WASHER, FLATWASHER, FLAT
-
235258210 BRACKET, BALL JOINTBRACKET, BALL JOINT
-
247542344 NUT, NYLOKNUT, NYLOK
-
255414893 BOOT-BALLJOINT, GREASELESS,STRUTBOOT-BALLJOINT, GREASELESS,STRUT
-
261501212 SPACER-STRUTSPACER-STRUT
