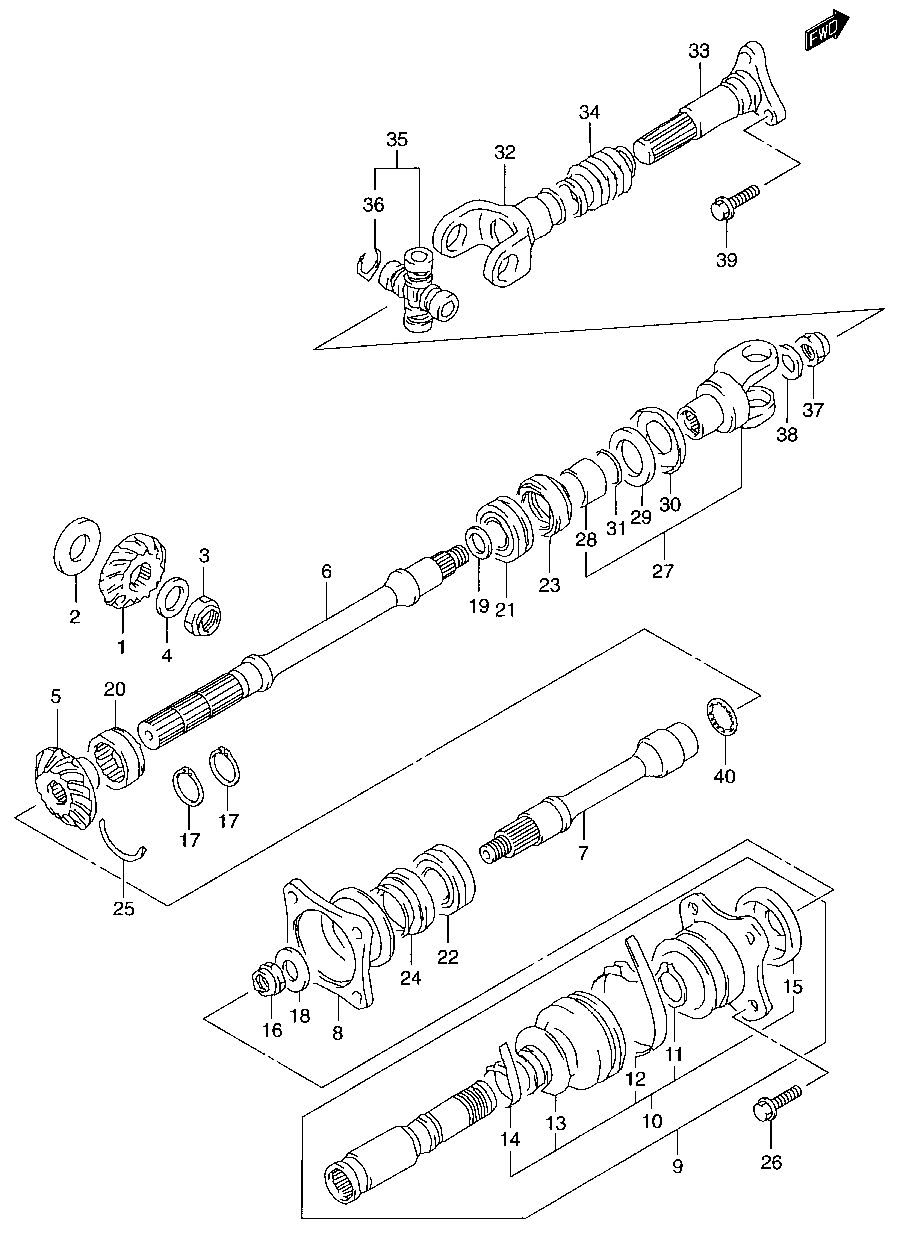

DRIVESHAFT - REAR для Suzuki LT-A500FY 4X4 - 2000 года выпуска
-
№АртикулНазвание
-
1-124911-44D20 GEAR, SEC DRIVE BEVEL (NT:15) (UP TO FRAME NO.2102989)GEAR, SEC DRIVE BEVEL (NT:15) (UP TO FRAME NO.2102989)
-
1-224911-44D30 GEAR, SEC DRIVE BEVEL (NT:15) (ABOVE FRAME NO.210990)GEAR, SEC DRIVE BEVEL (NT:15) (ABOVE FRAME NO.210990)
-
224935-19810 SHIM SET, SEC DRIVE BEVEL GEAR (T:0.25/0.30/0.35/0.90/1.00/1.05/1.10/1.15)SHIM SET, SEC DRIVE BEVEL GEAR (T:0.25/0.30/0.35/0.90/1.00/1.05/1.10/1.15)
-
309140-20012 NUT, SEC DRIVE BEVEL GEARNUT, SEC DRIVE BEVEL GEAR
-
409181-20223 WASHER, SEC DRIVE BEVEL GEAR (20X32X1)WASHER, SEC DRIVE BEVEL GEAR (20X32X1)
-
5-124921-09F50 GEAR, SEC DRIVEN BEVEL (UP TO FRAME NO.2102989)GEAR, SEC DRIVEN BEVEL (UP TO FRAME NO.2102989)
-
5-224921-09F60 GEAR, SEC DRIVEN BEVEL (ABOVE FRAME NO.2102990)GEAR, SEC DRIVEN BEVEL (ABOVE FRAME NO.2102990)
-
624961-09F52 SHAFT, SEC DRIVEN (FRONT)SHAFT, SEC DRIVEN (FRONT)
-
724970-09F52 SHAFT, SEC DRIVEN OUTPUT (REAR)SHAFT, SEC DRIVEN OUTPUT (REAR)
-
827140-44D10 FLANGE, OUTPUT JOINT (REAR)FLANGE, OUTPUT JOINT (REAR)
-
927200-44D00 JOINT ASSY., OUTPUT (REAR)JOINT ASSY., OUTPUT (REAR)
-
1027201-44D00 ...BOOT SET, JOINT...BOOT SET, JOINT
-
1127214-44D00 ......RING, SNAP......RING, SNAP
-
1244121-60DB0 ......BAND......BAND
-
1327213-44D00 ......BOOT......BOOT
-
1444124-60DB0 ......BAND......BAND
-
1527215-44D00 ......SEAL PLATE......SEAL PLATE
-
1609159-16003 NUT, OUTPUT JOINT (REAR)NUT, OUTPUT JOINT (REAR)
-
1708331-31246 CIRCLIP, SEC DRIVEN GEARCIRCLIP, SEC DRIVEN GEAR
-
1809160-16026 WASHER, OUTPUT FLANGE (16X30X3) (REAR)WASHER, OUTPUT FLANGE (16X30X3) (REAR)
-
19-109181-25051 SHIM, SEC DRIVEN (25X34X0.6)SHIM, SEC DRIVEN (25X34X0.6)
-
19-209181-25052 SHIM, SEC DRIVEN (25X34X0.65)SHIM, SEC DRIVEN (25X34X0.65)
-
19-309181-25053 SHIM, SEC DRIVEN (25X34X0.70)SHIM, SEC DRIVEN (25X34X0.70)
-
19-409181-25054 SHIM, SEC DRIVEN (25X34X0.75)SHIM, SEC DRIVEN (25X34X0.75)
-
19-509181-25055 SHIM, SEC DRIVEN (25X34X0.80)SHIM, SEC DRIVEN (25X34X0.80)
-
19-609181-25056 SHIM, SEC DRIVEN (25X34X0.85)SHIM, SEC DRIVEN (25X34X0.85)
-
19-709181-25057 SHIM, SEC DRIVEN (25X34X0.90)SHIM, SEC DRIVEN (25X34X0.90)
-
19-809181-25058 SHIM, SEC DRIVEN (25X34X0.95)SHIM, SEC DRIVEN (25X34X0.95)
-
19-909181-25059 SHIM, SEC DRIVEN (25X34X1.00)SHIM, SEC DRIVEN (25X34X1.00)
-
19-1009181-25060 SHIM, SEC DRIVEN (25X34X1.05)SHIM, SEC DRIVEN (25X34X1.05)
-
19-1109181-25061 SHIM, SEC DRIVEN (25X34X1.10)SHIM, SEC DRIVEN (25X34X1.10)
-
19-1209181-25062 SHIM, SEC DRIVEN (25X34X1.15)SHIM, SEC DRIVEN (25X34X1.15)
-
19-1309181-25063 SHIM, SEC DRIVEN (25X34X1.20)SHIM, SEC DRIVEN (25X34X1.20)
-
2009263-30050 BRG, SEC DRIVEN GEAR (30X50X17)BRG, SEC DRIVEN GEAR (30X50X17)
-
2109267-25006 BRG, SEC DRIVEN OUTPUT SFT (FRONT) (25X52X20.6)BRG, SEC DRIVEN OUTPUT SFT (FRONT) (25X52X20.6)
-
2209267-25006 BRG, SEC DRIVEN OUTPUT SFT (REAR) (25X52X20.6)BRG, SEC DRIVEN OUTPUT SFT (REAR) (25X52X20.6)
-
2309283-34008 OIL SEAL, DRIVEN SFT (FRONT) (34X52X9)OIL SEAL, DRIVEN SFT (FRONT) (34X52X9)
-
2409283-34008 OIL SEAL, DRIVEN SFT (REAR) (34X52X9)OIL SEAL, DRIVEN SFT (REAR) (34X52X9)
-
2509390-50002 RING, SEC DRIVEN BRG,MRING, SEC DRIVEN BRG,M
-
2609106-08095 BOLT, OUTPUT JOINT (REAR)BOLT, OUTPUT JOINT (REAR)
-
2727130-19B10 YOKE, DRIVE OUTPUT (FRONT)YOKE, DRIVE OUTPUT (FRONT)
-
2827591-19B01 ...COLLAR, YOKE...COLLAR, YOKE
-
2927592-19B00 ...PLATE, YOKE COLLAR...PLATE, YOKE COLLAR
-
3009165-30003 ...PLATE, YOKE COLLAR...PLATE, YOKE COLLAR
-
3109280-28007 ...O-RING, YOKE COLLAR (ID:28,DD:1.0)...O-RING, YOKE COLLAR (ID:28,DD:1.0)
-
3227140-09F50 YOKE, PROP SFT JOINTYOKE, PROP SFT JOINT
-
3327150-09F50 SHAFT, PROPELLERSHAFT, PROPELLER
-
3427153-09F50 BOOT, PROP SHAFTBOOT, PROP SHAFT
-
3527200-73813 JOINT SET, UNIVERSALJOINT SET, UNIVERSAL
-
3609380-25005 ...CIRCLIP...CIRCLIP
-
3709159-16003 NUT, YOKE (FRONT)NUT, YOKE (FRONT)
-
3809160-16026 WASHER, DRIVE OUTPUT YOKE (FRONT) (16X30X3)WASHER, DRIVE OUTPUT YOKE (FRONT) (16X30X3)
-
3901550-10203 BOLT, PROP SHAFTBOLT, PROP SHAFT
-
4009167-24002 WASHER, SEC DRIVEN SHAFTWASHER, SEC DRIVEN SHAFT
