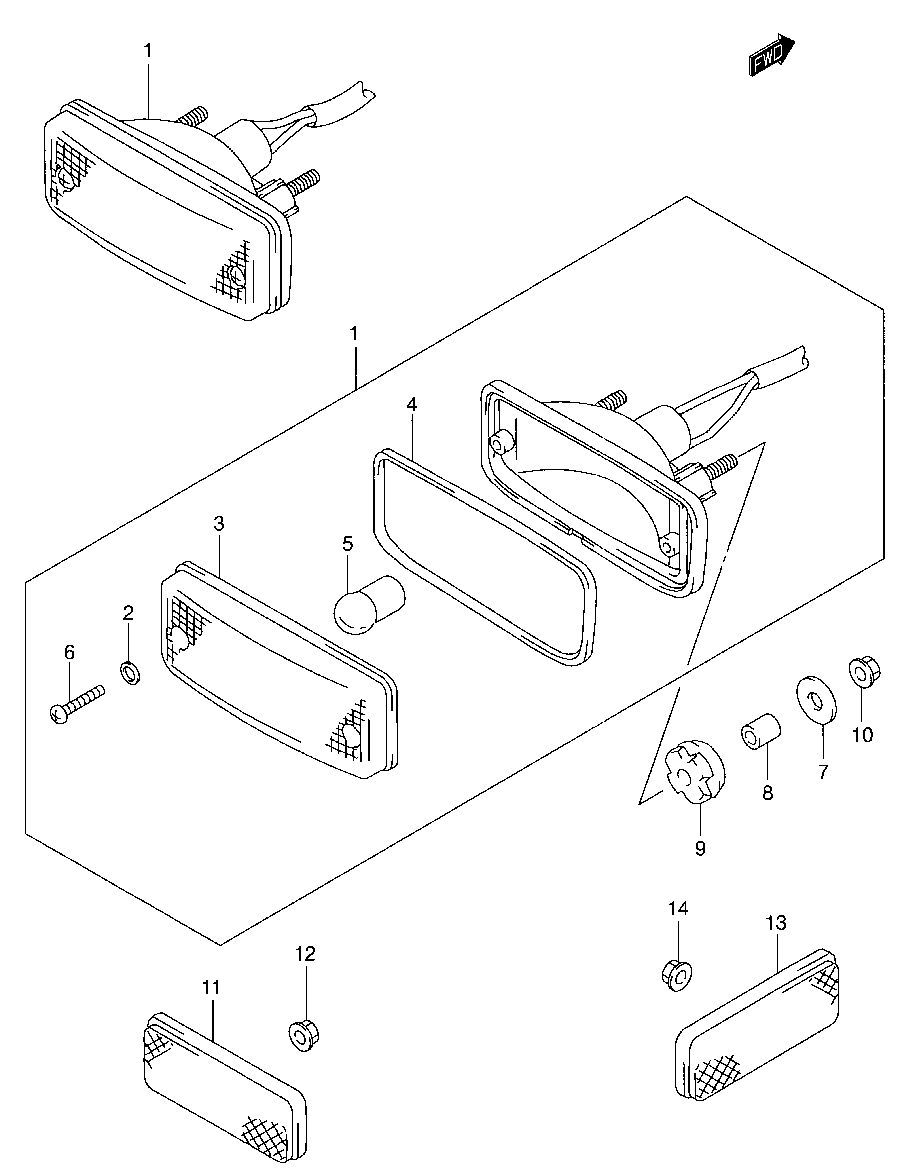

TAILLIGHT ASSY. для Suzuki LT-A500FY 4X4 - 2000 года выпуска
-
№АртикулНазвание
-
1-135710-41B02 LAMP ASSY., TAILLAMP ASSY., TAIL
-
235627-43010 ...SCREW...SCREW
-
335712-18A32 ...LENS...LENS
-
435713-18A30 ...GASKET...GASKET
-
509471-12140 ...BULB (12V,5W)...BULB (12V,5W)
-
603211-04163 ...SCREW...SCREW
-
709160-06088 WASHER (6.5X20X1.6)WASHER (6.5X20X1.6)
-
809180-06290 SPACER (6.5X10X12)SPACER (6.5X10X12)
-
909320-09010 CUSHIONCUSHION
-
1008316-10063 NUTNUT
-
1135970-07F00 REFLECTOR ASSY., SIDE (CANADA) (REAR)REFLECTOR ASSY., SIDE (CANADA) (REAR)
-
1208316-10053 NUT (CANADA)NUT (CANADA)
-
1335970-07F00 REFLECTOR ASSY. (REAR) (CANADA)REFLECTOR ASSY. (REAR) (CANADA)
-
1408316-10053 NUT (CANADA)NUT (CANADA)
