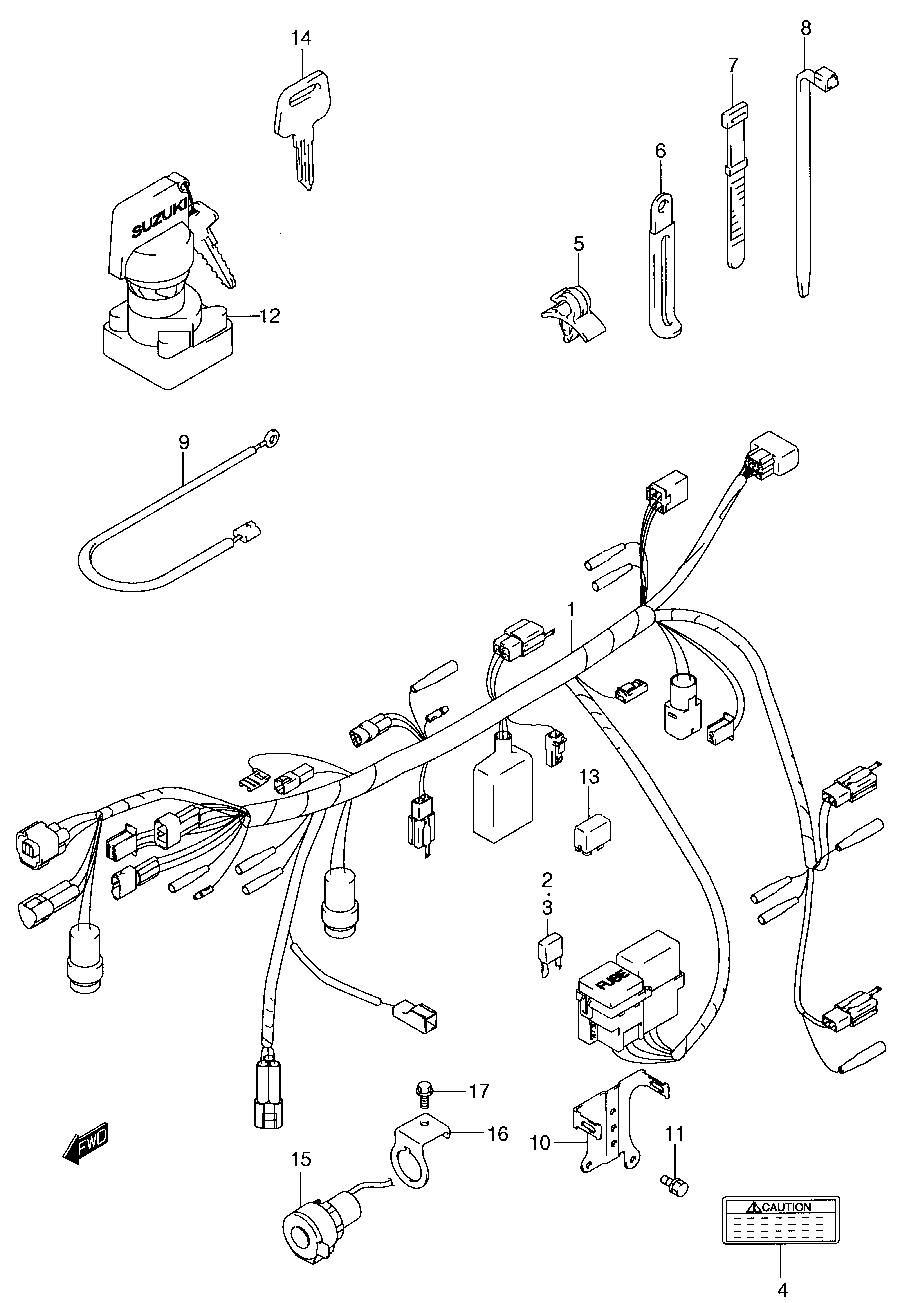

ELECTRICAL - WIRING HARNESS для Suzuki LT-A500FY 4X4 - 2000 года выпуска
-
№АртикулНазвание
-
1-136610-09F30 WIRING HARNESSWIRING HARNESS
-
209481-10501 ...FUSE (10A)...FUSE (10A)
-
309481-20501 ...FUSE (20A)...FUSE (20A)
-
4-138852-09F00 LABEL, CAUTION MAX AMPLABEL, CAUTION MAX AMP
-
4-338852-09FA0 LABEL, CAUTION MAX AMP (CANADA)LABEL, CAUTION MAX AMP (CANADA)
-
509403-16307 CLAMPCLAMP
-
609404-06432 CLAMP (L:65)CLAMP (L:65)
-
709407-12402 CLAMPCLAMP
-
8-109407-14403 CLAMP (L:125)CLAMP (L:125)
-
8-309407-18402 CLAMP (L:165)CLAMP (L:165)
-
936851-05D00 WIRE, IGNITION COILWIRE, IGNITION COIL
-
1036744-09F00 BRACKET, FUSE BOXBRACKET, FUSE BOX
-
1109117-05001 BOLT (5X10)BOLT (5X10)
-
1237110-09F00 SWITCH ASSY., IGNITIONSWITCH ASSY., IGNITION
-
1338730-09F00 RELAY, NEUTRAL STARTRELAY, NEUTRAL START
-
14-137146-19B00 KEY, BLANK (TYPE:C) (OPT)KEY, BLANK (TYPE:C) (OPT)
-
14-237146-19B10 KEY, BLANK (TYPE:D) (OPT)KEY, BLANK (TYPE:D) (OPT)
-
14-337146-19B20 KEY, BLANK (TYPE:E) (OPT)KEY, BLANK (TYPE:E) (OPT)
-
14-437146-19B30 KEY, BLANK (TYPE:F) (OPT)KEY, BLANK (TYPE:F) (OPT)
-
1538850-09F00 TERMINAL, POWER SOURCETERMINAL, POWER SOURCE
-
1638855-09F00 BRACKET, POWER SOURCEBRACKET, POWER SOURCE
-
1701550-06103 BOLTBOLT
