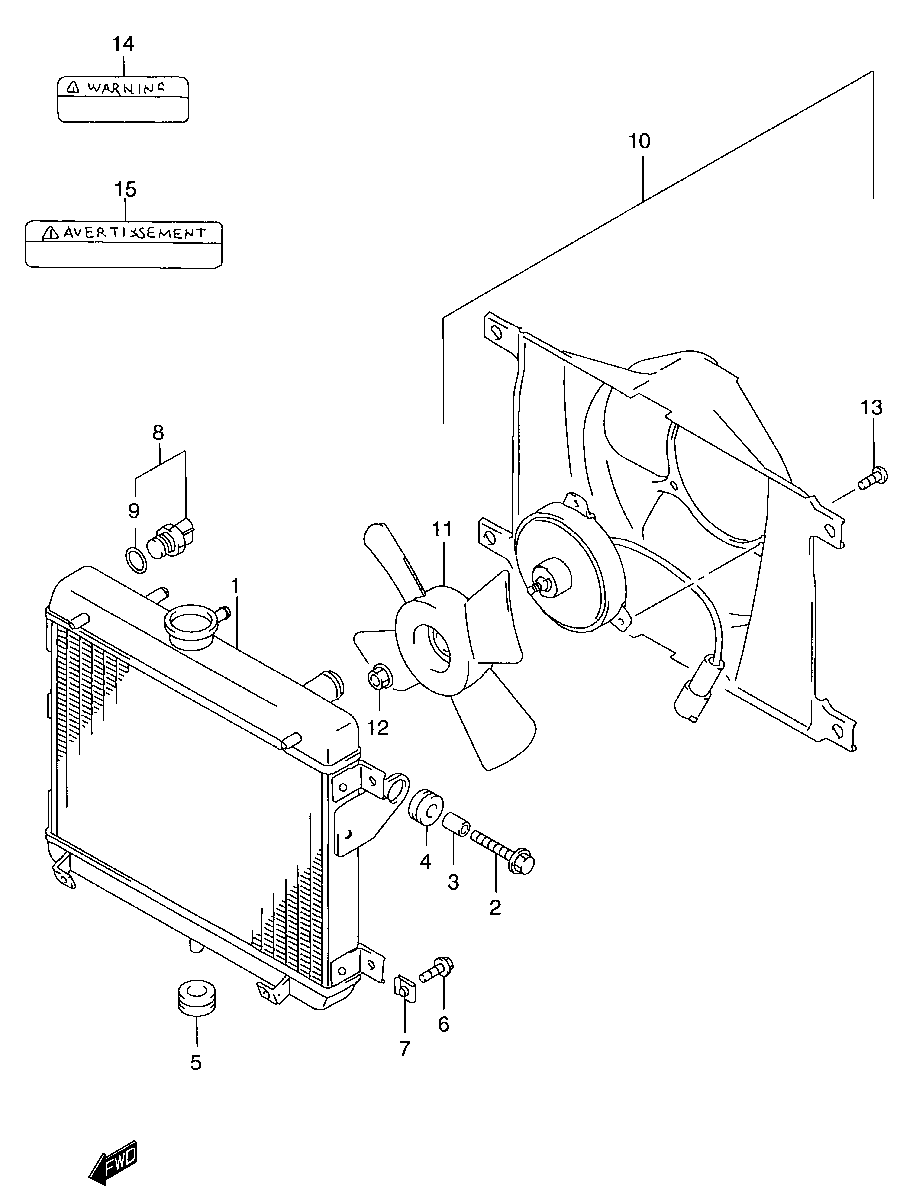

RADIATOR для Suzuki LT-A500FY 4X4 - 2000 года выпуска
-
№АртикулНазвание
-
117710-09F00 RADIATOR ASSY., WATERRADIATOR ASSY., WATER
-
209116-06131 BOLT (6X25)BOLT (6X25)
-
309180-06290 SPACERSPACER
-
409320-10042 CUSHIONCUSHION
-
509320-12053 CUSHION (LOWER)CUSHION (LOWER)
-
601550-06123 BOLTBOLT
-
709148-06015 NUTNUT
-
817680-50F70 SWITCH, RADIATOR FANSWITCH, RADIATOR FAN
-
917689-50F00 ...O-RING...O-RING
-
1017800-09F00 FAN ASSY., RADIATORFAN ASSY., RADIATOR
-
1117820-09F00 ...FAN, RADIATOR...FAN, RADIATOR
-
1217821-09F00 ...NUT...NUT
-
1302112-15123 ...SCREW...SCREW
-
1417991-02F00 LABEL, COOLING FANLABEL, COOLING FAN
-
1517991-02F10 LABEL, COOLING FAN (CANADA)LABEL, COOLING FAN (CANADA)
