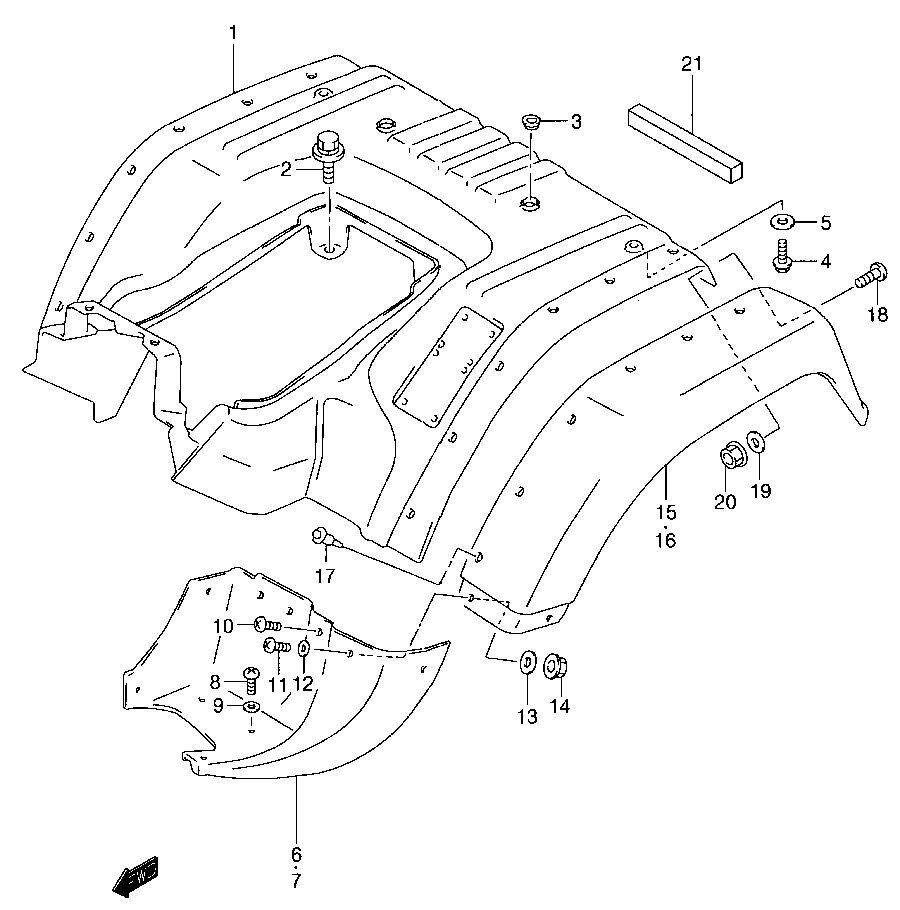

FENDER - REAR для Suzuki LT-F250Y QUADRUNNER - 2000 года выпуска
-
№АртикулНазвание
-
1-163111-39DA0-Y9P FENDER (REAR) (RED)FENDER (REAR) (RED)
-
209118-06006 BOLTBOLT
-
309308-25003 GROMMETGROMMET
-
401570-06163 BOLTBOLT
-
509169-06045 WASHERWASHER
-
663330-39DA0-291 MUDGUARD (FRONT) (RIGHT) (BLACK)MUDGUARD (FRONT) (RIGHT) (BLACK)
-
763341-39DA0-291 MUDGUARD (FRONT) (LEFT) (BLACK)MUDGUARD (FRONT) (LEFT) (BLACK)
-
809139-05040 SCREW (LOWER)SCREW (LOWER)
-
909160-08123 WASHERWASHER
-
1009136-05038 SCREW, (FRONT)SCREW, (FRONT)
-
1109139-05037 SCREWSCREW
-
1209160-08123 WASHERWASHER
-
1309160-05046 WASHER, (INNER)WASHER, (INNER)
-
14-109159-05026 NUTNUT
-
1563351-39DA0-291 MUDGUARD (REAR) (RIGHT) (BLACK)MUDGUARD (REAR) (RIGHT) (BLACK)
-
1663361-39DA0-291 MUDGUARD (REAR) (LEFT) (BLACK)MUDGUARD (REAR) (LEFT) (BLACK)
-
1709409-07333 CLIPCLIP
-
1809136-05038 SCREW (REAR)SCREW (REAR)
-
1909160-05046 WASHERWASHER
-
20-109159-05026 NUTNUT
-
2147161-29B00 CUSHIONCUSHION
