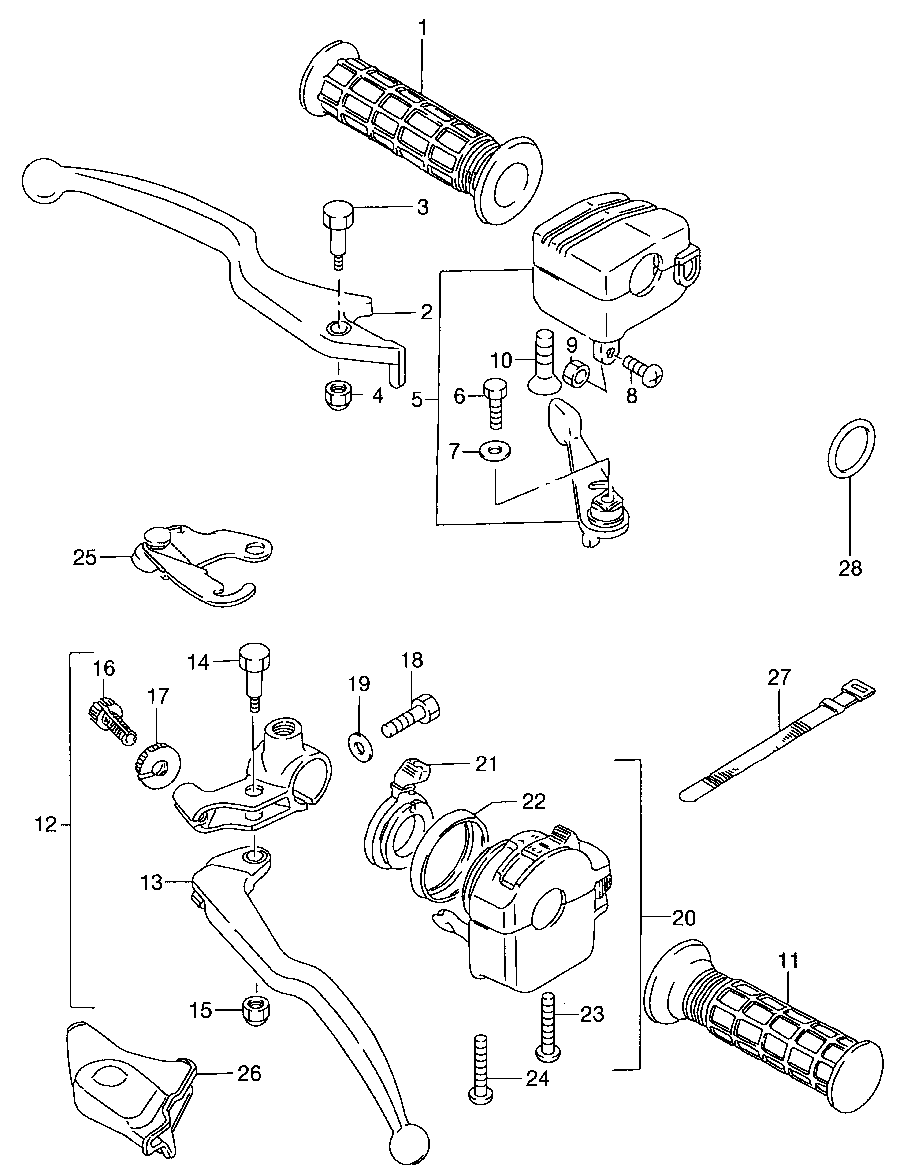

HANDLEBAR - LEVERS / SWITCHES для Suzuki LT-F250Y QUADRUNNER - 2000 года выпуска
-
№АртикулНазвание
-
157211-19A03-291 GRIP (BLACK)GRIP (BLACK)
-
257421-39D10 LEVER, BRAKELEVER, BRAKE
-
357431-13030 BOLTBOLT
-
457433-09F00 NUTNUT
-
5-257100-39DB0 CASE ASSY., THROTTLECASE ASSY., THROTTLE
-
601500-06167 ...BOLT...BOLT
-
708321-01067 ...LOCK WASHER...LOCK WASHER
-
809125-05066 ...SCREW...SCREW
-
909140-05006 ...NUT...NUT
-
1002132-05307 ...SCREW...SCREW
-
1157211-19A03-291 GRIP (BLACK)GRIP (BLACK)
-
1257500-24502 LEVER ASSY., BRAKE (REAR)LEVER ASSY., BRAKE (REAR)
-
1357620-24501 ...LEVER...LEVER
-
1457431-29502 ...BOLT...BOLT
-
1508319-21063 ...NUT...NUT
-
1657441-44400 ...ADJUSTER...ADJUSTER
-
1757442-44400 ...NUT...NUT
-
1801500-06203 ...BOLT...BOLT
-
1908322-01063 ...WASHER...WASHER
-
2037400-19B11 SWITCH ASSY., (LEFT)SWITCH ASSY., (LEFT)
-
2137571-19B01 ...LEVER, CHOKE...LEVER, CHOKE
-
2237576-19B01 ...COVER, CHOKE...COVER, CHOKE
-
2302112-05407 ...SCREW...SCREW
-
2402112-05457 ...SCREW...SCREW
-
2557790-19B00 STOPPER, BRAKESTOPPER, BRAKE
-
2657541-29501 COVER, BRAKE DUSTCOVER, BRAKE DUST
-
2709407-12402 BANDBAND
-
2809280-24009 O-RINGO-RING
