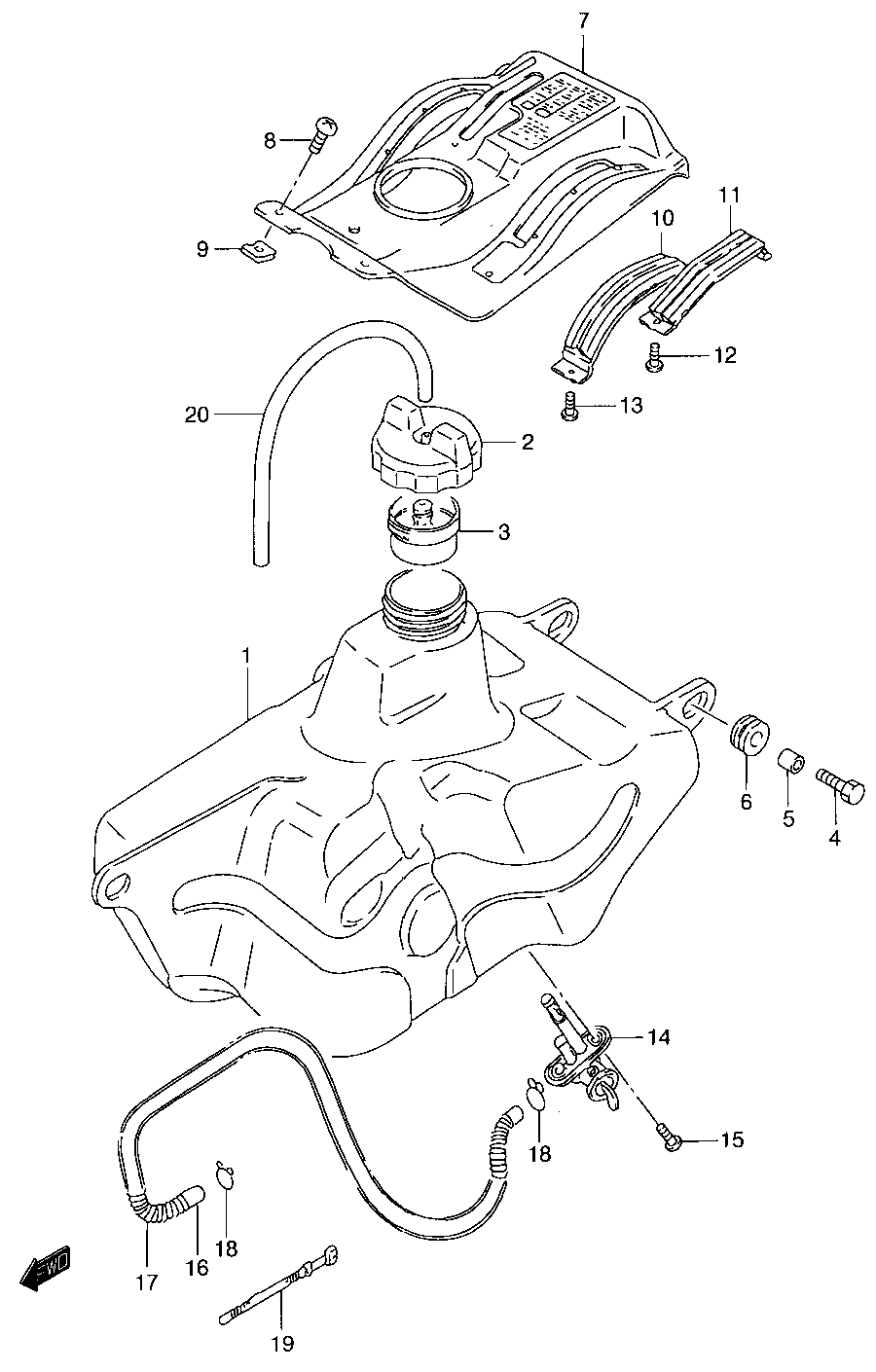

FUEL TANK для Suzuki LT-F250Y QUADRUNNER - 2000 года выпуска
-
№АртикулНазвание
-
1-144110-19B00 TANK, FUELTANK, FUEL
-
244200-20B00 CAP, FUEL TANKCAP, FUEL TANK
-
344199-19A00 TUBE, INLETTUBE, INLET
-
4-109118-08121 BOLTBOLT
-
509180-08209 SPACERSPACER
-
609320-12016 CUSHIONCUSHION
-
744271-39DB0 COVER, FUEL TANKCOVER, FUEL TANK
-
803241-15163 SCREWSCREW
-
909148-05038 NUTNUT
-
1057950-20B00 PLATE, LEVER SEAL (RIGHT)PLATE, LEVER SEAL (RIGHT)
-
1144310-19B00 PLATE, REVERSE LEVER SEALPLATE, REVERSE LEVER SEAL
-
1203211-04103 SCREWSCREW
-
1303511-04103 SCREWSCREW
-
14-144300-19B22 COCK ASSY., FUELCOCK ASSY., FUEL
-
1502112-36163 SCREWSCREW
-
16-109355-50105-600 HOSE, FUEL (L:600X280)HOSE, FUEL (L:600X280)
-
1709440-13051 SPRINGSPRING
-
18-209401-10403 CLIPCLIP
-
1909407-14403 CLAMPCLAMP
-
2009352-50823-600 HOSE, BREATHER (L:600?260)HOSE, BREATHER (L:600?260)
