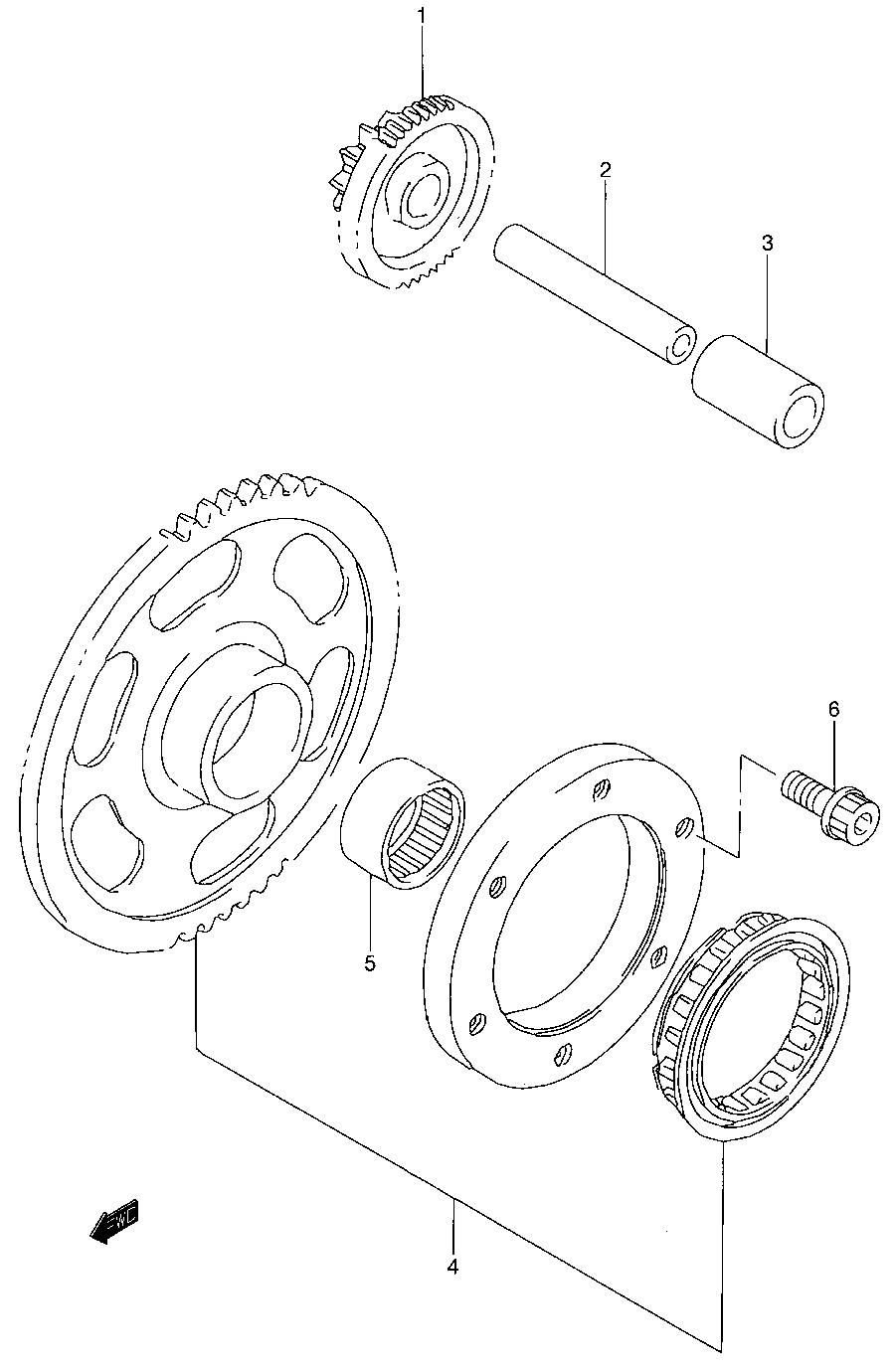

STARTER CLUTCH для Suzuki LT-F250Y QUADRUNNER - 2000 года выпуска
-
№АртикулНазвание
-
112611-19B00 GEAR, STARTER IDLE (NT:13/49)GEAR, STARTER IDLE (NT:13/49)
-
209206-13016 PINPIN
-
309180-13009 SPACERSPACER
-
412600-19810 CLUTCH SET, STARTERCLUTCH SET, STARTER
-
509263-25049 ...BEARING (25X31X19)...BEARING (25X31X19)
-
607130-08163 BOLT (8X16)BOLT (8X16)
