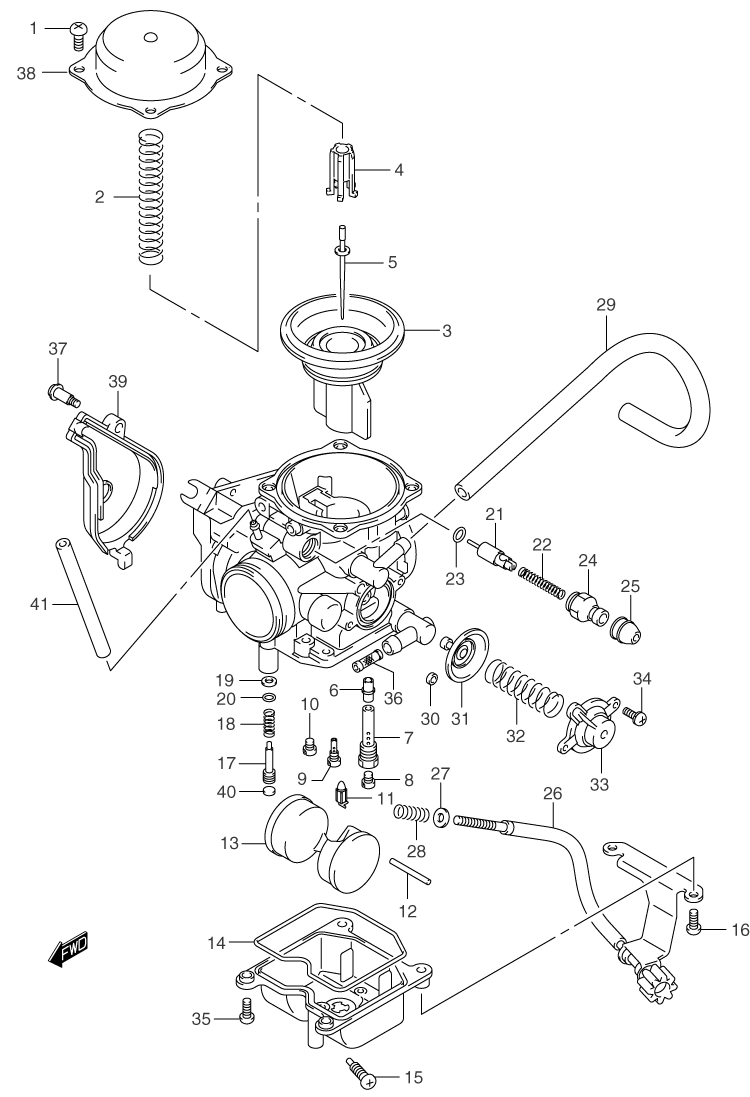

CARBURETOR для Suzuki LT-A500FK VINSON 4x4 - 2002 года выпуска
-
№АртикулНазвание
-
13200-03G00 CARBURETOR ASSY. (EXCEPT CALIF.)CARBURETOR ASSY. (EXCEPT CALIF.)
-
13200-03G10 CARBURETOR ASSY. (CALIF. ONLY)CARBURETOR ASSY. (CALIF. ONLY)
-
113602-43E00 ...SCREW...SCREW
-
213503-03G00 ...SPRING...SPRING
-
313501-15F00 ...VALVE, PISTON...VALVE, PISTON
-
413504-15F00 ...SEAT...SEAT
-
513383-03G00 ...NEEDLE, JET...NEEDLE, JET
-
613341-03G00 ...JET, NEEDLE...JET, NEEDLE
-
713342-15F10 ...HOLDER...HOLDER
-
809491-25021 ...JET, MAIN (#128)...JET, MAIN (#128)
-
909492-35020 ...JET, PILOT (#35)...JET, PILOT (#35)
-
1009491-52009 ...JET, STARTER (#52)...JET, STARTER (#52)
-
1113370-29F00 ...VALVE ASSY., NEEDLE...VALVE ASSY., NEEDLE
-
1213254-26E00 ...PIN...PIN
-
1313250-26E00 ...FLOAT ASSY....FLOAT ASSY.
-
1413258-26E00 ...O-RING...O-RING
-
1513247-43E00 ...DRAIN SCREW...DRAIN SCREW
-
1613602-26E10 ...SCREW...SCREW
-
1713279-03FA0 ...ADJUST SCREW...ADJUST SCREW
-
1813268-26E00 ...SPRING...SPRING
-
1913291-26E00 ...WASHER...WASHER
-
2013295-26E00 ...O-RING...O-RING
-
2113411-03G00 ...STARTER VALVE...STARTER VALVE
-
2213417-03G00 ...SPRING...SPRING
-
2313438-03G00 ...O-RING...O-RING
-
2413418-03G00 ...HOLDER...HOLDER
-
2513681-28E00 ...CAP...CAP
-
2613270-03G00 ...CABLE ADJUSTER ASSY....CABLE ADJUSTER ASSY.
-
2713273-03G00 ...WASHER...WASHER
-
2813268-35F00 ...SPRING...SPRING
-
2913274-03G00 ...HOSE (400+50)...HOSE (400+50)
-
3013486-15F00 ...U RING...U RING
-
3113480-38F00 ...DIAPHRAGM...DIAPHRAGM
-
3213481-15F00 ...COVER...COVER
-
3313484-15F00 ...COVER...COVER
-
3413601-15F10 ...SCREW...SCREW
-
3513601-15F00 ...SCREW...SCREW
-
3613314-03G00 ...FUEL STRAINER...FUEL STRAINER
-
3713601-11F00 ...SCREW...SCREW
-
3813502-03G00 ...COVER, DIAPHRAGM...COVER, DIAPHRAGM
-
3913578-03G00 ...COVER...COVER
-
4013281-26E00 ...PLUG (CALIF. ONLY)...PLUG (CALIF. ONLY)
-
4109355-50105-600 HOSE, FUEL COCK VACUUM (L:600->100)HOSE, FUEL COCK VACUUM (L:600->100)
