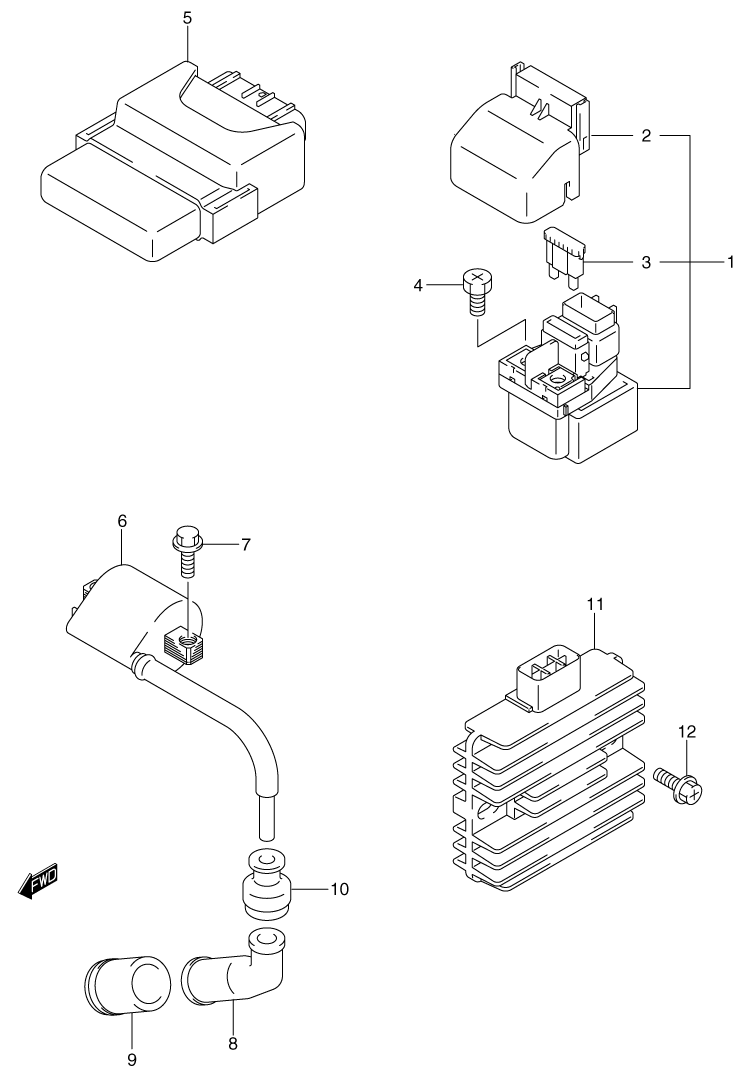

ELECTRICAL для Suzuki LT-A500FK VINSON 4x4 - 2002 года выпуска
-
№АртикулНазвание
-
131800-03G00 RELAY ASSY., STARTING MOTORRELAY ASSY., STARTING MOTOR
-
231861-26E00 ...COVER, STARTER RELAY...COVER, STARTER RELAY
-
309481-30101 ...FUSE, 30A...FUSE, 30A
-
409128-06013 BOLT, STARTING MOTOR TERMBOLT, STARTING MOTOR TERM
-
532900-09F60 CDI UNITCDI UNIT
-
633410-09F00 COIL ASSY., IGNITIONCOIL ASSY., IGNITION
-
701550-06203 BOLTBOLT
-
833510-43010 CAP, SPARK PLUGCAP, SPARK PLUG
-
933541-44D00 SEAL, SPARK PLUGSEAL, SPARK PLUG
-
1033542-38B00 SEAL, HIGH TENSION CORDSEAL, HIGH TENSION CORD
-
1132800-42F00 RECTIFIER ASSY.RECTIFIER ASSY.
-
1202162-06253 BOLTBOLT
