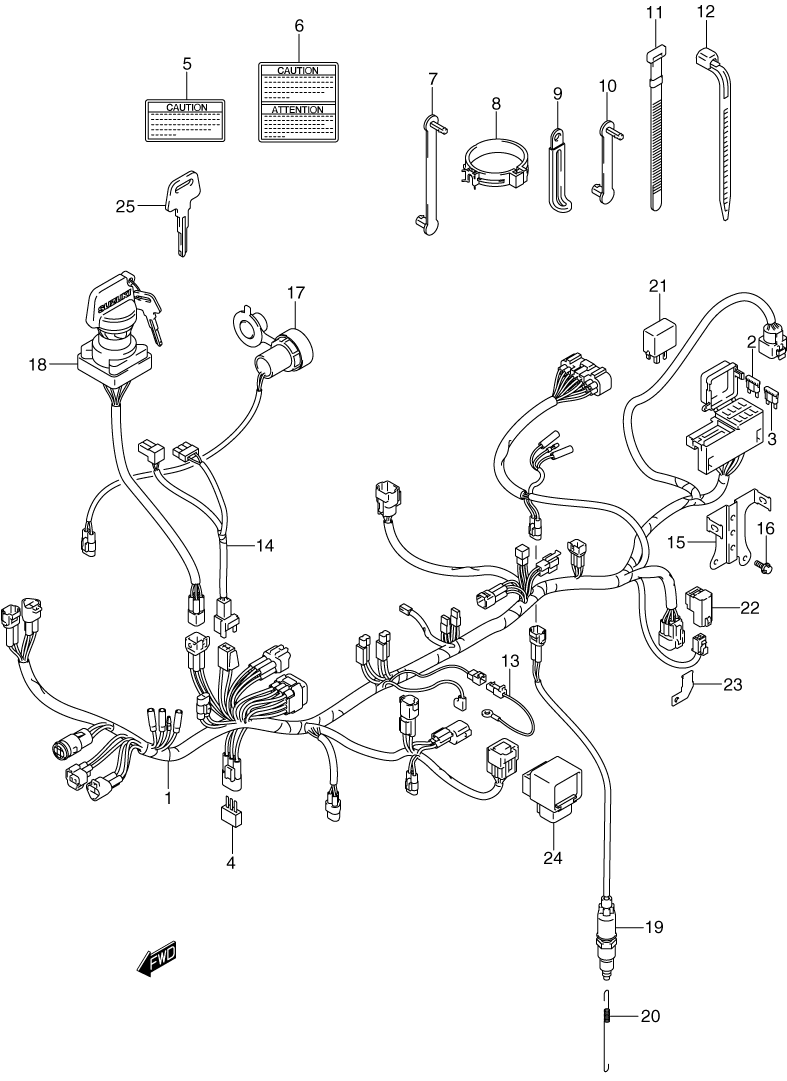

ELECTRICAL - WIRING HARNESS для Suzuki LT-A500FK VINSON 4x4 - 2002 года выпуска
-
№АртикулНазвание
-
136610-03G00 WIRING HARNESSWIRING HARNESS
-
209481-05501 ...FUSE (5A)...FUSE (5A)
-
309481-10501 ...FUSE (10A)...FUSE (10A)
-
436611-38A00 ...DIODE...DIODE
-
538852-09F21 LABEL, CAUTION MAX AMPLABEL, CAUTION MAX AMP
-
638852-03G00 LABEL, CAUTION MAX AMP (CANADA)LABEL, CAUTION MAX AMP (CANADA)
-
736651-48E00 CLAMPCLAMP
-
809403-25401 CLAMPCLAMP
-
909404-06432 CLAMP (L:80)CLAMP (L:80)
-
1009407-03401 CLAMPCLAMP
-
1109407-12402 CLAMPCLAMP
-
1209407-14403 CLAMP (L:125)CLAMP (L:125)
-
1336851-05D00 WIRE, IGNITION COILWIRE, IGNITION COIL
-
1436854-03G00 WIRE, FRONT BRAKE SWITCH LEADWIRE, FRONT BRAKE SWITCH LEAD
-
1536744-09F00 BRACKET, FUSE BOXBRACKET, FUSE BOX
-
1609117-05001 BOLT (5X10)BOLT (5X10)
-
1738850-09F00 TERMINAL, POWER SOURCE (12V80W)TERMINAL, POWER SOURCE (12V80W)
-
1837110-03G00 SWITCH ASSY., IGNITIONSWITCH ASSY., IGNITION
-
1937740-38F00 SWITCH ASSY., STOP LAMPSWITCH ASSY., STOP LAMP
-
2009443-06080 SPRINGSPRING
-
2138730-09F00 RELAY, NEUTRAL STARTRELAY, NEUTRAL START
-
2238740-26E00 RELAY, GEAR IN STARTRELAY, GEAR IN START
-
2338741-09F00 BRACKET, GEAR IN STARTBRACKET, GEAR IN START
-
2438750-03G00 RELAY ASSY., DRIVERELAY ASSY., DRIVE
-
25-137146-19B00 KEY, BLANK (TYPE:C) (OPT)KEY, BLANK (TYPE:C) (OPT)
-
25-237146-19B10 KEY, BLANK (TYPE:D) (OPT)KEY, BLANK (TYPE:D) (OPT)
-
25-337146-19B20 KEY, BLANK (TYPE:E) (OPT)KEY, BLANK (TYPE:E) (OPT)
-
25-437146-19B30 KEY, BLANK (TYPE:F) (OPT)KEY, BLANK (TYPE:F) (OPT)
