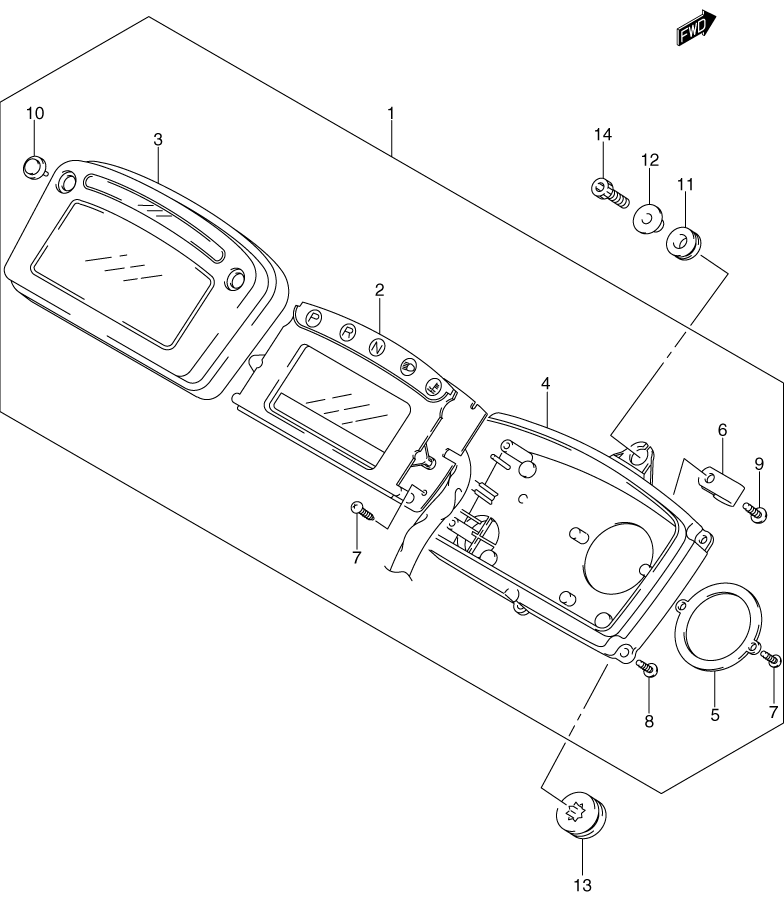

SPEEDOMETER для Suzuki LT-A500FK VINSON 4x4 - 2002 года выпуска
-
№АртикулНазвание
-
1-134100-03G00 SPEEDOMETER ASSY.SPEEDOMETER ASSY.
-
1-234100-03G10 SPEEDOMETER ASSY. (CANADA)SPEEDOMETER ASSY. (CANADA)
-
2-134120-03G00 ...SPEEDOMETER...SPEEDOMETER
-
2-234120-03G10 ...SPEEDOMETER (CANADA)...SPEEDOMETER (CANADA)
-
334150-03G00 ...CASE, UPPER...CASE, UPPER
-
434111-03G00 ...CASE, LOWER...CASE, LOWER
-
534128-03G00 ...BRACKET...BRACKET
-
634176-03G00 ...CLAMP...CLAMP
-
734149-31F10 ...SCREW (3X14)...SCREW (3X14)
-
834149-03G00 ...SCREW (3X14)...SCREW (3X14)
-
902142-04163 ...SCREW...SCREW
-
1034124-24F00 ...SWITCH LEVER...SWITCH LEVER
-
1134995-33E00 ...CUSHION...CUSHION
-
1234187-47F00 SPACERSPACER
-
1334955-13E00 CUSHION, METER NO.1CUSHION, METER NO.1
-
1407130-05203 BOLTBOLT
