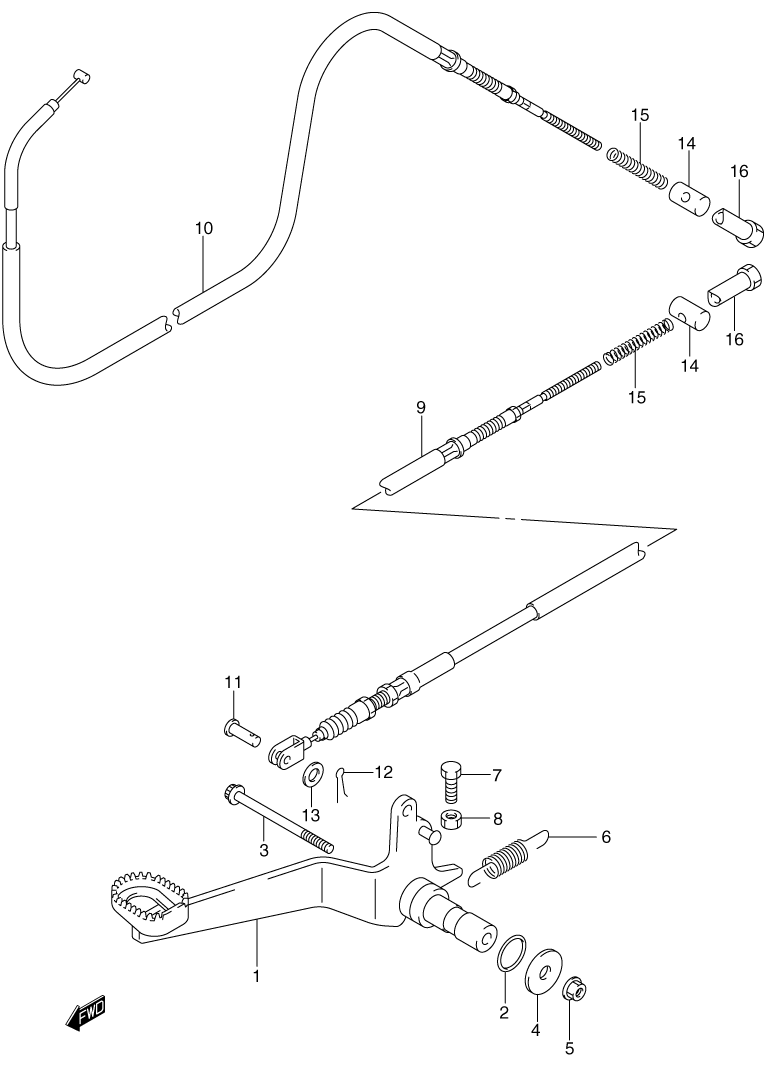

BRAKE - REAR PEDAL для Suzuki LT-F400K EIGER 2WD MANUAL - 2002 года выпуска
-
№АртикулНазвание
-
143110-38F20 PEDAL, BRAKEPEDAL, BRAKE
-
209280-17002 O-RINGO-RING
-
307120-06653 BOLTBOLT
-
409160-06136 WASHERWASHER
-
508319-31063 NUTNUT
-
609443-12019 SPRING, RETURNSPRING, RETURN
-
701500-06203 BOLT, ADJUSTERBOLT, ADJUSTER
-
808310-00063 NUTNUT
-
958510-38F00 CABLE, BRAKE PADALCABLE, BRAKE PADAL
-
1058810-38F00 CABLE, REAR BRAKECABLE, REAR BRAKE
-
1109200-05001 PINPIN
-
1209385-06012 COTTER PINCOTTER PIN
-
1308322-01063 WASHER, PADAL SIDEWASHER, PADAL SIDE
-
1409209-13006 PIN, ADJUSTERPIN, ADJUSTER
-
1509440-08040 SPRINGSPRING
-
1609150-06012 NUTNUT
