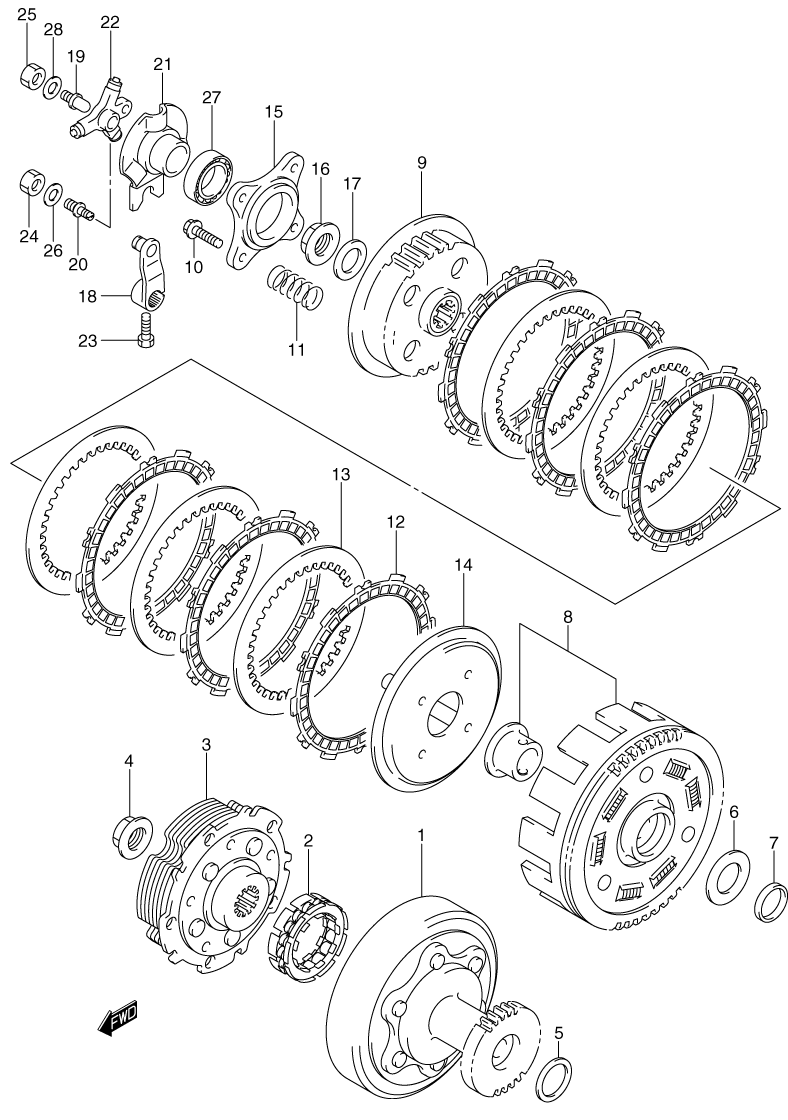

CLUTCH для Suzuki LT-F400K EIGER 2WD MANUAL - 2002 года выпуска
-
№АртикулНазвание
-
121120-38F50 HOUSING, STARTER CLUTCHHOUSING, STARTER CLUTCH
-
221273-44D00 CLUTCH, PRI DRIVE ONE WAYCLUTCH, PRI DRIVE ONE WAY
-
321500-38F50 SHOE, STARTER CLUTCHSHOE, STARTER CLUTCH
-
409159-18020 NUTNUT
-
508211-25363 WASHER, PRIMARY DRIVEWASHER, PRIMARY DRIVE
-
609180-22045 WASHER, PRIMARY DRIVEN THRWASHER, PRIMARY DRIVEN THR
-
708211-22423 WASHER, PRIMARY DRIVENWASHER, PRIMARY DRIVEN
-
821200-38850 GEAR ASSY., PRIMARY DRIVENGEAR ASSY., PRIMARY DRIVEN
-
921411-44D00 HUB, CLUTCH SLEEVEHUB, CLUTCH SLEEVE
-
1009103-06099 BOLT, CLUTCH SPRING (6X25)BOLT, CLUTCH SPRING (6X25)
-
1121413-38F50 SPRING, CLUTCHSPRING, CLUTCH
-
1221441-44D00 PLATE, CLUTCH DRIVEPLATE, CLUTCH DRIVE
-
1321451-44D10 PLATE, CLUTCH DRIVENPLATE, CLUTCH DRIVEN
-
1421462-44D00 DISK, CLUTCH PRESSUREDISK, CLUTCH PRESSURE
-
1521465-44D00 PLATE, CLUTCH RELEASEPLATE, CLUTCH RELEASE
-
1621414-44D00 NUT, CLUTCH SLEEVE HUBNUT, CLUTCH SLEEVE HUB
-
1709164-20007 WASHER, CL SLEEVE HUBWASHER, CL SLEEVE HUB
-
1823220-38F50 ARM, CLUTCH RELEASEARM, CLUTCH RELEASE
-
1923223-44D11 BOLT, CLUTCH RLSE NO.1BOLT, CLUTCH RLSE NO.1
-
2023224-44D00 BOLT, CLUTCH RLSE NO.2BOLT, CLUTCH RLSE NO.2
-
2123230-38F50 GUIDE, CL RELEASE ROLLERGUIDE, CL RELEASE ROLLER
-
2223250-38F50 ROLLER ASSY., CLUTCH RELEASEROLLER ASSY., CLUTCH RELEASE
-
2301500-06203 BOLT, CLUTCH RELEASE ARMBOLT, CLUTCH RELEASE ARM
-
2409140-06023 NUT, CLUTCH RELEASE NO.2NUT, CLUTCH RELEASE NO.2
-
2509140-08005 NUT, CLUTCH RELEASE NO.1NUT, CLUTCH RELEASE NO.1
-
2609160-06079 WASHER, CLUTCH RLSE NO.2 (6.5X16X1.2)WASHER, CLUTCH RLSE NO.2 (6.5X16X1.2)
-
2708113-69050 BEARING, CLUTCH RLSEBEARING, CLUTCH RLSE
-
2809160-08103 WASHER, CLUTCH RLSE NO.1 (8X20X1)WASHER, CLUTCH RLSE NO.1 (8X20X1)
