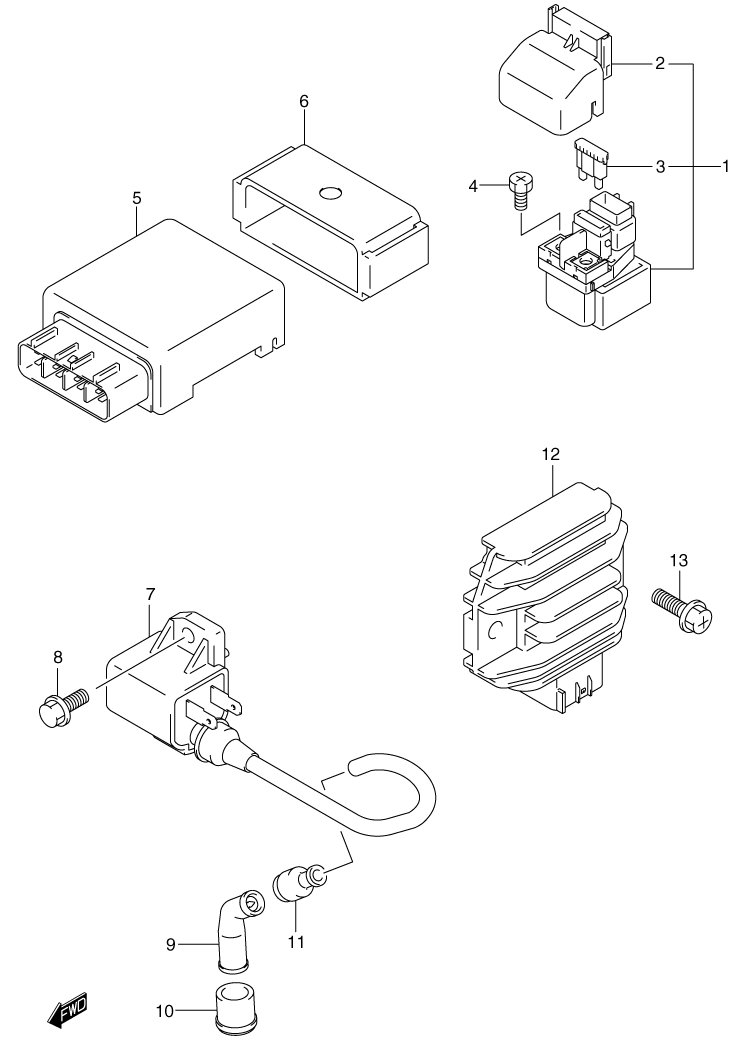

ELECTRICAL для Suzuki LT-F400K EIGER 2WD MANUAL - 2002 года выпуска
-
№АртикулНазвание
-
131800-03G00 RELAY ASSY., STARTING MOTORRELAY ASSY., STARTING MOTOR
-
231861-26E00 ...COVER, STARTER RELAY...COVER, STARTER RELAY
-
309481-30101 ...FUSE, 30A...FUSE, 30A
-
409128-06013 BOLT, STG MOT TERMBOLT, STG MOT TERM
-
532900-38F10 CDI UNITCDI UNIT
-
632980-38F00 CUSHION, CDICUSHION, CDI
-
733410-41D20 COIL ASSY., IGNITIONCOIL ASSY., IGNITION
-
801550-06163 BOLTBOLT
-
933510-43010 CAP, SPARK PLUGCAP, SPARK PLUG
-
1033541-44D00 SEAL, SPARK PLUGSEAL, SPARK PLUG
-
1133542-38B00 SEAL, HIGH TENSION CORDSEAL, HIGH TENSION CORD
-
1232800-38F10 RECTIFIER ASSY.RECTIFIER ASSY.
-
1302162-06253 BOLTBOLT
