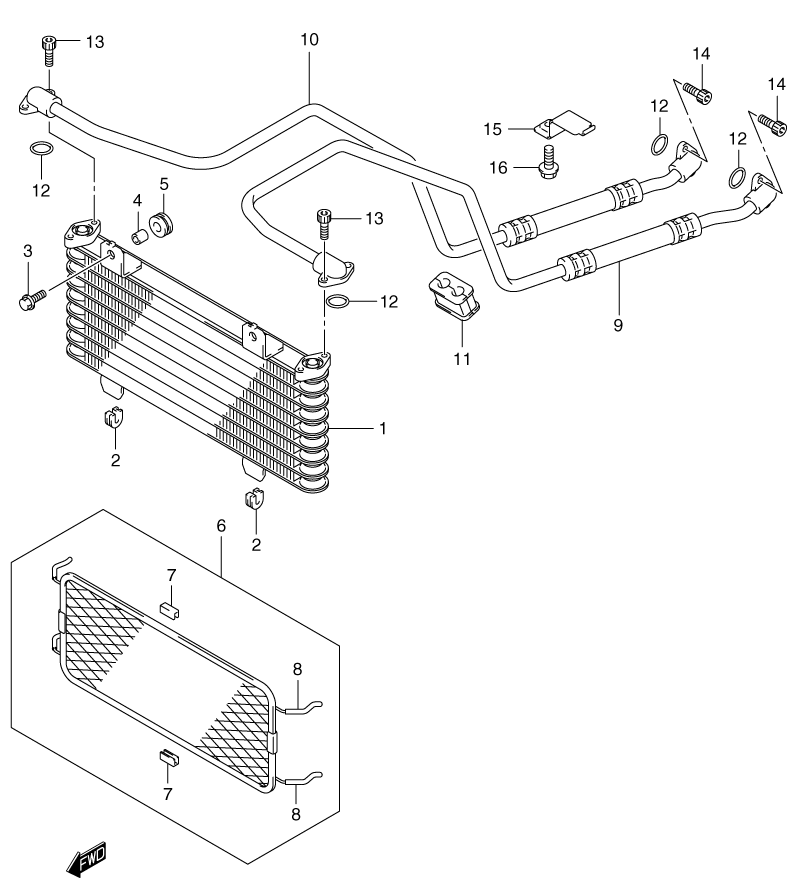

OIL COOLER для Suzuki LT-F400K EIGER 2WD MANUAL - 2002 года выпуска
-
№АртикулНазвание
-
116600-38F00 COOLER ASSY., OILCOOLER ASSY., OIL
-
216628-27A00 CUSHION, OIL COOLERCUSHION, OIL COOLER
-
309116-06167 BOLT (6X20)BOLT (6X20)
-
409180-06310 SPACER (6.5X10X10)SPACER (6.5X10X10)
-
509320-10015 CUSHIONCUSHION
-
616650-38F00 GUARD, OIL COOLERGUARD, OIL COOLER
-
717765-09F00 ...PROTECTOR, CTR...PROTECTOR, CTR
-
809352-30503-600 ...PROTECTOR (L:600->40)...PROTECTOR (L:600->40)
-
916460-38F00 HOSE, OIL COOLER INLETHOSE, OIL COOLER INLET
-
1016470-38F00 HOSE, OIL COOLER OUTLETHOSE, OIL COOLER OUTLET
-
1116468-38F00 GROMMET, OIL HOSEGROMMET, OIL HOSE
-
1209280-12008 O-RING (D:2.4,ID:12.3)O-RING (D:2.4,ID:12.3)
-
1307130-06163 BOLTBOLT
-
1409106-06073 BOLT, LOWERBOLT, LOWER
-
1516490-38F00 CLAMP, OIL HOSECLAMP, OIL HOSE
-
1601550-06123 BOLTBOLT
