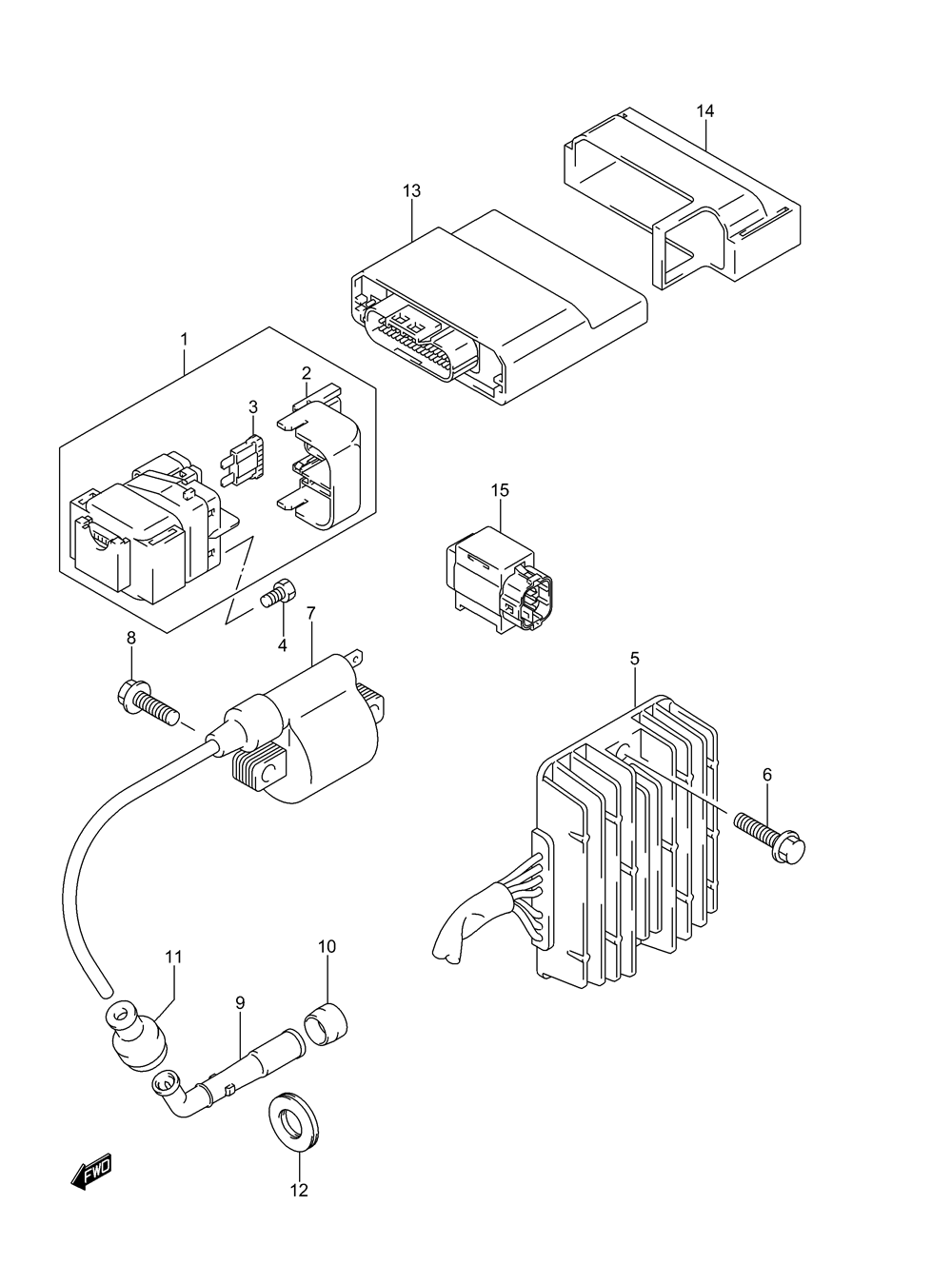

ELECTRICAL (UP TO F.NO.5SAAP41A67110000) для Suzuki LT-A700X KINGQUAD 4x4 - 2006 года выпуска
-
№АртикулНазвание
-
131800-35F00 RELAY ASSY, STARTING MOTRELAY ASSY, STARTING MOT
-
231861-26E00 COVER, STARTER RELAYCOVER, STARTER RELAY
-
309481-30101 FUSE (30A)FUSE (30A)
-
409128-06013 BOLT, STARTING MOTOR (6X8)BOLT, STARTING MOTOR (6X8)
-
532800-41F10 RECTIFIER ASSYRECTIFIER ASSY
-
602162-06253 BOLT, RECTIFIERBOLT, RECTIFIER
-
733410-19B10 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
801550-06203 BOLT, IGNITION COILBOLT, IGNITION COIL
-
933510-17G00 CAP ASSY, SPARK PLUGCAP ASSY, SPARK PLUG
-
1033541-23E01 SEAL, SPARK PLUG CAPSEAL, SPARK PLUG CAP
-
1133542-38B00 SEAL, HIGH TENSION CORDSEAL, HIGH TENSION CORD
-
1233543-33E01 COVER, SPARK PLUG CAPCOVER, SPARK PLUG CAP
-
1332920-31GA0 CONTROL UNIT, FICONTROL UNIT, FI
-
1432980-31G00 HOLDER, FI CONTROL UNITHOLDER, FI CONTROL UNIT
-
1533960-06G10 SENSOR ASSY, FUEL CUTSENSOR ASSY, FUEL CUT
