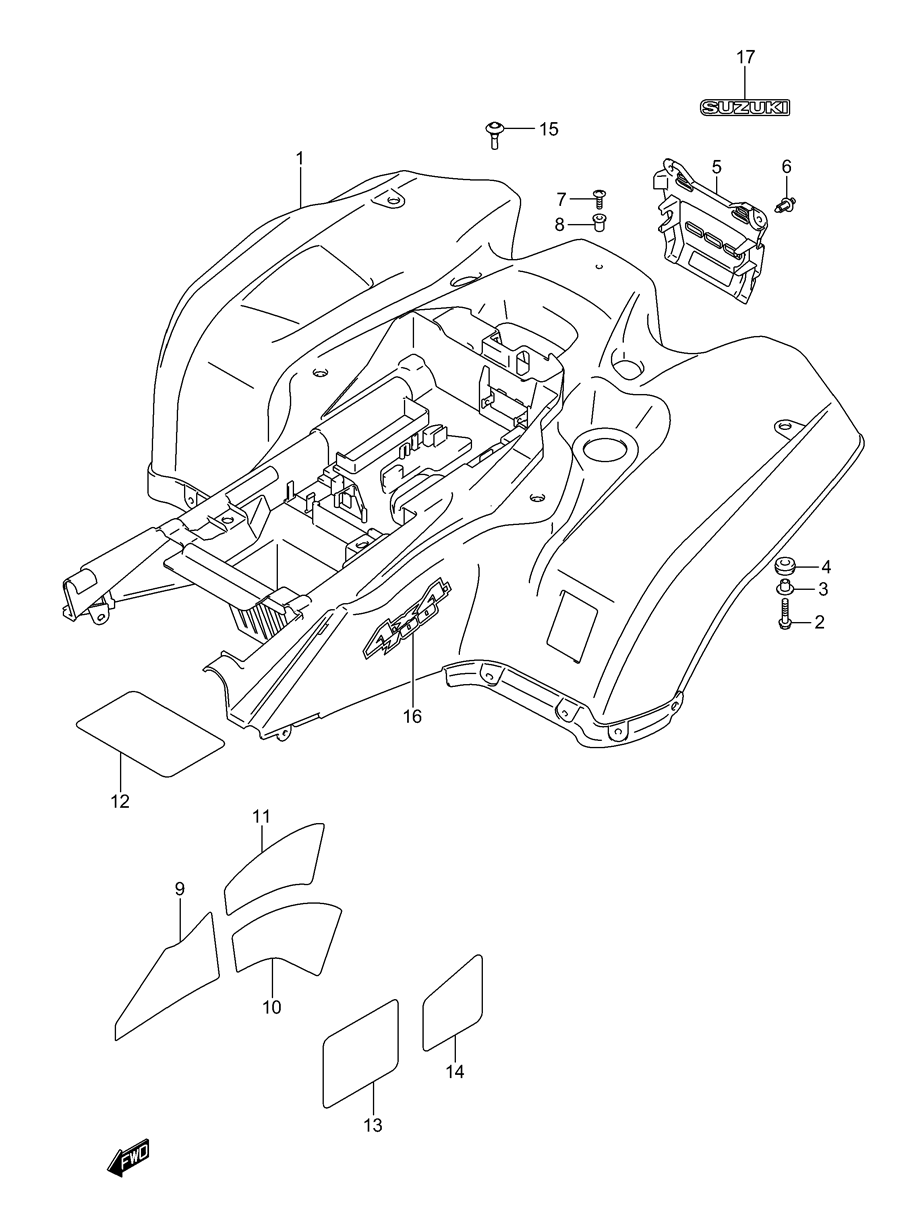

FENDER - REAR для Suzuki LT-A700X KINGQUAD 4x4 - 2006 года выпуска
-
№АртикулНазвание
-
163111-31G00-YT9 FENDER, REAR (RED, YT9)FENDER, REAR (RED, YT9)
-
163111-31G00-019 FENDER, REAR (BLACK, 019)FENDER, REAR (BLACK, 019)
-
163111-31G00-YLG FENDER, REAR (GREEN, YLG)FENDER, REAR (GREEN, YLG)
-
163111-31GC0-YKL FENDER, REAR (CAMOUFLAGE, YKL)FENDER, REAR (CAMOUFLAGE, YKL)
-
201550-06253 BOLT, SIDEBOLT, SIDE
-
309169-06074 SPACERSPACER
-
409320-11019 CUSHIONCUSHION
-
563251-31G00 COVER, REARCOVER, REAR
-
609409-07333 CLIPCLIP
-
702142-05203 SCREW (5 X 20)SCREW (5 X 20)
-
809159-05019 NUTNUT
-
963122-31G00 SHIELD, REAR FENDERSHIELD, REAR FENDER
-
1063123-31G00 SHIELD, REAR FENDERSHIELD, REAR FENDER
-
1163124-31G00 SHIELD, REAR FENDERSHIELD, REAR FENDER
-
1263128-31G00 SHIELD, REAR FENDERSHIELD, REAR FENDER
-
1363126-31G00 SHIELD, REAR FENDERSHIELD, REAR FENDER
-
1463127-31G00 SHIELD, REAR FENDERSHIELD, REAR FENDER
-
1593115-03G00 PLUGPLUG
-
1668171-31G20-CFN EMBLEM, SIDE (NON CAMO)EMBLEM, SIDE (NON CAMO)
-
1668171-31GB0-CFN EMBLEM, SIDE (FOR CAMO)EMBLEM, SIDE (FOR CAMO)
-
1768171-31G00-20H EMBLEM, REAR (SILVER) (NON CAMO)EMBLEM, REAR (SILVER) (NON CAMO)
-
1768171-31GA0-20H EMBLEM, REAR (SILVER) (FOR CAMO)EMBLEM, REAR (SILVER) (FOR CAMO)
