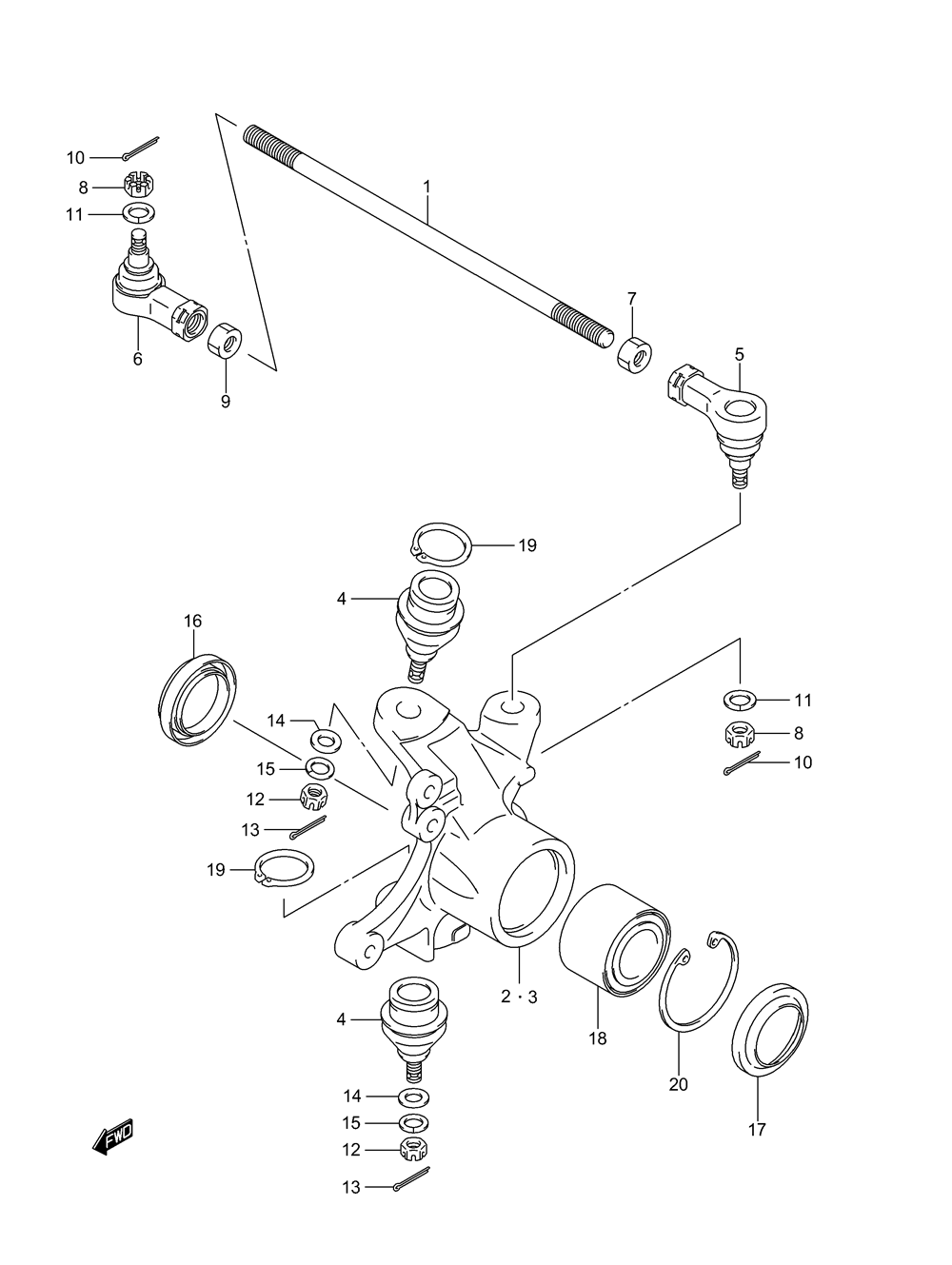

STEERING KNUCKLE W/ TIE RODS для Suzuki LT-A700X KINGQUAD 4x4 - 2006 года выпуска
-
№АртикулНазвание
-
151281-31G01 TIE ROD, STEERINGTIE ROD, STEERING
-
251231-31G00 KNUCKLE, STEERING RIGHT HAND (UP TO SERIAL 5SAAP41A67110000)KNUCKLE, STEERING RIGHT HAND (UP TO SERIAL 5SAAP41A67110000)
-
251231-31G10 KNUCKLE, STEERING RIGHT HAND (SERIAL 5SAAP41A67110001 AND UP)KNUCKLE, STEERING RIGHT HAND (SERIAL 5SAAP41A67110001 AND UP)
-
351241-31G00 KNUCKLE, STEERING LEFT HAND (UP TO SERIAL 5SAAP41A67110000)KNUCKLE, STEERING LEFT HAND (UP TO SERIAL 5SAAP41A67110000)
-
351241-31G10 KNUCKLE, STEERING LEFT HAND (SERIAL 5SAAP41A67110001 AND UP)KNUCKLE, STEERING LEFT HAND (SERIAL 5SAAP41A67110001 AND UP)
-
451210-31G00 END, KNUCKLE STEERING (UP TO SERIAL 5SAAP41A67110000)END, KNUCKLE STEERING (UP TO SERIAL 5SAAP41A67110000)
-
451210-31G10 END, KNUCKLE STEERING (SERIAL 5SAAP41A67110001 AND UP)END, KNUCKLE STEERING (SERIAL 5SAAP41A67110001 AND UP)
-
551260-31G00 ROD, END, R (UP TO SERIAL 5SAAP41A67110000)ROD, END, R (UP TO SERIAL 5SAAP41A67110000)
-
551260-31G10 ROD, END, R (SERIAL 5SAAP41A67110001 AND UP)ROD, END, R (SERIAL 5SAAP41A67110001 AND UP)
-
651270-31G00 ROD, END, L (UP TO SERIAL 5SAAP41A67110000)ROD, END, L (UP TO SERIAL 5SAAP41A67110000)
-
651270-31G10 ROD, END, L (SERIAL 5SAAP41A67110001 AND UP)ROD, END, L (SERIAL 5SAAP41A67110001 AND UP)
-
709140-12030 NUT, TIE ROD (RIGHT HAND THREAD)NUT, TIE ROD (RIGHT HAND THREAD)
-
808314-40103 NUT, ROD ENDNUT, ROD END
-
909140-12035 NUT, TIE ROD (LEFT HAND THREAD)NUT, TIE ROD (LEFT HAND THREAD)
-
1004111-20208 COTTER PIN, ROD ENDCOTTER PIN, ROD END
-
1109162-10008 WASHER, ROD ENDWASHER, ROD END
-
1208314-40103 NUT, KNUCKLE ENDNUT, KNUCKLE END
-
1304111-20208 PIN, KNUCKLE END COTTERPIN, KNUCKLE END COTTER
-
1408322-01103 WASHER, KNUCKLE ENDWASHER, KNUCKLE END
-
1509162-10008 WASHER, KNUCKLE END LOCKWASHER, KNUCKLE END LOCK
-
1609283-38012 DUST SEAL, INNER (38X55X8)DUST SEAL, INNER (38X55X8)
-
1709285-38002 DUST SEAL, OUTER (38X55X6)DUST SEAL, OUTER (38X55X6)
-
1851259-31G00 BEARINGBEARING
-
1908331-31306 CIRCLIPCIRCLIP
-
2008331-41559 CLIPCLIP
