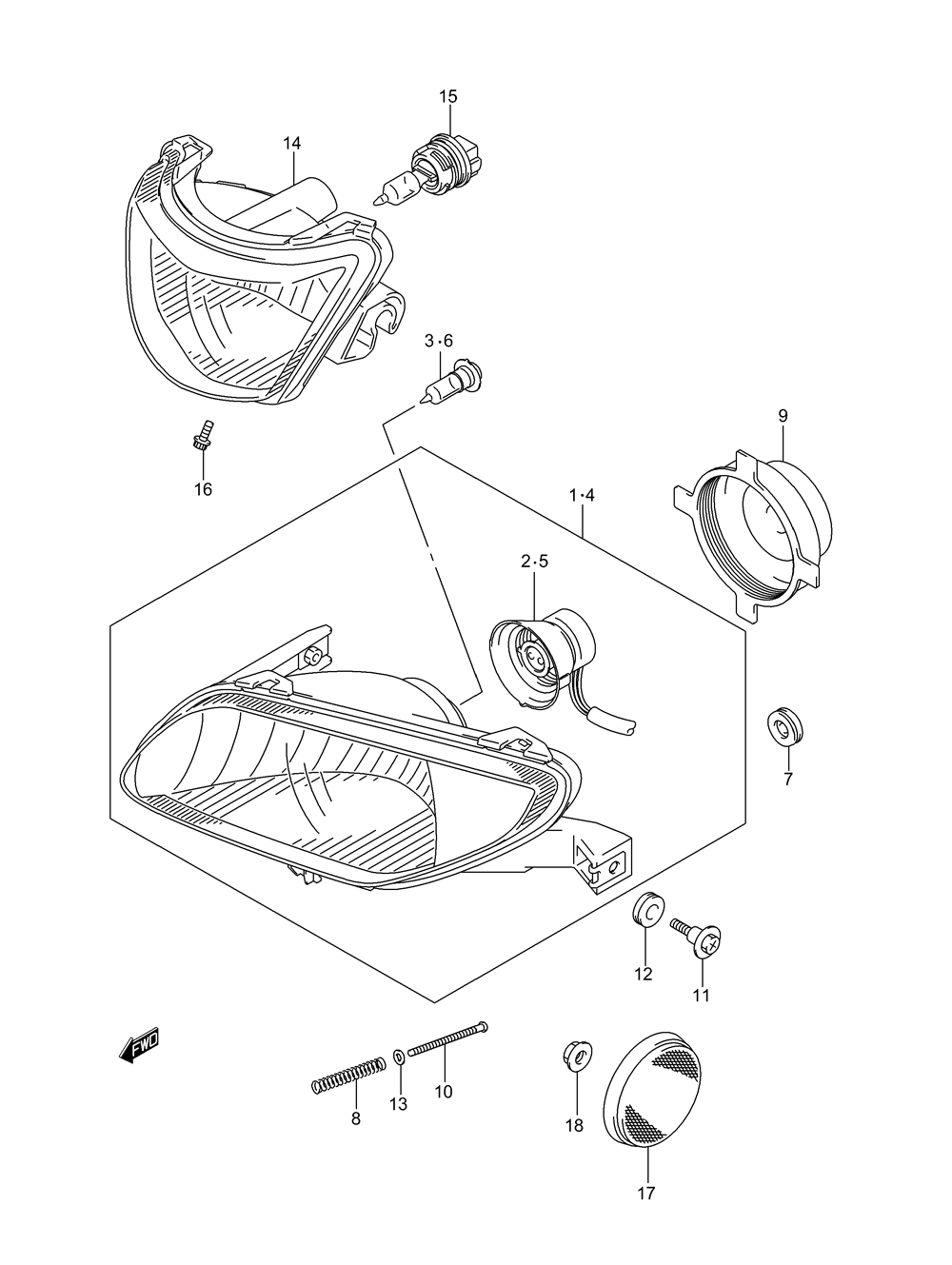

HEADLAMP (UP TO F.NO. 5SAAP41A 67110000) для Suzuki LT-A700X KINGQUAD 4x4 - 2006 года выпуска
-
№АртикулНазвание
-
135100-31G00-999 HEADLAMP ASSY, RIGHTHEADLAMP ASSY, RIGHT
-
235171-31GR0 CORD ASSY, RIGHTCORD ASSY, RIGHT
-
309471-12097 BULB (14V30/30W)BULB (14V30/30W)
-
435300-31G00-999 HEADLAMP ASSY, LEFTHEADLAMP ASSY, LEFT
-
535171-31GL0 CORD ASSY, LEFTCORD ASSY, LEFT
-
609471-12097 BULB (14V30/30W)BULB (14V30/30W)
-
709308-07011 GROMMET, HEADLAMP HOUSINGGROMMET, HEADLAMP HOUSING
-
835154-31300 SPRING, HEADLAMP ADJUSTSPRING, HEADLAMP ADJUST
-
935174-31G00 COVER, HEADLAMP HOUSINGCOVER, HEADLAMP HOUSING
-
1009125-04031 SCREW, HEADLAMP ADJUSTSCREW, HEADLAMP ADJUST
-
1109139-06118 SCREW, HEADLAMPSCREW, HEADLAMP
-
1209320-10501 CUSHION, HEADLAMPCUSHION, HEADLAMP
-
1308322-01043 WASHER, HEADLAMPWASHER, HEADLAMP
-
1435100-31GA0-999 HEADLAMP ASSY, AUXHEADLAMP ASSY, AUX
-
1509471-12217 BULB (12V,40/40W)BULB (12V,40/40W)
-
1607120-05123 BOLT, HEADLAMP ADJUSTBOLT, HEADLAMP ADJUST
-
1735950-14A10 REFLEX REFLECTOR ASSY (CANADA)REFLEX REFLECTOR ASSY (CANADA)
-
1808316-10053 NUT, FRONT SIDE REAR (CANADA)NUT, FRONT SIDE REAR (CANADA)
