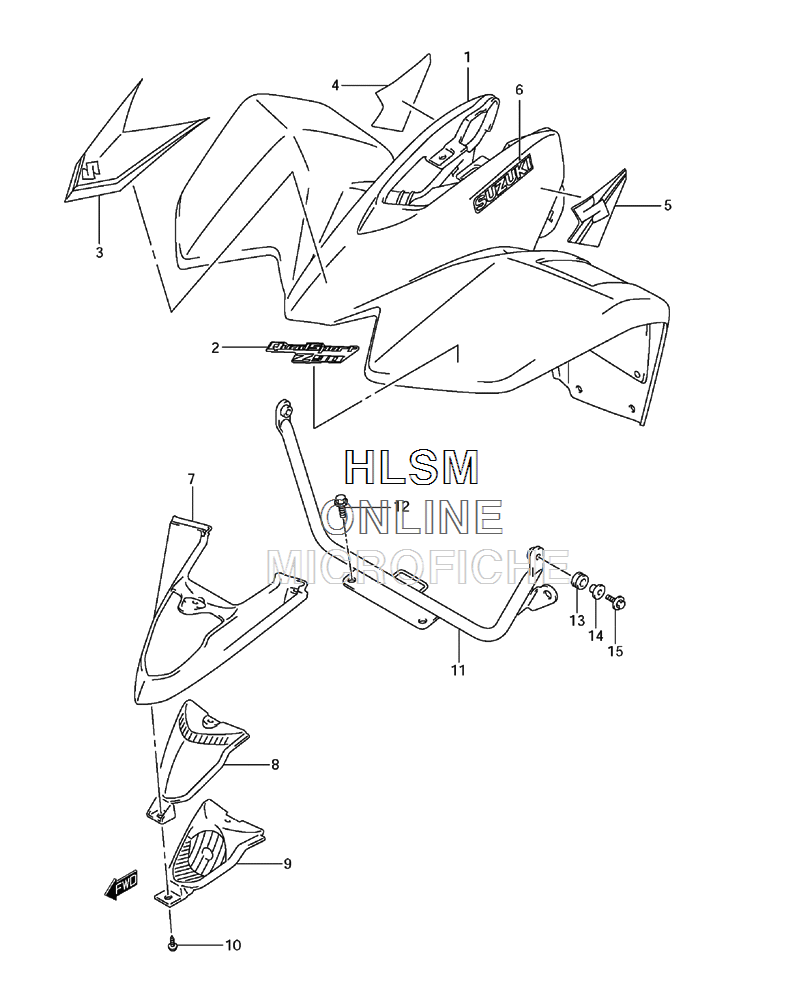

FENDER - FRONT для Suzuki LT-Z90 QuadSport Z90 - 2008 года выпуска
-
№АртикулНазвание
-
153111-08H00-YU1 FENDER, FRONT (YELLOW)FENDER, FRONT (YELLOW)
-
153111-08H00-30H FENDER, FRONT (WHITE)FENDER, FRONT (WHITE)
-
268151-08H00-DCP EMBLEM, LEFT HAND (FOR YU1)EMBLEM, LEFT HAND (FOR YU1)
-
268151-08H00-EMW EMBLEM, LEFT HAND (FOR 30H)EMBLEM, LEFT HAND (FOR 30H)
-
368155-08HB0-EMV TAPE, FRONT (FOR YU1)TAPE, FRONT (FOR YU1)
-
368155-08HB0-EMU TAPE, FRONT (FOR 30H)TAPE, FRONT (FOR 30H)
-
468155-08H10-EMT TAPE, SIDE RIGHT HAND (FOR YU1)TAPE, SIDE RIGHT HAND (FOR YU1)
-
468155-08H10-ELZ TAPE, SIDE RIGHT HAND (FOR 30H)TAPE, SIDE RIGHT HAND (FOR 30H)
-
568156-08H10-EMT TAPE, SIDE LEFT HAND (FOR YU1)TAPE, SIDE LEFT HAND (FOR YU1)
-
568156-08H10-ELZ TAPE, SIDE LEFT HAND (FOR 30H)TAPE, SIDE LEFT HAND (FOR 30H)
-
668151-08HA0-GY8 EMBLEM, ''SUZUKI'' (FOR YU1)EMBLEM, ''SUZUKI'' (FOR YU1)
-
668151-08HA0-8YM EMBLEM, ''SUZUKI'' (FOR 30H)EMBLEM, ''SUZUKI'' (FOR 30H)
-
753118-08H00-YU1 COVER, CENTER (YELLOW)COVER, CENTER (YELLOW)
-
753118-08H00-30H COVER, CENTER (WHITE)COVER, CENTER (WHITE)
-
853119-08H00 COVER, LENSCOVER, LENS
-
953117-08H00 HOLDER, LENSHOLDER, LENS
-
1003241-0516B SCREWSCREW
-
1153210-08H00 BRACE, FRONT FENDERBRACE, FRONT FENDER
-
1201550-0812B BOLTBOLT
-
1309320-09016 CUSHIONCUSHION
-
1409169-06062 WASHERWASHER
-
1501550-0620A BOLTBOLT
