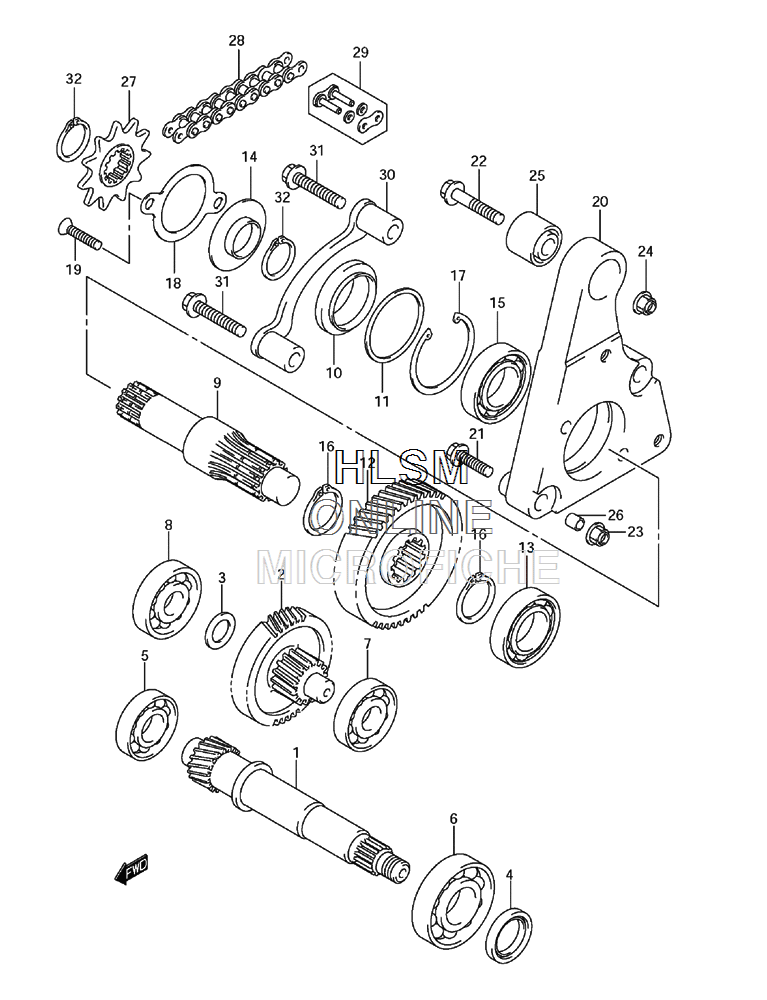

TRANSMISSION (2) для Suzuki LT-Z90 QuadSport Z90 - 2008 года выпуска
-
№АртикулНазвание
-
124131-08H00 SHAFT, DRIVE (NT:17)SHAFT, DRIVE (NT:17)
-
224150-33G00 SHAFT, IDLE (NT:15/45)SHAFT, IDLE (NT:15/45)
-
309181-12167 WASHER, IDLE SHAFT, R (12X20X1.0)WASHER, IDLE SHAFT, R (12X20X1.0)
-
409283-20052 SEAL, DRIVE SHAFT (20X28X5)SEAL, DRIVE SHAFT (20X28X5)
-
509262-15031 BEARING, DRIVE SHAFT, R (15X35X11)BEARING, DRIVE SHAFT, R (15X35X11)
-
609262-20069 BEARING, DRIVE SHAFT, L (20X47X14)BEARING, DRIVE SHAFT, L (20X47X14)
-
709262-12001 BEARING, IDLE SHAFT, L (12X28X8)BEARING, IDLE SHAFT, L (12X28X8)
-
808113-62017 BEARING, IDLE SHAFT, RBEARING, IDLE SHAFT, R
-
924141-08H00 SHAFT, REAR AXLESHAFT, REAR AXLE
-
1024142-40B00 SEAL, AXLE SHAFT OILSEAL, AXLE SHAFT OIL
-
1124143-08H00 WASHER, AXLE SHAFT (40X47X1.0)WASHER, AXLE SHAFT (40X47X1.0)
-
1224371-33G00 GEAR, FINAL DRIVEN (NT:47)GEAR, FINAL DRIVEN (NT:47)
-
1309262-20121 BEARING, AXLE SHAFT, R (20X47X14)BEARING, AXLE SHAFT, R (20X47X14)
-
1409283-20047 SEAL, AXLE SHAFT OIL (20X47X12)SEAL, AXLE SHAFT OIL (20X47X12)
-
1508110-62030 BEARING, AXLE SHAFT, LBEARING, AXLE SHAFT, L
-
1608331-3122A CIRCLIP, FINAL DRIVENCIRCLIP, FINAL DRIVEN
-
1708331-4147A CIRCLIP, AXLE SHAFT BRG, RCIRCLIP, AXLE SHAFT BRG, R
-
1824751-08H00 RETAINER, AXLE SHAFTRETAINER, AXLE SHAFT
-
1902122-0630A SCREW, RETAINERSCREW, RETAINER
-
2024145-08H00 HOUSING, RR AXLE SHAFTHOUSING, RR AXLE SHAFT
-
2109103-10086 BOLT, RR AXLE SHAFTBOLT, RR AXLE SHAFT
-
2209103-10218 BOLT, ENGINE MTG (L:45)BOLT, ENGINE MTG (L:45)
-
2309159-10115 NUT, RR AXLE SHAFT BRGNUT, RR AXLE SHAFT BRG
-
2409159-10115 NUT, ENGINE MTGNUT, ENGINE MTG
-
2509319-10032 BUSH, ENGINE MTGBUSH, ENGINE MTG
-
2604211-13149 PIN, RR AXLE SHAFT BRGPIN, RR AXLE SHAFT BRG
-
2727511-08H00 SPROCKET, ENGINE (NT:11)SPROCKET, ENGINE (NT:11)
-
2827600-24F20-060 CHAIN ASSY, DRIVE (60L)CHAIN ASSY, DRIVE (60L)
-
2927620-24F20 JOINT SET, CHAINJOINT SET, CHAIN
-
3027640-08H00 PLATE, FRONT CHAIN GUIDEPLATE, FRONT CHAIN GUIDE
-
3101550-0840B BOLTBOLT
-
3209380-20009 CIRCLIPCIRCLIP
