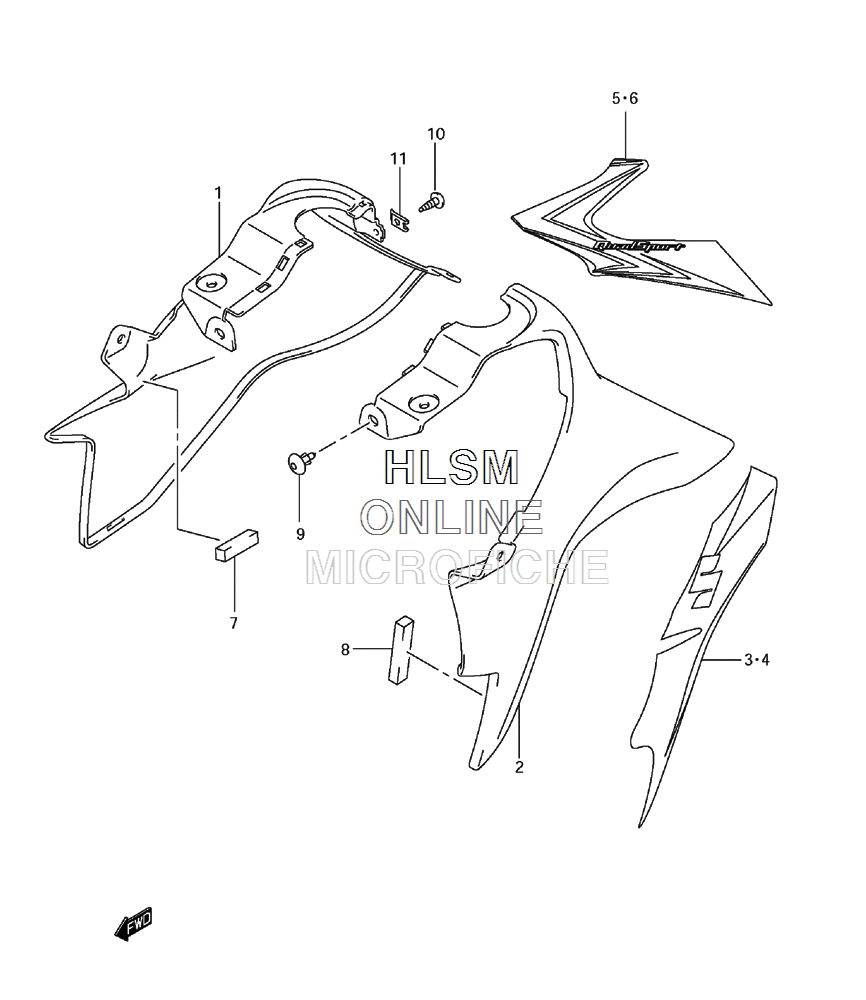

FUEL TANK COVER для Suzuki LT-Z90 QuadSport Z90 - 2008 года выпуска
-
№АртикулНазвание
-
144271-08H00-YU1 COVER, FUEL TANK RIGHT HAND (YELLOW)COVER, FUEL TANK RIGHT HAND (YELLOW)
-
144271-08H00-30H COVER, FUEL TANK RIGHT HAND (WHITE)COVER, FUEL TANK RIGHT HAND (WHITE)
-
244272-08H00-YU1 COVER, FUEL TANK LEFT HAND (YELLOW)COVER, FUEL TANK LEFT HAND (YELLOW)
-
244272-08H00-30H COVER, FUEL TANK RIGHT HAND (WHITE)COVER, FUEL TANK RIGHT HAND (WHITE)
-
568115-08H10-EMZ TAPE, RIGHT HAND (FOR YU1)TAPE, RIGHT HAND (FOR YU1)
-
568115-08H10-EMY TAPE, RIGHT HAND (FOR 30H)TAPE, RIGHT HAND (FOR 30H)
-
668116-08H10-EMZ TAPE, LEFT HAND (FOR YU1)TAPE, LEFT HAND (FOR YU1)
-
668116-08H10-EMY TAPE, LEFT HAND (FOR 30H)TAPE, LEFT HAND (FOR 30H)
-
744544-08H00 CUSHION, UPPERCUSHION, UPPER
-
844545-08H00 CUSHION, LOWERCUSHION, LOWER
-
909409-07333 CLIPCLIP
-
1003241-1512B SCREWSCREW
-
1109148-05038 NUTNUT
