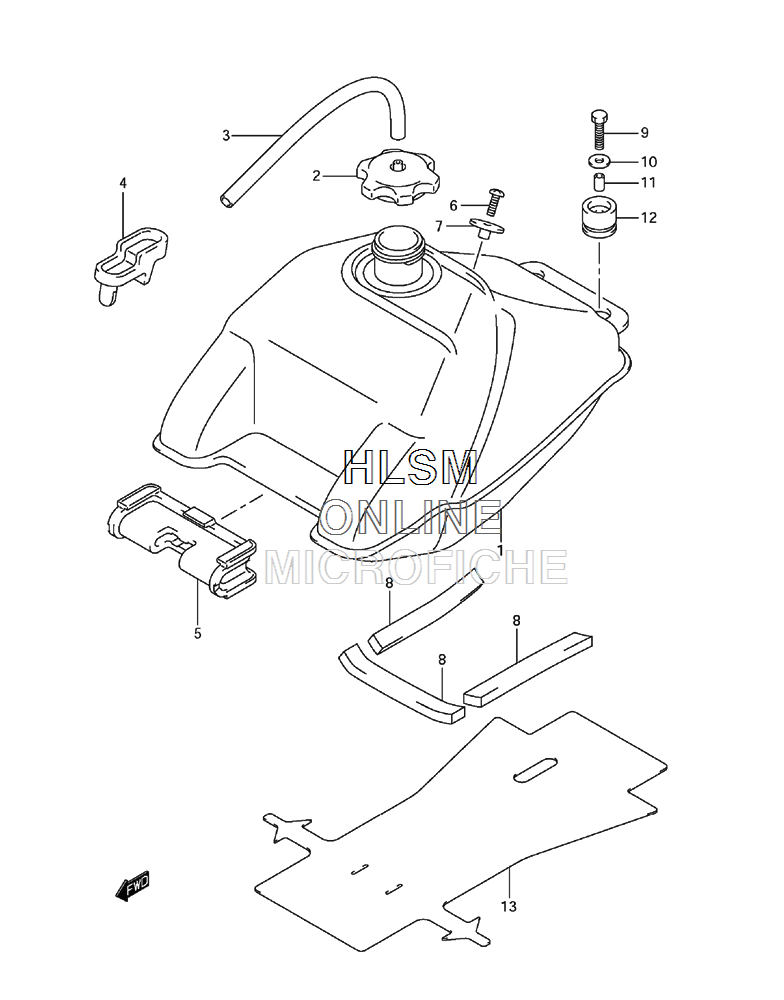

FUEL TANK для Suzuki LT-Z90 QuadSport Z90 - 2008 года выпуска
-
№АртикулНазвание
-
144100-08H10 TANK ASSY, FUELTANK ASSY, FUEL
-
244200-09AA0 CAP ASSY, FUEL TANKCAP ASSY, FUEL TANK
-
309352-50823-600 HOSE, BREATHER (L:600!260)HOSE, BREATHER (L:600!260)
-
444333-08H00 TRAY, FUEL BREATHER HOSETRAY, FUEL BREATHER HOSE
-
544541-08H00 CUSHION, FRONTCUSHION, FRONT
-
602142-0620B SCREWSCREW
-
744132-27C01 HOOK, SEAT FRONTHOOK, SEAT FRONT
-
844543-08H00 CUSHION, LOWERCUSHION, LOWER
-
901500-0625B BOLT, REARBOLT, REAR
-
1009160-06084 WASHERWASHER
-
1109180-06267 SPACERSPACER
-
1244541-43F00 CUSHION, REARCUSHION, REAR
-
1344542-08H00 RUBER, REAR LOWERRUBER, REAR LOWER
