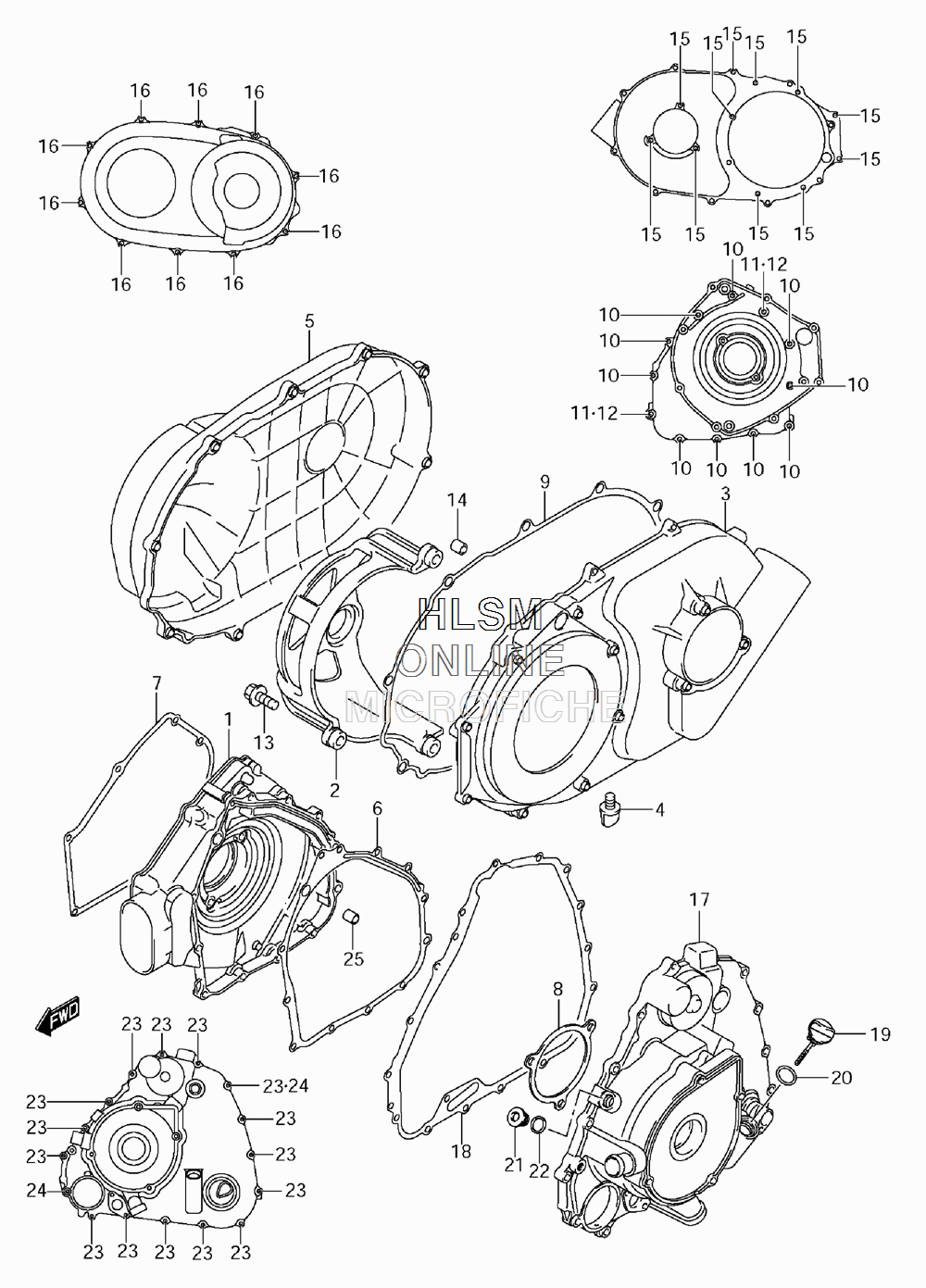

CRANKCASE COVER для Suzuki LT-A750XP KingQuad 750AXi Power Steering - 2011 года выпуска
-
№АртикулНазвание
-
111341-31G00 COVER, CLUTCHCOVER, CLUTCH
-
211342-31G10 HOUSING, V-BELT BEARINGHOUSING, V-BELT BEARING
-
311370-31G00 COVER, V-BELT INNERCOVER, V-BELT INNER
-
411375-31G00 PLUG, WATER DRAINPLUG, WATER DRAIN
-
511380-31G00 COVER, V-BELT OUTERCOVER, V-BELT OUTER
-
611482-31G00 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
711484-31G00 GASKET, V-BELT COVER INNER FRONTGASKET, V-BELT COVER INNER FRONT
-
811485-31G00 GASKET, V-BELT COVER INNER REARGASKET, V-BELT COVER INNER REAR
-
911486-31G00 GASKET, V-BELT COVER OUTERGASKET, V-BELT COVER OUTER
-
1001547-0625B BOLTBOLT
-
1101547-0635B BOLTBOLT
-
1204211-11169 PINPIN
-
1301547-0635B BOLTBOLT
-
1404211-09149 PINPIN
-
1501547-0625B BOLTBOLT
-
1601547-0625B BOLTBOLT
-
1711350-31G01 COVER, MAGNETOCOVER, MAGNETO
-
1811483-31G00 GASKET, MAGNETO COVERGASKET, MAGNETO COVER
-
1911971-09F50 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
2009280-17003 O RING (D:3.1,ID:16.8)O RING (D:3.1,ID:16.8)
-
2109248-14012 PLUG, TDC CHECKPLUG, TDC CHECK
-
2209168-14014 GASKET (14X18X1.5)GASKET (14X18X1.5)
-
2301547-0625B BOLTBOLT
-
2401547-0635B BOLTBOLT
-
2504211-11169 PINPIN
