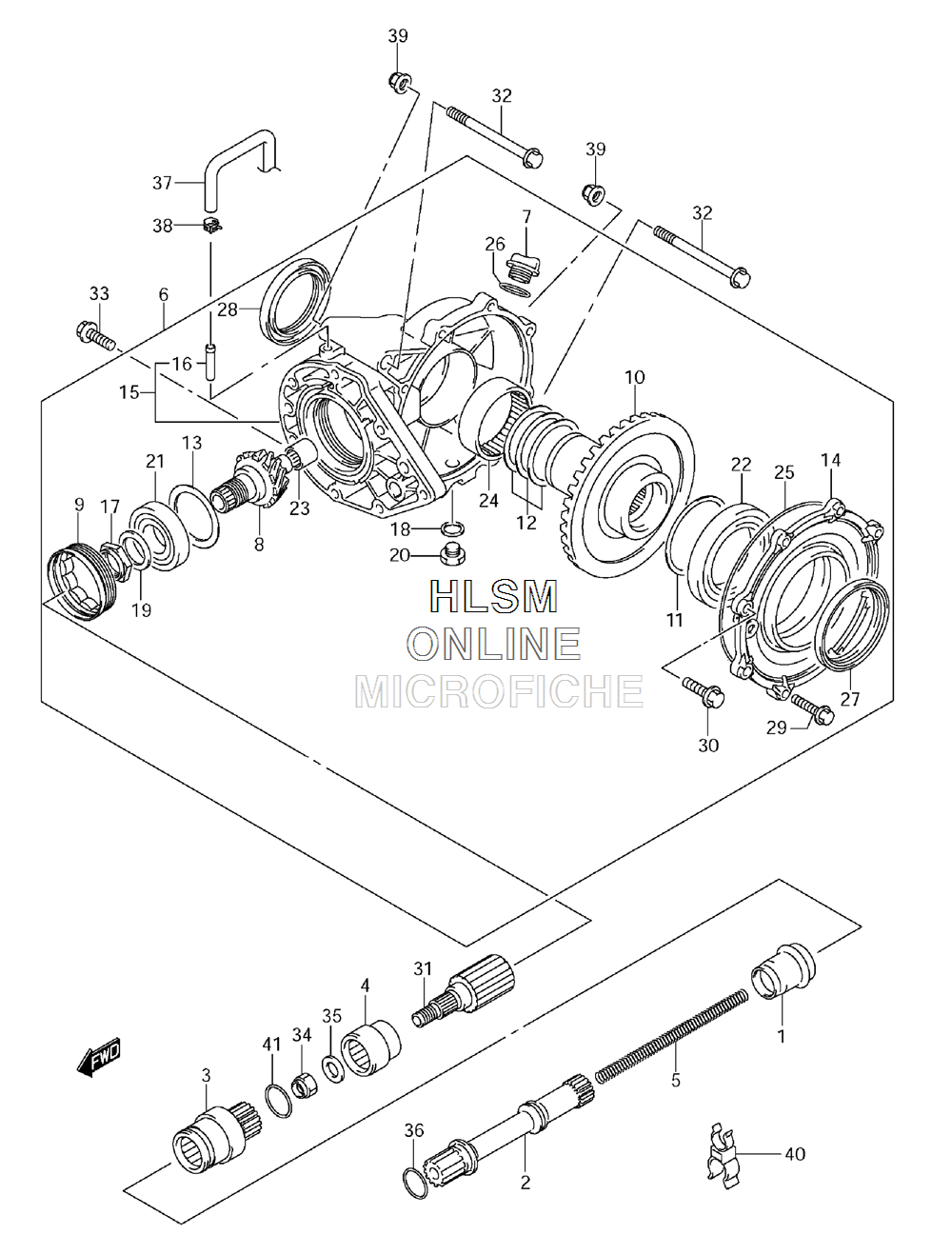

DIFFERENTIAL - REAR для Suzuki LT-A750XP KingQuad 750AXi Power Steering - 2011 года выпуска
-
№АртикулНазвание
-
127153-31G40 BOOT, JOINT SHAFTBOOT, JOINT SHAFT
-
227155-31G20 SHAFT, REAR PROPELLERSHAFT, REAR PROPELLER
-
327157-31G60 JOINT, REAR PROPELLERJOINT, REAR PROPELLER
-
427171-31G60 COUPLING, RR PROP SHAFTCOUPLING, RR PROP SHAFT
-
527192-31G10 SPRING, REAR PROPELLERSPRING, REAR PROPELLER
-
627410-31G50 CASE ASSY, REAR FINAL GEAR (INCL. 7 - 30)CASE ASSY, REAR FINAL GEAR (INCL. 7 - 30)
-
709259-20008-XC0 PLUGPLUG
-
827311-31G50 GEAR, RR FINAL DRIVEGEAR, RR FINAL DRIVE
-
927312-38F00 STOPPER, FINAL DRIVESTOPPER, FINAL DRIVE
-
1027320-31G00 GEAR, RR FINAL DRIVENGEAR, RR FINAL DRIVEN
-
1127326-31810 SHIM SET, FINAL DRIVEN LEFT HANDSHIM SET, FINAL DRIVEN LEFT HAND
-
1227327-31810 SHIM SET, FINAL DRIVEN RIGHT HANDSHIM SET, FINAL DRIVEN RIGHT HAND
-
1327445-24810 SHIM SET, FINAL DRIVE GEARSHIM SET, FINAL DRIVE GEAR
-
1427451-31G10 CASE, REAR FINAL GEAR LEFT HANDCASE, REAR FINAL GEAR LEFT HAND
-
1527460-31G10 CASE, REAR FINAL GEAR RIGHT HAND (INC 16)CASE, REAR FINAL GEAR RIGHT HAND (INC 16)
-
1609364-08016 UNIONUNION
-
1709140-28006 NUTNUT
-
1809168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
1909181-28195 WASHER (28X38X1.0)WASHER (28X38X1.0)
-
2009247-14013 PLUGPLUG
-
2109262-28023 BEARING (28X68X18)BEARING (28X68X18)
-
2209262-65001 BEARING (65X100X11.0) (LEFT)BEARING (65X100X11.0) (LEFT)
-
2309263-20062 BEARING (20X34X18)BEARING (20X34X18)
-
2409263-55003 BEARING (55X67X20) (RIGHT)BEARING (55X67X20) (RIGHT)
-
2509280-00046 O RING (D:2.4,ID:61) (LEFT)O RING (D:2.4,ID:61) (LEFT)
-
2609280-17003 O RING (D:3.1,ID:16.8)O RING (D:3.1,ID:16.8)
-
2709283-59001 OIL SEAL (59X88X8) (LEFT)OIL SEAL (59X88X8) (LEFT)
-
2809283-59001 OIL SEAL (59X88X8) (RIGHT)OIL SEAL (59X88X8) (RIGHT)
-
2909103-08357 BOLT (8X35)BOLT (8X35)
-
3009103-10294 BOLT (10X45)BOLT (10X45)
-
3127594-31G60 SHAFT, RR FINAL DRIVESHAFT, RR FINAL DRIVE
-
3209103-10148 BOLT (10X110)BOLT (10X110)
-
3309103-10405 BOLT (10X30)BOLT (10X30)
-
3409159-16003 NUTNUT
-
3509160-16026 WASHER (16X30X3.0)WASHER (16X30X3.0)
-
3609280-20002 O RING (D:3.1,ID:19.4)O RING (D:3.1,ID:19.4)
-
3727491-31G00 HOSE, BREATHERHOSE, BREATHER
-
3809401-10403 CLAMPCLAMP
-
3909159-10115 NUTNUT
-
4009408-00235 CLAMPCLAMP
-
4109280-35008 O RING (D:3.1,ID:34.4)O RING (D:3.1,ID:34.4)
