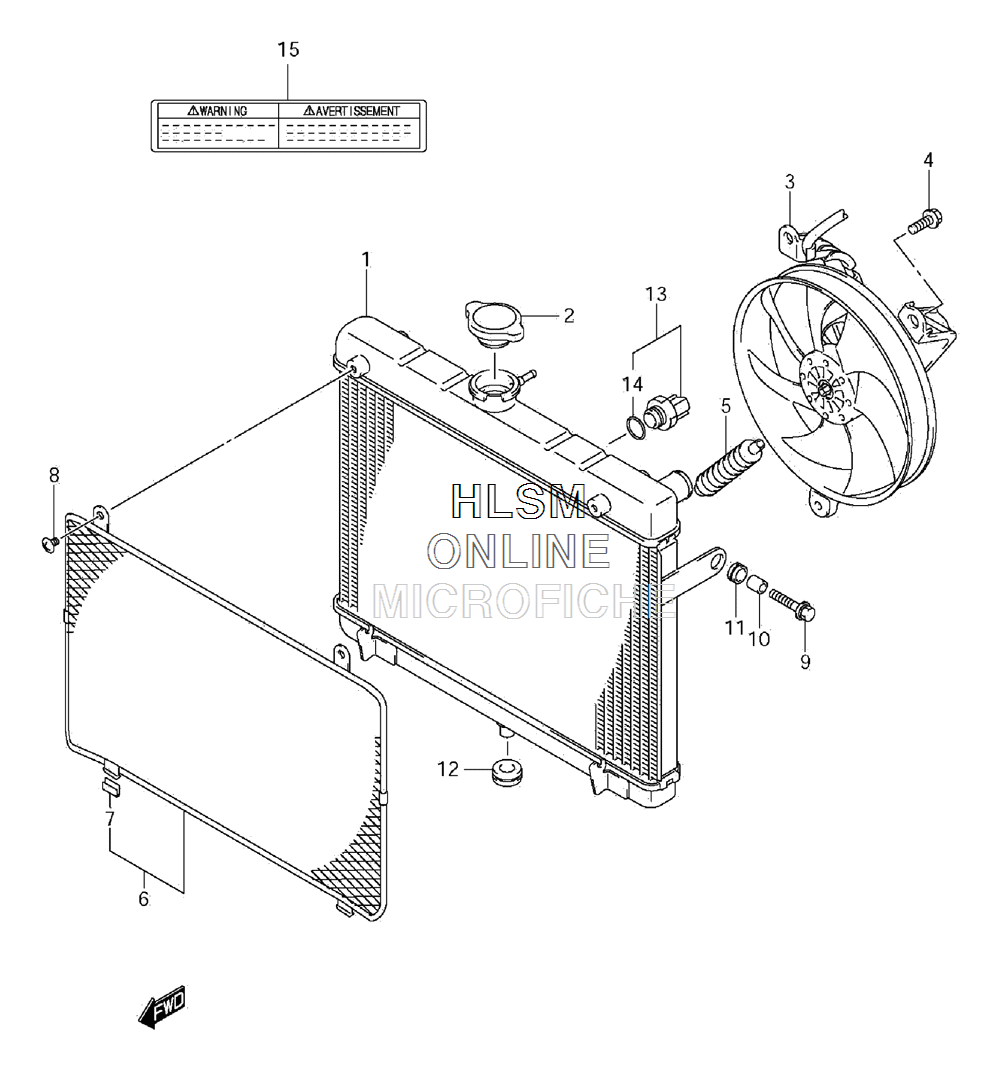

RADIATOR (CANADA) для Suzuki LT-A750XP KingQuad 750AXi Power Steering - 2011 года выпуска
-
№АртикулНазвание
-
117710-31G20 RADIATOR ASSYRADIATOR ASSY
-
217730-14G00 CAP ASSY, RADIATORCAP ASSY, RADIATOR
-
317800-31G10 FAN ASSY, RADIATORFAN ASSY, RADIATOR
-
401550-0610B BOLTBOLT
-
517820-07G10 BOOT, RDTR FAN MOTORBOOT, RDTR FAN MOTOR
-
617760-09F00 COVER, RADIATOR (INCL. 7)COVER, RADIATOR (INCL. 7)
-
717765-09F00 PROTECTORPROTECTOR
-
802142-0608B SCREWSCREW
-
909118-06097 BOLT (6X25)BOLT (6X25)
-
1009180-06290 SPACER (6.5X10X12)SPACER (6.5X10X12)
-
1109320-10042 CUSHIONCUSHION
-
1209320-12036 CUSHION, LOWERCUSHION, LOWER
-
1317680-50F00 SWITCH, RADIATOR FAN (INCL. 14)SWITCH, RADIATOR FAN (INCL. 14)
-
1417689-50F00 O RINGO RING
-
1517991-02F40 LABEL, COOLING FANLABEL, COOLING FAN
