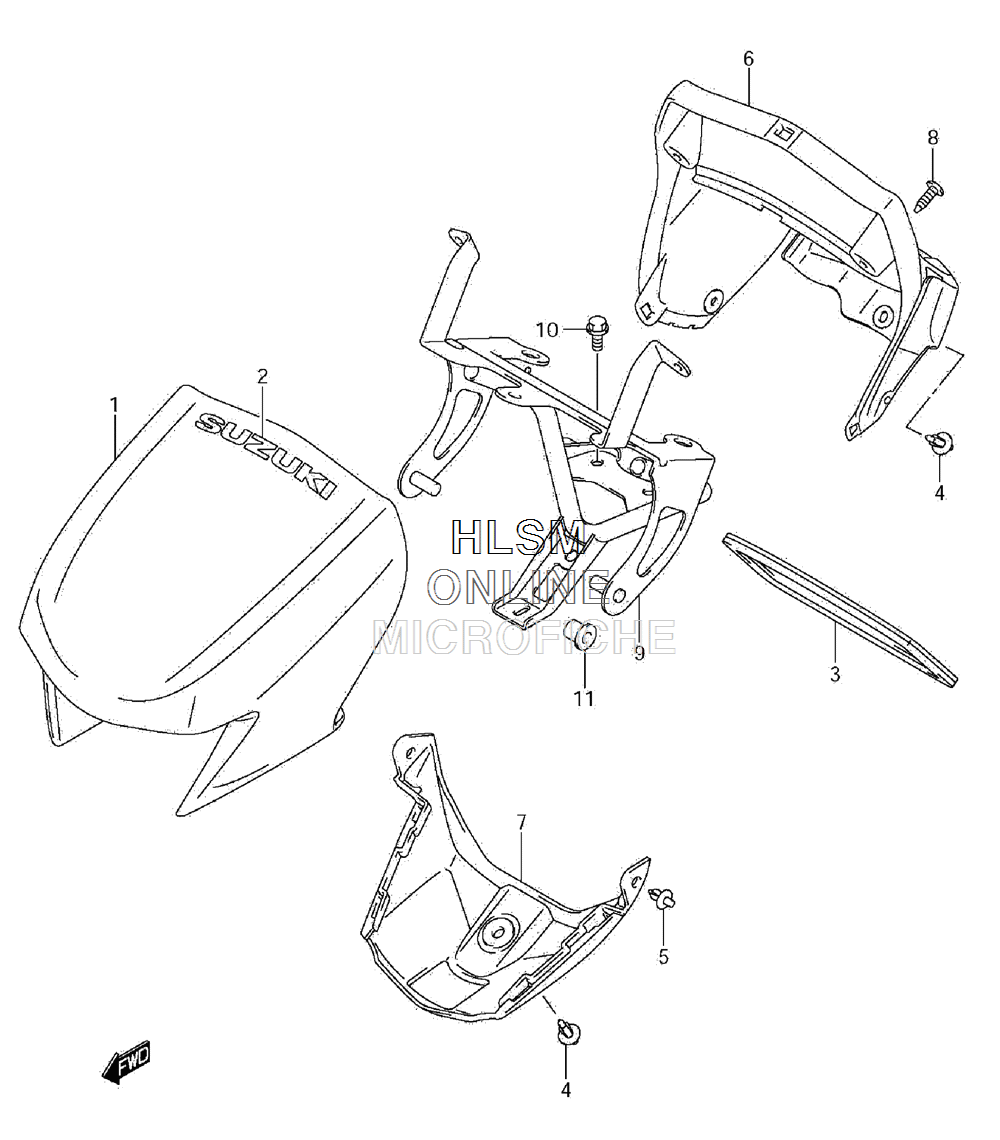

HANDLE COVER (CANADA) для Suzuki LT-A750XP KingQuad 750AXi Power Steering - 2011 года выпуска
-
№АртикулНазвание
-
156311-31G00-YT9 COVER, FRONT (RED)COVER, FRONT (RED)
-
156311-31G00-YLG COVER, FRONT (GREEN)COVER, FRONT (GREEN)
-
268171-31GA0-1ZZ EMBLEM ''SUZUKI'' (GRAY)EMBLEM ''SUZUKI'' (GRAY)
-
356317-31G00 MOLDINGMOLDING
-
409409-06314-5PK CLIP (BLACK)CLIP (BLACK)
-
509409-07333 CLIPCLIP
-
656321-31G01-291 COVER, HANDLE REAR (BLACK)COVER, HANDLE REAR (BLACK)
-
756331-31G00-291 COVER, HANDLE LOWER (BLACK)COVER, HANDLE LOWER (BLACK)
-
809132-05053 SCREW (5X16)SCREW (5X16)
-
956160-31G21 BRACE, COVERBRACE, COVER
-
1001550-0812A BOLTBOLT
-
1109320-07016 CUSHIONCUSHION
