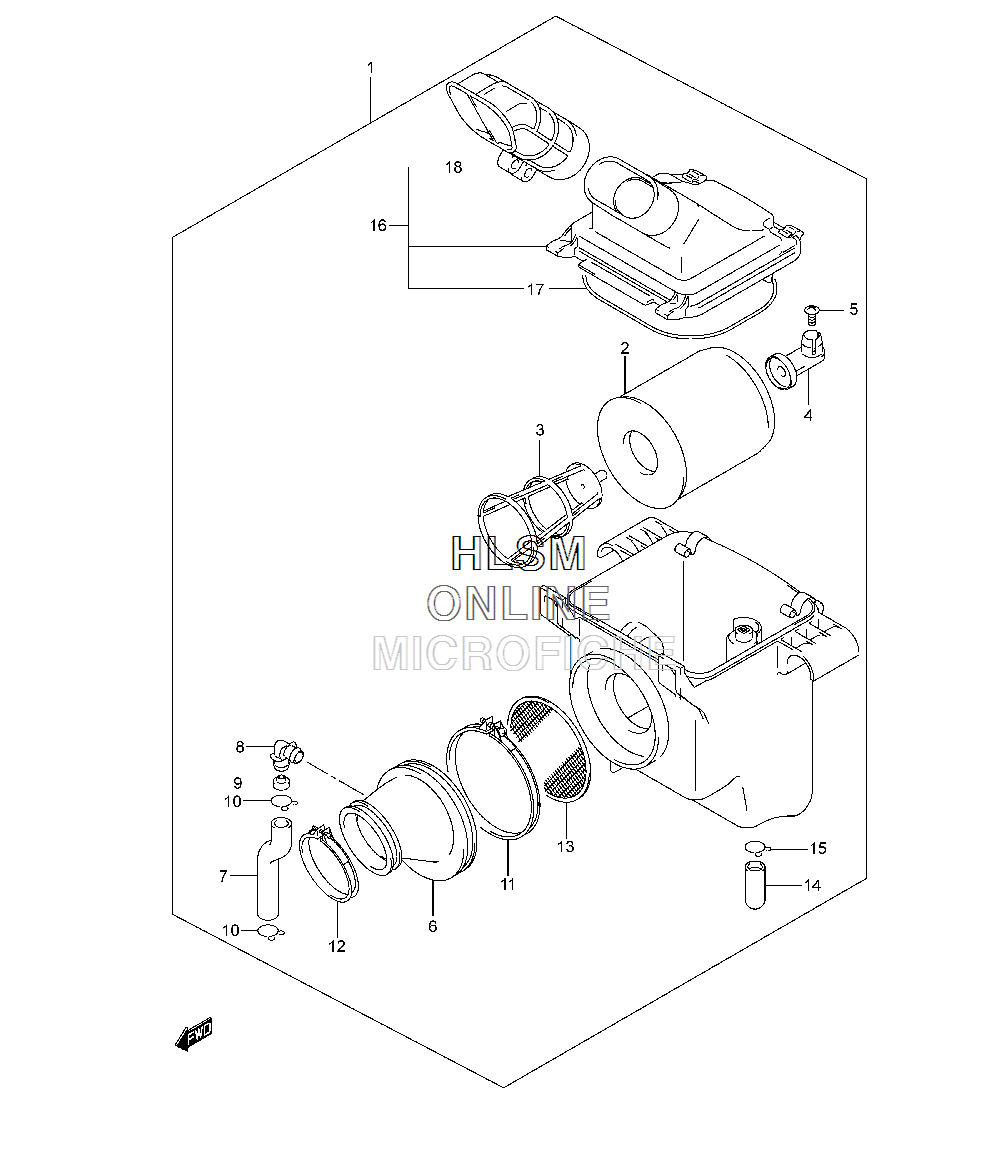

AIR CLEANER для Suzuki LT-F250 Ozark 250 - 2013 года выпуска
-
№АртикулНазвание
-
113700-05G10 CLEANER ASSY, AIRCLEANER ASSY, AIR
-
213780-05G10 ...FILTER ASSY...FILTER ASSY
-
313791-05G01 ...HOLDER, FILTER...HOLDER, FILTER
-
413792-05G00 ...STOPPER, HOLDER...STOPPER, HOLDER
-
502142-0616A ...SCREW...SCREW
-
613881-05G00 ...TUBE, OUTLET...TUBE, OUTLET
-
713853-05G00 ...TUBE, BREATHER...TUBE, BREATHER
-
813858-14D20 ...JOINT...JOINT
-
913859-05G00 ...JET, BREATHER...JET, BREATHER
-
1009401-14301 ...CLIP...CLIP
-
1109402-98208 ...CLAMP...CLAMP
-
1209402-58208 ...CLAMP...CLAMP
-
1313810-05G00 ...TRAP, FLAME...TRAP, FLAME
-
1413878-09F00 ...PLUG, DRAIN...PLUG, DRAIN
-
1509401-14301 ...CLIP...CLIP
-
1613740-05G00 ...CAP, AIR CLEANER...CAP, AIR CLEANER
-
1713746-05G00 ......GASKET......GASKET
-
1813891-05G00 ......TUBE, INLET......TUBE, INLET
