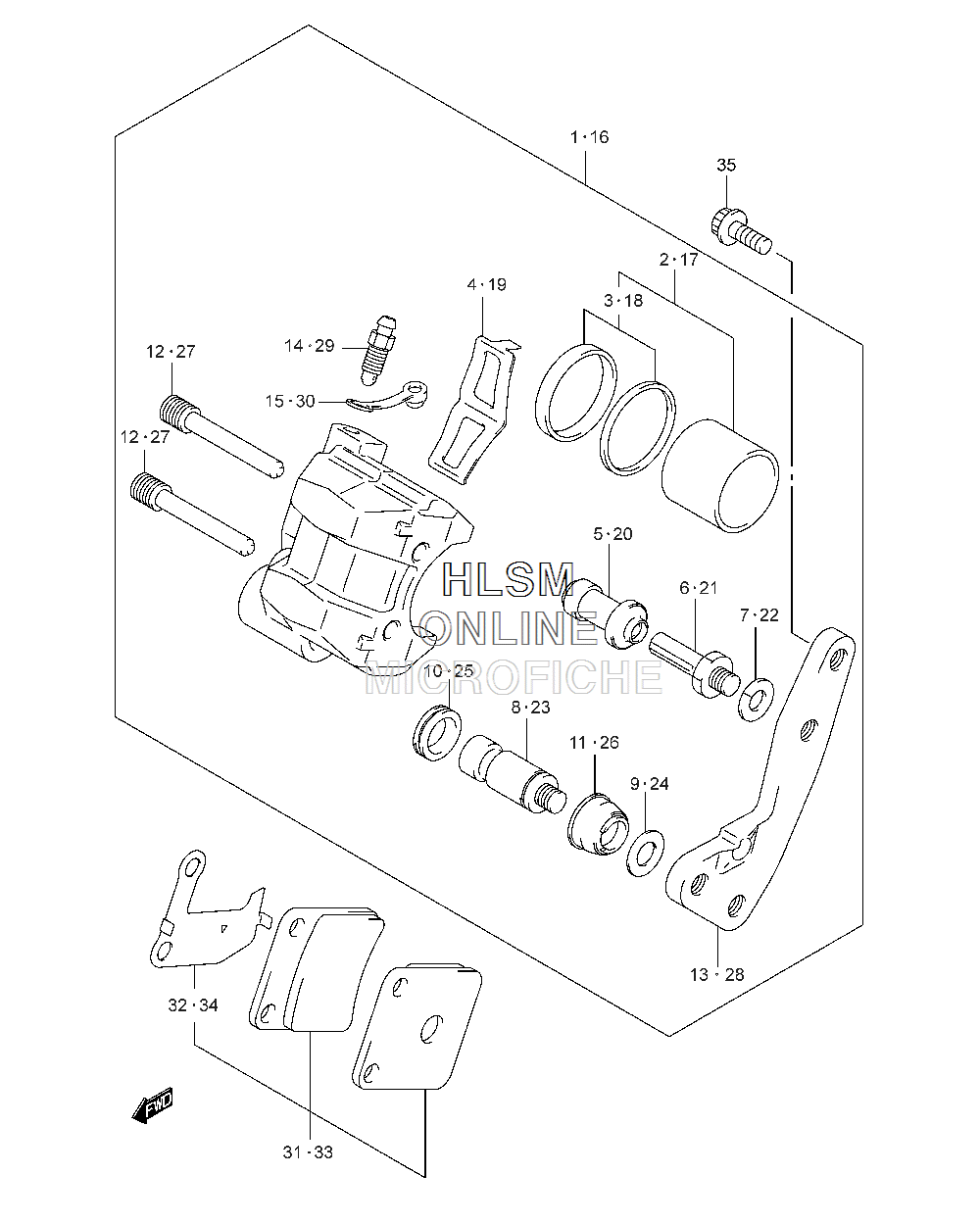

BRAKE - FRONT CALIPER для Suzuki LT-F250 Ozark 250 - 2013 года выпуска
-
№АртикулНазвание
-
159100-38F31-999 CALIPER ASSY, FRONT RIGHTCALIPER ASSY, FRONT RIGHT
-
259100-38850 ...PISTON SET...PISTON SET
-
359100-38860 ......SEAL SET, PISTON......SEAL SET, PISTON
-
459315-13A00 ...SPRING, PAD...SPRING, PAD
-
559386-13A00 ...BOOT...BOOT
-
659382-13A00 ...BOLT...BOLT
-
759314-13A00 ...WASHER...WASHER
-
859105-38F00 ...PIN, SLIDE...PIN, SLIDE
-
959306-13A00 ...SPRING...SPRING
-
1059384-13A00 ...SEAL, DUST...SEAL, DUST
-
1159303-13A00 ...BOOT...BOOT
-
1259345-00B20 ...PIN...PIN
-
1359151-38F00 ...BRACKET, RIGHT...BRACKET, RIGHT
-
1459121-01A00 ...BLEEDER...BLEEDER
-
1559122-01A00 ...CAP...CAP
-
1659300-38F31-999 CALIPER ASSY, FRONT LEFTCALIPER ASSY, FRONT LEFT
-
1759100-38850 ...PISTON SET...PISTON SET
-
1859100-38860 ......SEAL SET, PISTON......SEAL SET, PISTON
-
1959315-13A00 ...SPRING, PAD...SPRING, PAD
-
2059386-13A00 ...BOOT...BOOT
-
2159382-13A00 ...BOLT...BOLT
-
2259314-13A00 ...WASHER...WASHER
-
2359105-38F00 ...PIN, SLIDE...PIN, SLIDE
-
2459306-13A00 ...SPRING...SPRING
-
2559384-13A00 ...SEAL, DUST...SEAL, DUST
-
2659303-13A00 ...BOOT...BOOT
-
2759345-00B20 ...PIN...PIN
-
2859351-38F00 ...BRACKET, LEFT...BRACKET, LEFT
-
2959121-01A00 ...BLEEDER...BLEEDER
-
3059122-01A00 ...CAP...CAP
-
3159101-38851 PAD & SHIM SET RIGHTPAD & SHIM SET RIGHT
-
3259371-13A00 ...SHIM RIGHT...SHIM RIGHT
-
3359101-38861 PAD & SHIM SET LEFTPAD & SHIM SET LEFT
-
3469372-00B20 ...SHIM LEFT...SHIM LEFT
-
3509106-08174 BOLT (8X16)BOLT (8X16)
