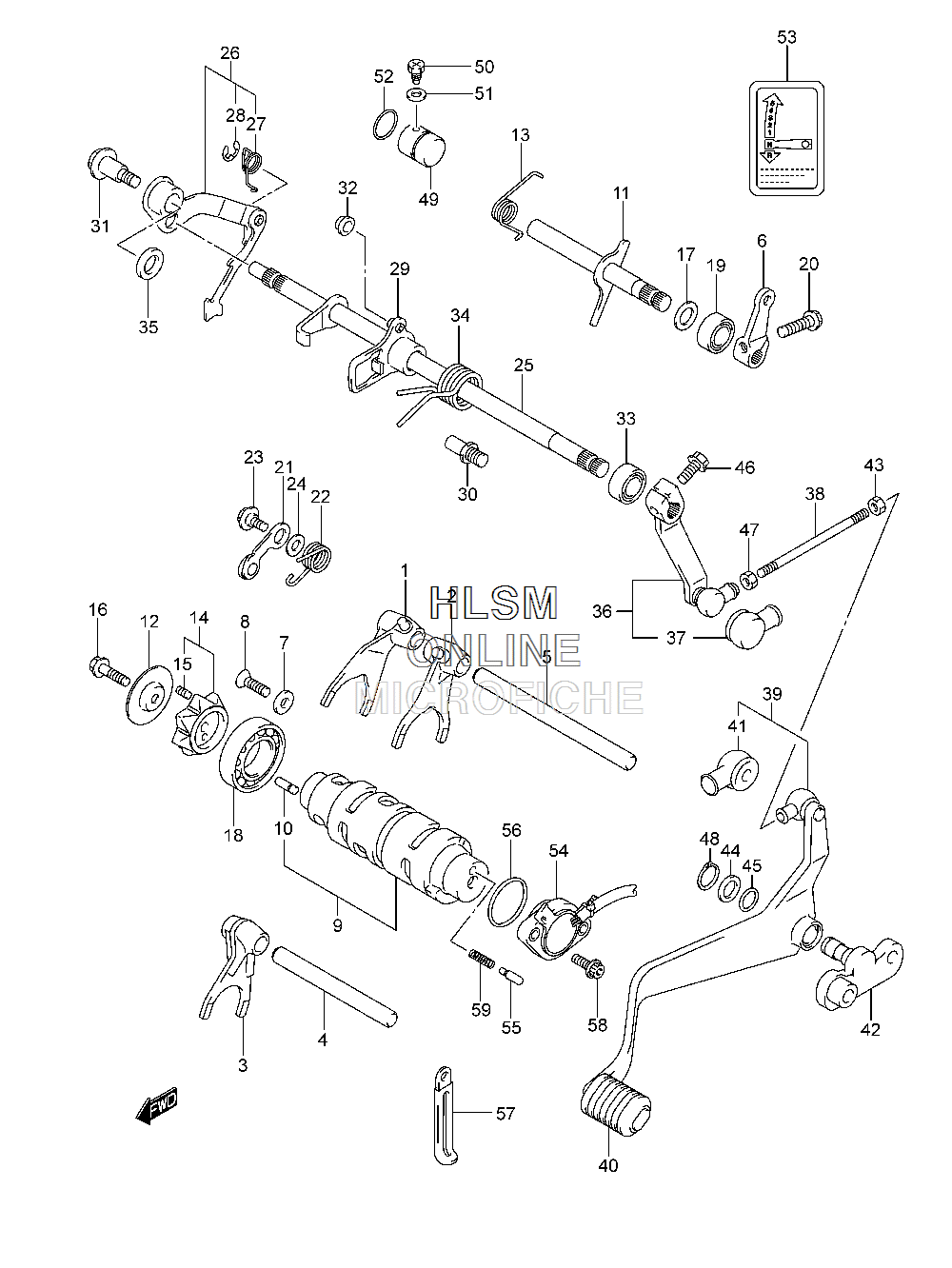

GEAR SHIFTING для Suzuki LT-F250 Ozark 250 - 2013 года выпуска
-
№АртикулНазвание
-
125211-05G00 FORK, GEAR SHIFTING, NO.1FORK, GEAR SHIFTING, NO.1
-
225221-05G00 FORK, GEAR SHIFTING, NO.2FORK, GEAR SHIFTING, NO.2
-
325231-19B00 FORK, GEAR SHIFTING, NO.3FORK, GEAR SHIFTING, NO.3
-
425411-14331 SHAFT, GEAR SHIFT FORK NO.2SHAFT, GEAR SHIFT FORK NO.2
-
525411-24501 SHAFT, GEAR SHIFT FORK NO.1SHAFT, GEAR SHIFT FORK NO.1
-
623271-49100 ARM, SHIFT CAM LOCKARM, SHIFT CAM LOCK
-
724741-20A00 RETAINER, GEAR SHIFT CAMRETAINER, GEAR SHIFT CAM
-
809126-06011 SCREW (6X12)SCREW (6X12)
-
925310-05G01 CAM, GEAR SHIFTCAM, GEAR SHIFT
-
1004221-04089 ...PIN...PIN
-
1125320-05G02 SHAFT, SHIFT CAM LOCKSHAFT, SHIFT CAM LOCK
-
1225322-05G00 RETAINER, GEAR SHIFT CAMRETAINER, GEAR SHIFT CAM
-
1325328-05G00 SPRING, SHIFT CAM LOCKSPRING, SHIFT CAM LOCK
-
1425380-05G00 PLATE, GEAR SHIFT CAMPLATE, GEAR SHIFT CAM
-
1509261-04002 ...ROLLER...ROLLER
-
1609103-06282 BOLT (6X25)BOLT (6X25)
-
1709181-12167 SHIM (12X20X1)SHIM (12X20X1)
-
1809262-25006 BEARING (25X47X8)BEARING (25X47X8)
-
1909285-12006 OIL SEAL (12X22X9)OIL SEAL (12X22X9)
-
2001550-0620A BOLTBOLT
-
2125350-24B00 STOPPER, GEAR SHIFT CAMSTOPPER, GEAR SHIFT CAM
-
2225355-05G00 SPRING, GEAR SHIFT CAMSPRING, GEAR SHIFT CAM
-
2309111-06041 BOLT (6X14.3)BOLT (6X14.3)
-
2408211-06141 WASHERWASHER
-
2525510-05G20 SHAFT, GEAR SHIFTSHAFT, GEAR SHIFT
-
2625520-05G00 ARM, GEAR SHIFT NO.2ARM, GEAR SHIFT NO.2
-
2725527-05G00 ...SPRING...SPRING
-
2808332-1107A ...E RING...E RING
-
2925540-05G20 ARM, GEAR SHIFT LINKARM, GEAR SHIFT LINK
-
3025671-38B00 STOPPER, GEAR SHIFT ARMSTOPPER, GEAR SHIFT ARM
-
3109103-08193 BOLT (8X30.3)BOLT (8X30.3)
-
3209180-07014 SPACER (7X10X5)SPACER (7X10X5)
-
3309283-14005 OIL SEAL (14X22X7.3)OIL SEAL (14X22X7.3)
-
3409444-26025 SPRINGSPRING
-
3508211-08201 WASHERWASHER
-
3625520-05G20 ARM, GEAR SHIFT LINKARM, GEAR SHIFT LINK
-
3725526-47000 ...COVER DUST...COVER DUST
-
3825525-44110 ROD, GEAR SHIFT LINK (L:60)ROD, GEAR SHIFT LINK (L:60)
-
3925600-05G30 LEVER ASSY, GEAR SHIFTLEVER ASSY, GEAR SHIFT
-
4025652-24401 ...RUBBER...RUBBER
-
4125526-47000 ...COVER...COVER
-
4225670-05G30 PLATE, SHIFT SUPPORTPLATE, SHIFT SUPPORT
-
4309140-06025 NUTNUT
-
4409160-13010 WASHER (13X20X1)WASHER (13X20X1)
-
4509280-10016 O RING (D:1.9,ID:9.8)O RING (D:1.9,ID:9.8)
-
4601550-0620A BOLTBOLT
-
4708310-00067 NUTNUT
-
4808331-3113A CIRCLIP, GEAR SHIFT LEVERCIRCLIP, GEAR SHIFT LEVER
-
4926442-21G00 PLUG, SPDOMPLUG, SPDOM
-
5009135-06501 BOLT (6X10)BOLT (6X10)
-
5109168-06004 GASKET (6.2X11X1.2)GASKET (6.2X11X1.2)
-
5209280-17004 O RING (D:1.9,ID:16.6)O RING (D:1.9,ID:16.6)
-
5368392-05G00 LABEL, GEAR SHIFT PATTERNLABEL, GEAR SHIFT PATTERN
-
5437720-05G00 BASE ASSY, GEAR SHIFT TERMBASE ASSY, GEAR SHIFT TERM
-
5509209-05011 PINPIN
-
5609280-26005 O RING (D:2.4,ID:26.2)O RING (D:2.4,ID:26.2)
-
5709404-06433 CLAMP (L:80)CLAMP (L:80)
-
5807120-0516A BOLTBOLT
-
5909440-04010 SPRINGSPRING
