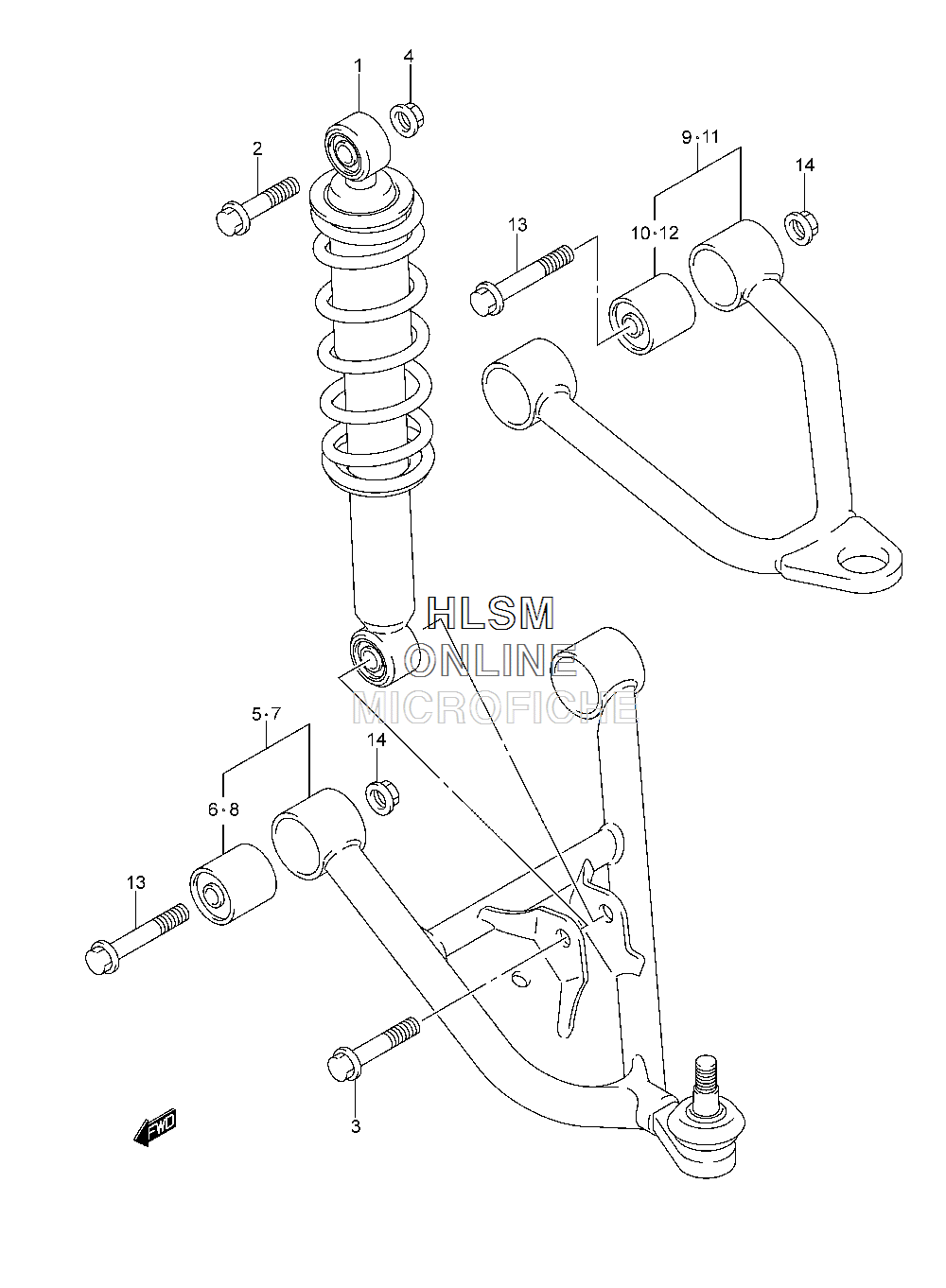

SUSPENSION - FRONT ARM W/ SHOCK для Suzuki LT-F250 Ozark 250 - 2013 года выпуска
-
№АртикулНазвание
-
152100-05G10-019 ABSORBER ASSY, FRONT SHOCK (BLACK)ABSORBER ASSY, FRONT SHOCK (BLACK)
-
209103-10019 BOLT (10X37)BOLT (10X37)
-
309103-10126 BOLT (10X48)BOLT (10X48)
-
409159-10115 NUTNUT
-
552410-05831 ARM SET, SUSPENSION LOWER RIGHTARM SET, SUSPENSION LOWER RIGHT
-
609319-10055 ...BUSH...BUSH
-
752420-05831 ARM SET, SUSPENSION LOWER LEFTARM SET, SUSPENSION LOWER LEFT
-
809319-10055 ...BUSH...BUSH
-
952430-05811 ARM SET, SUSPENSION UPPER RIGHTARM SET, SUSPENSION UPPER RIGHT
-
1009319-10055 ...BUSH...BUSH
-
1152440-05811 ARM SET, SUSPENSION UPPER LEFTARM SET, SUSPENSION UPPER LEFT
-
1209319-10055 ...BUSH...BUSH
-
1309103-10301 BOLT (10X60)BOLT (10X60)
-
1409159-10115 NUTNUT
Все узлы модели:
- AIR CLEANER
- BATTERY
- BRAKE - FRONT CALIPER
- BRAKE - FRONT HOSE
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR PEDAL
- CAM CHAIN
- CAM SHAFT - W/ VALVES
- CARBURETOR
- CARRIER - FRONT / REAR
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT W/ PISTON
- CYLINDER
- CYLINDER HEAD
- DIFFERENTIAL - REAR
- DRIVESHAFT - REAR
- ELECTRICAL
- ELECTRICAL - LAMP INDICATORS
- ELECTRICAL - WIRING HARNESS
- FENDER - FRONT
- FENDER - REAR
- FOOTREST W/ BUMBER
- FRAME
- FUEL TANK
- GASKET SET
- GEAR SHIFTING
- HANDLEBAR - LEVERS / SWITCHES
- HANDLEBAR W/ CABLES
- HEADLAMP
- HEADLAMP HOUSING
- LABELS
- MAGNETO
- MUFFLER
- OIL PUMP
- OPTIONAL
- SEAT
- STARTER - RECOIL
- STARTER CLUTCH
- STARTING MOTOR
- STEERING KNUCKLE W/ TIE RODS
- STEERING SHAFT
- • SUSPENSION - FRONT ARM W/ SHOCK
- SUSPENSION - REAR SWING ARM
- TAILLIGHT ASSY.
- TRANSMISSION
- WHEEL - FRONT
- WHEEL - LEFT REAR
- WHEEL - RIGHT REAR W/ AXLE
