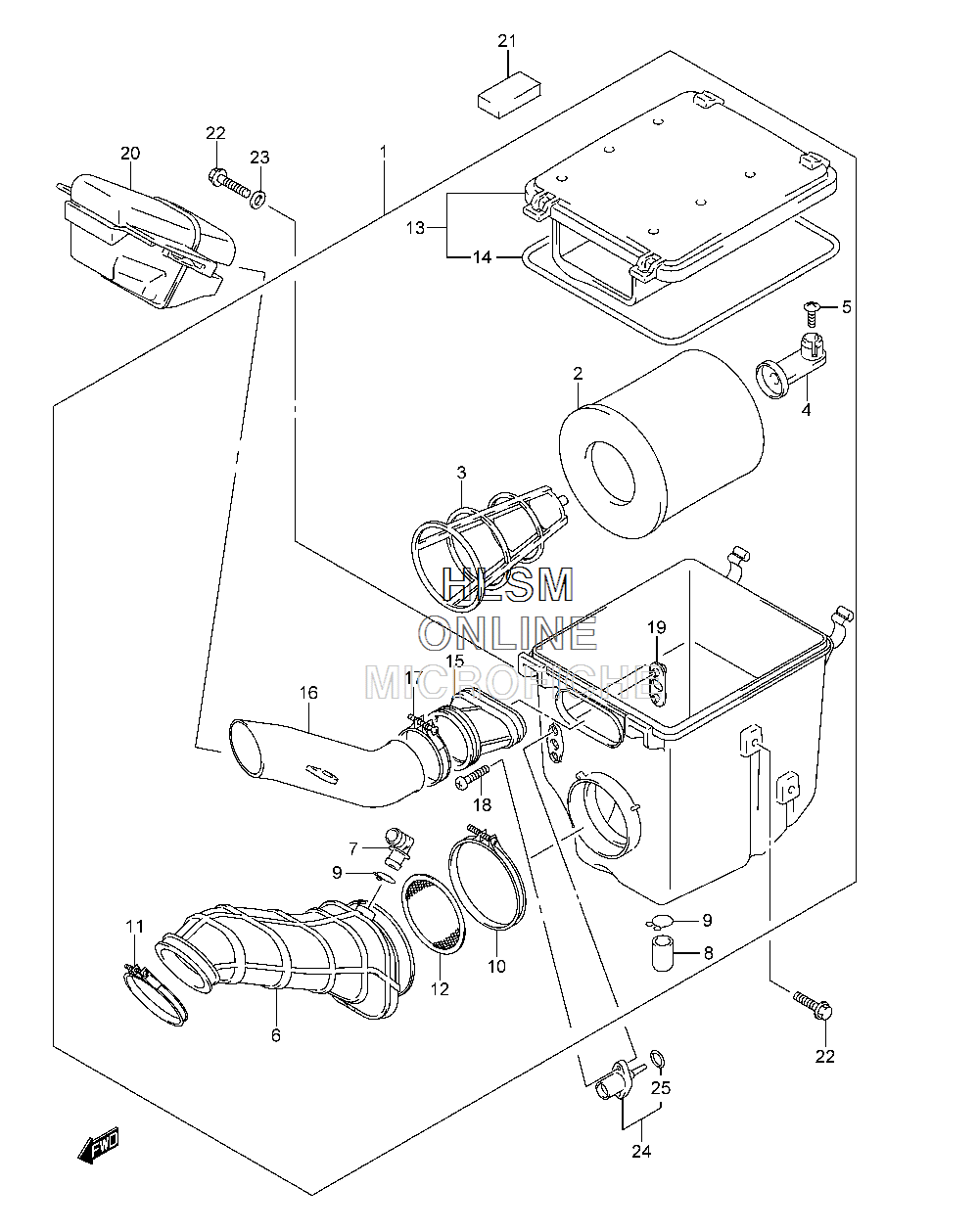

AIR CLEANER для Suzuki LT-Z400 QuadSport Z400 - 2013 года выпуска
-
№АртикулНазвание
-
113700-33H01 CLEANER ASSY, AIRCLEANER ASSY, AIR
-
213780-07G00 ...FILTER...FILTER
-
313791-03G00 ...HOLDER...HOLDER
-
413792-03G00 ...STOPPER, HOLDER...STOPPER, HOLDER
-
502142-0616A ...SCREW...SCREW
-
613881-33H00 ...TUBE, OUTLET...TUBE, OUTLET
-
713858-14D20 ...JOINT...JOINT
-
813859-41B10 ...PLUG, BREATHER...PLUG, BREATHER
-
909401-14101 ...CLIP...CLIP
-
1009402-82208 ...CLAMP...CLAMP
-
1113826-33H00 ...CLAMP...CLAMP
-
1213810-07G01 ...TRAP, FLAME...TRAP, FLAME
-
1313740-07G02 ...CAP, AIR CLEANER...CAP, AIR CLEANER
-
1413746-07G00 ......GASKET......GASKET
-
1513891-07G00 ...JOINT, INLET...JOINT, INLET
-
1613896-07G00 ...DUCT, INLET...DUCT, INLET
-
1709402-56901 ...CLAMP...CLAMP
-
1802112-0516A ...SCREW...SCREW
-
1913889-33H00 ...HOLDER...HOLDER
-
2013899-33H00 COVER, INLETCOVER, INLET
-
2144545-16G00 CUSHIONCUSHION
-
2201547-0616A BOLTBOLT
-
2308322-0106A WASHERWASHER
-
2413650-14G10 SENSOR, AIR TEMPSENSOR, AIR TEMP
-
2513655-14G10 ...O RING...O RING
