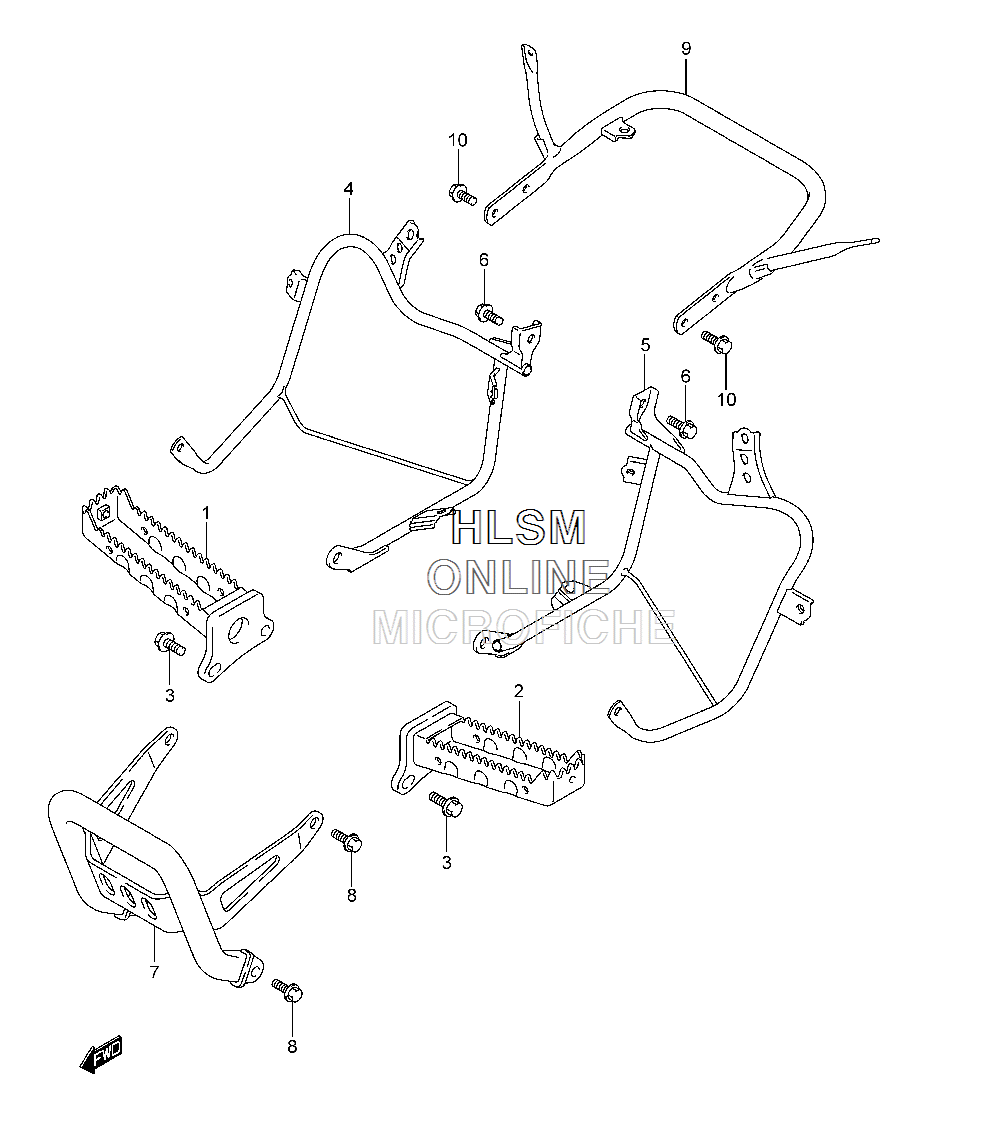

FOOTREST W/ BUMBER для Suzuki LT-Z400 QuadSport Z400 - 2013 года выпуска
-
№АртикулНазвание
-
143510-33H00 FOOTREST, RIGHTFOOTREST, RIGHT
-
243520-33H00 FOOTREST, LEFTFOOTREST, LEFT
-
309103-10378 BOLT (10X25)BOLT (10X25)
-
443570-33H00 REINFORCE, MUDGUARD RIGHTREINFORCE, MUDGUARD RIGHT
-
543580-33H00 REINFORCE, MUDGUARD LEFTREINFORCE, MUDGUARD LEFT
-
609103-08283-A05 BOLT (8X16)BOLT (8X16)
-
743990-33H00 GRIP, FRONTGRIP, FRONT
-
801550-0816A BOLTBOLT
-
943980-33H00-YD8 GRIP, REAR (SILVER)GRIP, REAR (SILVER)
-
1001550-0816A BOLTBOLT
