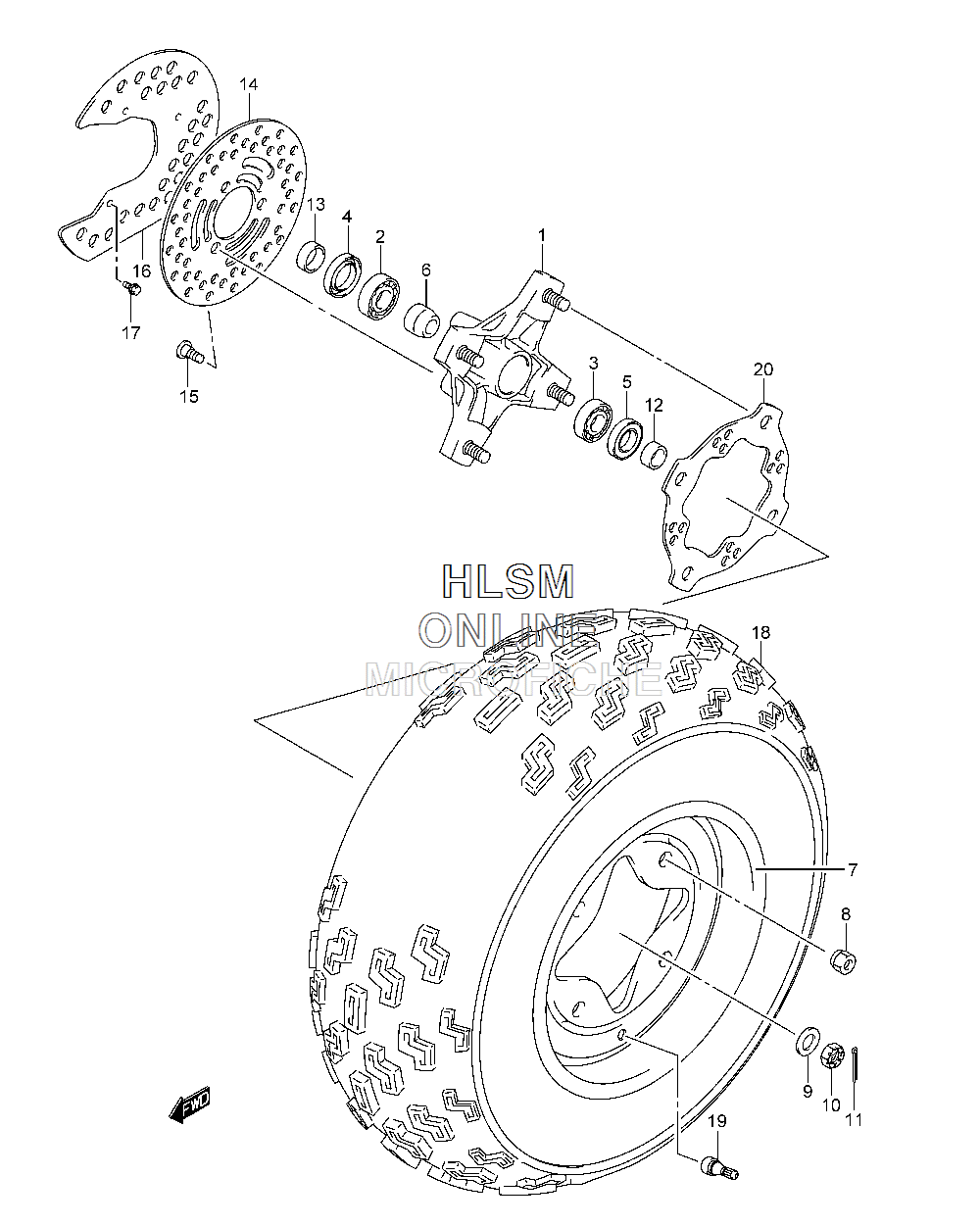

WHEEL - FRONT для Suzuki LT-Z400 QuadSport Z400 - 2013 года выпуска
-
№АртикулНазвание
-
154110-07G00-019 HUB, FRONT WHEEL (BLACK)HUB, FRONT WHEEL (BLACK)
-
208120-60047 BEARINGBEARING
-
309262-15024 BEARING (15X35X11)BEARING (15X35X11)
-
409284-26002 OIL SEAL (26X42X8)OIL SEAL (26X42X8)
-
509284-21001 OIL SEAL (21X35X8)OIL SEAL (21X35X8)
-
654731-07G10 SPACER, FRONT HUB BEARINGSPACER, FRONT HUB BEARING
-
755310-07G10 RIM, FRONT WHEEL (10X5.5AT)RIM, FRONT WHEEL (10X5.5AT)
-
809159-10114 NUT, WHEELNUT, WHEEL
-
909160-15052 WASHER (15X26X2.3)WASHER (15X26X2.3)
-
1008314-4014B NUTNUT
-
1104111-3025A COTTER PINCOTTER PIN
-
1209180-15068 SPACER (15.3X21X10)SPACER (15.3X21X10)
-
1309180-20122 SPACER (20.5X26X10)SPACER (20.5X26X10)
-
1459211-07G00 DISC, FRONT BRAKEDISC, FRONT BRAKE
-
1509106-08160 BOLT (8X21)BOLT (8X21)
-
1659231-07G20 COVER, FRONT DISCCOVER, FRONT DISC
-
1709103-06285 BOLTBOLT
-
1855110-07G00 TIRE, FRONT (AT22X7R10)TIRE, FRONT (AT22X7R10)
-
1943130-24A00 VALVE ASSY, WHEEL RIM (TR412)VALVE ASSY, WHEEL RIM (TR412)
-
2054138-07G10 PLATE, FRONT HUBPLATE, FRONT HUB
