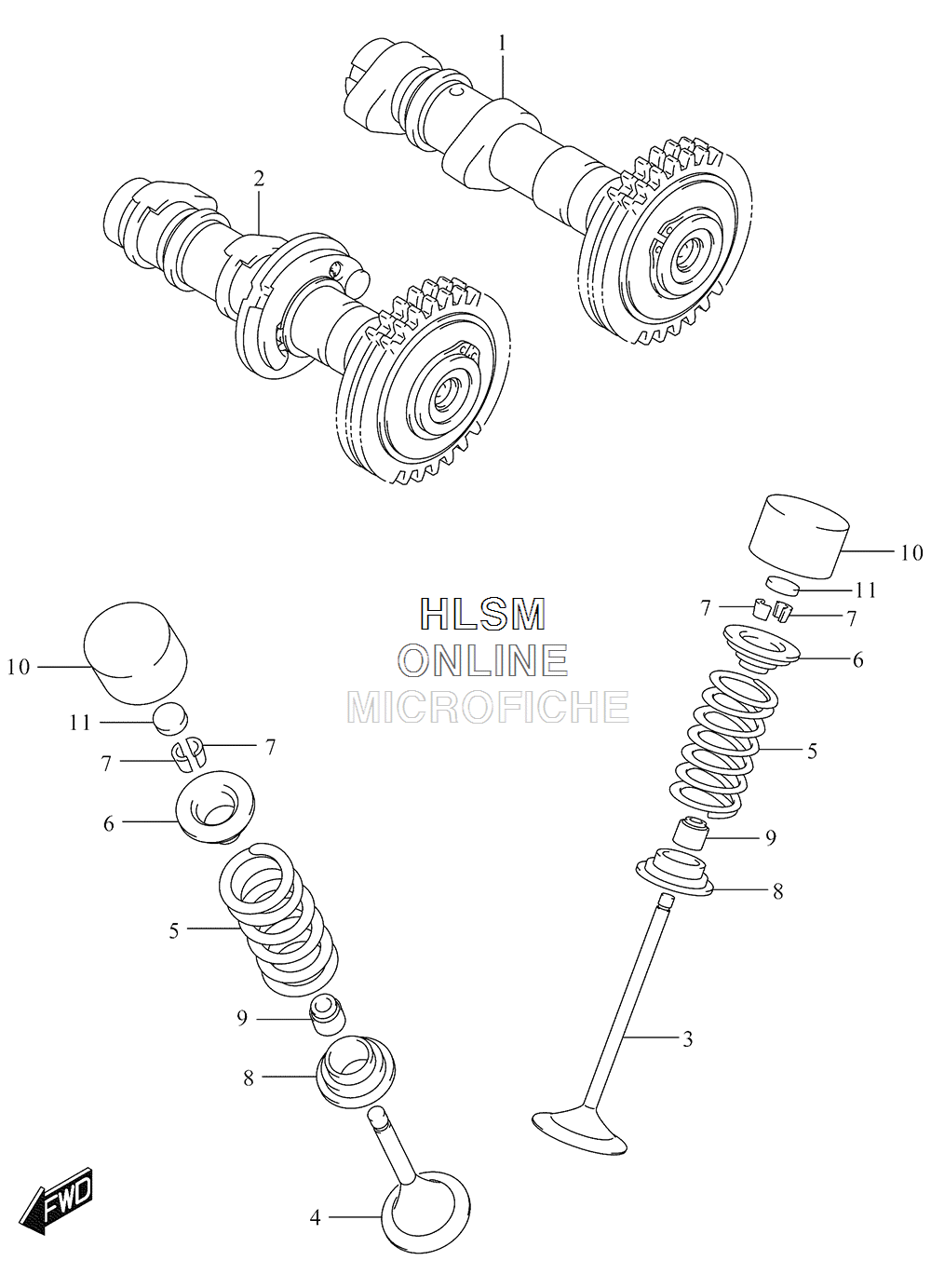

CAMSHAFT W/ VALVES для Suzuki LT-A750XPZVL5 - 2015 года выпуска
-
№АртикулНазвание
-
112710-31G10 CAMSHAFT, INTAKE (NT:41)CAMSHAFT, INTAKE (NT:41)
-
212720-31G10 CAMSHAFT, EXHAUST (NT:41)CAMSHAFT, EXHAUST (NT:41)
-
312911-31G00 VALVE, INTAKEVALVE, INTAKE
-
412912-31G00 VALVE, EXHAUSTVALVE, EXHAUST
-
512921-31G00 SPRING, VALVESPRING, VALVE
-
612931-02F10 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
712932-24400 COTTER, VALVECOTTER, VALVE
-
812933-38400 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
909289-05015 OIL SEAL (5.5X11X8.2)OIL SEAL (5.5X11X8.2)
-
1012891-02F00 TAPPETTAPPET
-
1112892-41C00-230 SHIM, TAPPET (T:2.300)SHIM, TAPPET (T:2.300)
-
1112892-41C00-232 SHIM, TAPPET (T:2.325)SHIM, TAPPET (T:2.325)
-
1112892-41C00-235 SHIM, TAPPET (T:2.350)SHIM, TAPPET (T:2.350)
-
1112892-41C00-238 SHIM, TAPPET (T:2.375)SHIM, TAPPET (T:2.375)
-
1112892-41C00-240 SHIM, TAPPET (T:2.400)SHIM, TAPPET (T:2.400)
-
1112892-41C00-242 SHIM, TAPPET (T:2.425)SHIM, TAPPET (T:2.425)
-
1112892-41C00-245 SHIM, TAPPET (T:2.450)SHIM, TAPPET (T:2.450)
-
1112892-41C00-248 SHIM, TAPPET (T:2.475)SHIM, TAPPET (T:2.475)
-
1112892-41C00-250 SHIM, TAPPET (T:2.500)SHIM, TAPPET (T:2.500)
-
1112892-41C00-252 SHIM, TAPPET (T:2.525)SHIM, TAPPET (T:2.525)
-
1112892-41C00-255 SHIM, TAPPET (T:2.550)SHIM, TAPPET (T:2.550)
-
1112892-41C00-258 SHIM, TAPPET (T:2.575)SHIM, TAPPET (T:2.575)
-
1112892-41C00-260 SHIM, TAPPET (T:2.600)SHIM, TAPPET (T:2.600)
-
1112892-41C00-262 SHIM, TAPPET (T:2.625)SHIM, TAPPET (T:2.625)
-
1112892-41C00-265 SHIM, TAPPET (T:2.650)SHIM, TAPPET (T:2.650)
-
1112892-41C00-268 SHIM, TAPPET (T:2.675)SHIM, TAPPET (T:2.675)
-
1112892-41C00-270 SHIM, TAPPET (T:2.700)SHIM, TAPPET (T:2.700)
-
1112892-41C00-272 SHIM, TAPPET (T:2.725)SHIM, TAPPET (T:2.725)
-
1112892-41C00-275 SHIM, TAPPET (T:2.750)SHIM, TAPPET (T:2.750)
-
1112892-41C00-278 SHIM, TAPPET (T:2.775)SHIM, TAPPET (T:2.775)
-
1112892-41C00-280 SHIM, TAPPET (T:2.800)SHIM, TAPPET (T:2.800)
-
1112892-41C00-282 SHIM, TAPPET (T:2.825)SHIM, TAPPET (T:2.825)
-
1112892-41C00-285 SHIM, TAPPET (T:2.850)SHIM, TAPPET (T:2.850)
-
1112892-41C00-288 SHIM, TAPPET (T:2.875)SHIM, TAPPET (T:2.875)
-
1112892-41C00-290 SHIM, TAPPET (T:2.900)SHIM, TAPPET (T:2.900)
-
1112892-41C00-292 SHIM, TAPPET (T:2.925)SHIM, TAPPET (T:2.925)
-
1112892-41C00-295 SHIM, TAPPET (T:2.950)SHIM, TAPPET (T:2.950)
-
1112892-41C00-298 SHIM, TAPPET (T:2.975)SHIM, TAPPET (T:2.975)
-
1112892-41C00-300 SHIM, TAPPET (T:3.000)SHIM, TAPPET (T:3.000)
-
1112892-41C00-302 SHIM, TAPPET (T:3.025)SHIM, TAPPET (T:3.025)
-
1112892-41C00-305 SHIM, TAPPET (T:3.050)SHIM, TAPPET (T:3.050)
-
1112892-41C00-308 SHIM, TAPPET (T:3.075)SHIM, TAPPET (T:3.075)
-
1112892-41C00-310 SHIM, TAPPET (T:3.100)SHIM, TAPPET (T:3.100)
-
1112892-41C00-312 SHIM, TAPPET (T:3.125)SHIM, TAPPET (T:3.125)
-
1112892-41C00-315 SHIM, TAPPET (T:3.150)SHIM, TAPPET (T:3.150)
-
1112892-41C00-318 SHIM, TAPPET (T:3.175)SHIM, TAPPET (T:3.175)
-
1112892-41C00-320 SHIM, TAPPET (T:3.200)SHIM, TAPPET (T:3.200)
-
1112892-41C00-322 SHIM, TAPPET (T:3.225)SHIM, TAPPET (T:3.225)
-
1112892-41C00-325 SHIM, TAPPET (T:3.250)SHIM, TAPPET (T:3.250)
-
1112892-41C00-328 SHIM, TAPPET (T:3.275)SHIM, TAPPET (T:3.275)
-
1112892-41C00-330 SHIM, TAPPET (T:3.300)SHIM, TAPPET (T:3.300)
-
1112892-41C00-332 SHIM, TAPPET (T:3.325)SHIM, TAPPET (T:3.325)
-
1112892-41C00-335 SHIM, TAPPET (T:3.350)SHIM, TAPPET (T:3.350)
-
1112892-41C00-338 SHIM, TAPPET (T:3.375)SHIM, TAPPET (T:3.375)
-
1112892-41C00-340 SHIM, TAPPET (T:3.400)SHIM, TAPPET (T:3.400)
-
1112892-41C00-342 SHIM, TAPPET (T:3.425)SHIM, TAPPET (T:3.425)
-
1112892-41C00-345 SHIM, TAPPET (T:3.450)SHIM, TAPPET (T:3.450)
-
1112892-41C00-348 SHIM, TAPPET (T:3.475)SHIM, TAPPET (T:3.475)
-
1112892-41C00-350 SHIM, TAPPET (T:3.500)SHIM, TAPPET (T:3.500)
-
1212800-41810 SHIM SET, TAPPET T:2.50, 2.55...3.45, 3.50 (5PCS.EACH) AND CASE (OPT NOT ILLUSTRATED)SHIM SET, TAPPET T:2.50, 2.55...3.45, 3.50 (5PCS.EACH) AND CASE (OPT NOT ILLUSTRATED)
-
1399000-69471 CASE, TAPPET SHIM (OPT NOT ILLUSTRATED)CASE, TAPPET SHIM (OPT NOT ILLUSTRATED)
