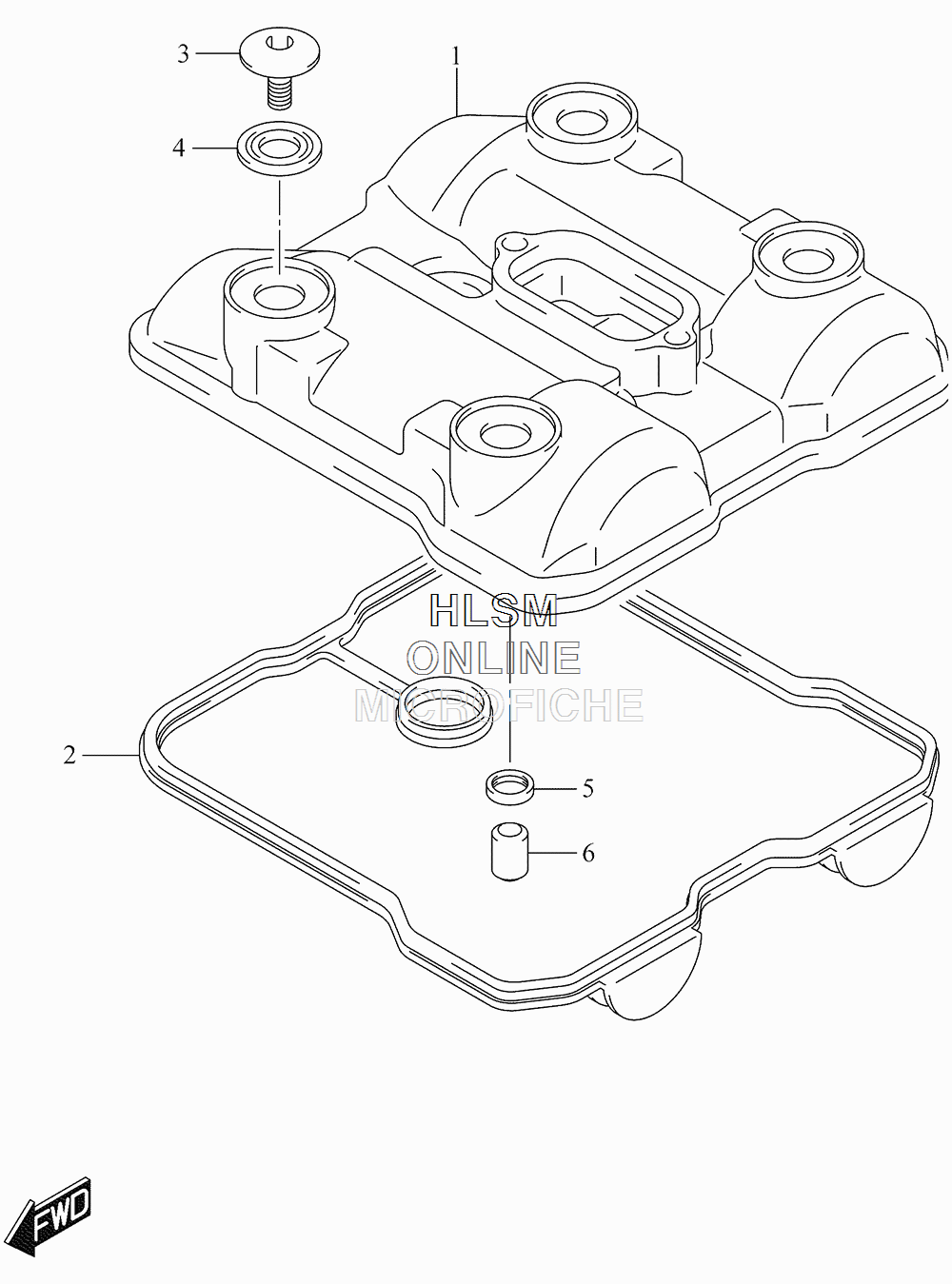

CYLINDER HEAD COVER для Suzuki LT-A750XPZVL5 - 2015 года выпуска
-
№АртикулНазвание
-
111171-31G50 COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
211173-31G00 GASKET, CYLINDER HEAD COVERGASKET, CYLINDER HEAD COVER
-
309106-07009 BOLT (7X17.5)BOLT (7X17.5)
-
411191-27E00 WASHER, CYL HEAD COVER (L:5.5)WASHER, CYL HEAD COVER (L:5.5)
-
511182-35F10 GASKET, 2ND AIR PASSAGEGASKET, 2ND AIR PASSAGE
-
609206-10016 PIN (8.2X10X13)PIN (8.2X10X13)
