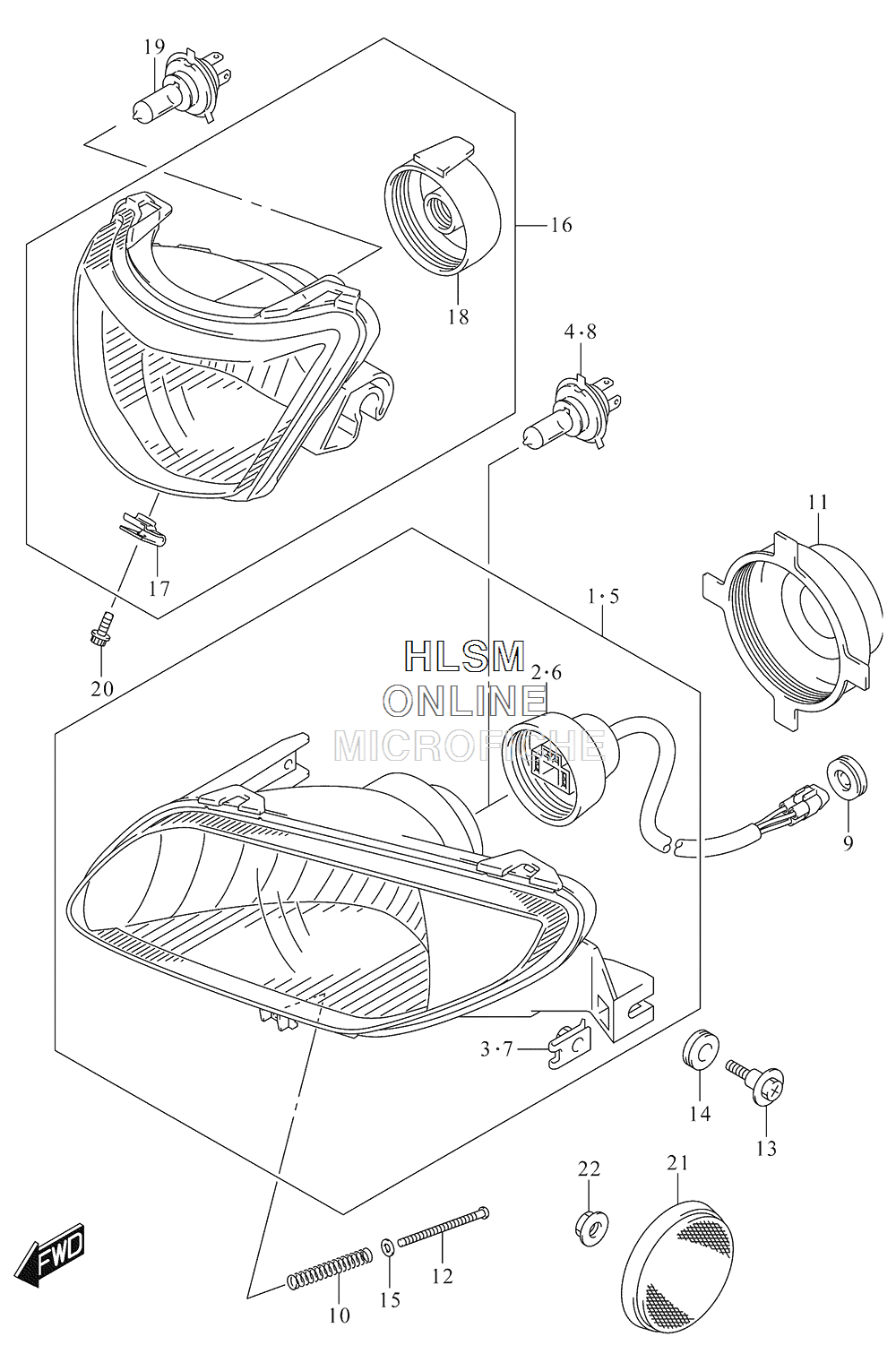

HEADLAMP (P28) для Suzuki LT-A750XPZVL5 - 2015 года выпуска
-
№АртикулНазвание
-
135100-31G92-999 HEADLAMP ASSY RIGHT HANDHEADLAMP ASSY RIGHT HAND
-
235171-31GM1 CORD ASSY RIGHT HANDCORD ASSY RIGHT HAND
-
335157-31G90 NUTNUT
-
409471-12101 BULB (12V,35/35W)BULB (12V,35/35W)
-
535300-31G92-999 HEADLAMP ASSY LEFT HANDHEADLAMP ASSY LEFT HAND
-
635171-31GH1 CORD ASSY LEFT HANDCORD ASSY LEFT HAND
-
735157-31G90 NUTNUT
-
809471-12101 BULB (12V,35/35W)BULB (12V,35/35W)
-
909308-07011 GROMMETGROMMET
-
1035154-31300 SPRING, HEADLAMP ADJUSTSPRING, HEADLAMP ADJUST
-
1135174-31G00 COVER, HEADLAMP HOUSINGCOVER, HEADLAMP HOUSING
-
1209125-04031 SCREW (4X50)SCREW (4X50)
-
1309139-06118 SCREW (6X22.5)SCREW (6X22.5)
-
1409320-10501 CUSHIONCUSHION
-
1508322-0104A WASHERWASHER
-
1635100-31GB2-999 HEADLAMP ASSY, AUXHEADLAMP ASSY, AUX
-
1735157-31GB0 NUTNUT
-
1835174-31GB0 COVERCOVER
-
1909471-12101 BULB (12V,35/35W)BULB (12V,35/35W)
-
2007120-0512B BOLTBOLT
-
2135950-14A11 REFLEX REFLECTOR ASSY, FR SIDEREFLEX REFLECTOR ASSY, FR SIDE
-
2208316-1005B NUTNUT
