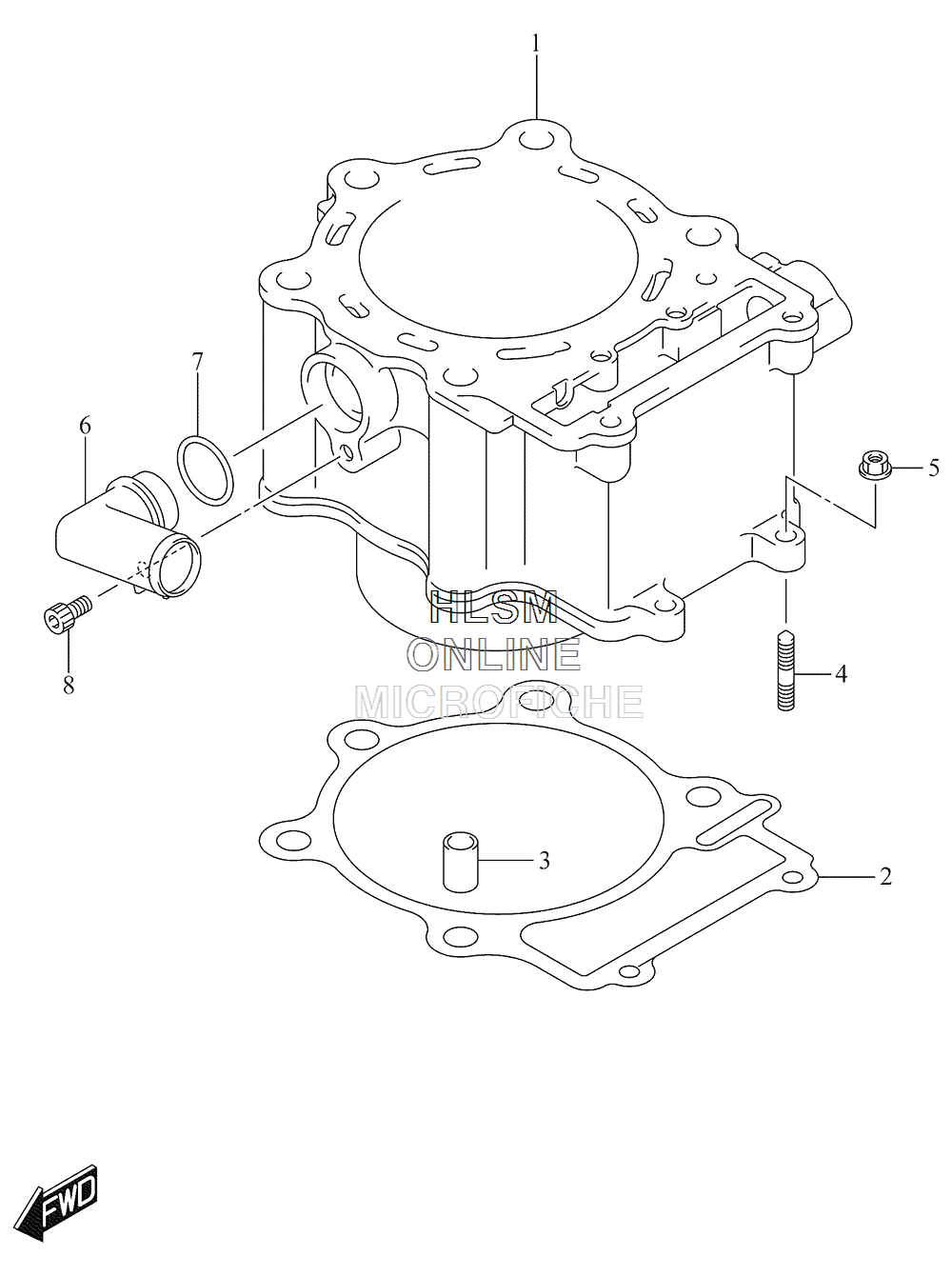

CYLINDER для Suzuki LT-A750XPZVL5 - 2015 года выпуска
-
№АртикулНазвание
-
111211-31G50-0F0 CYLINDERCYLINDER
-
211241-31G00 GASKET, CYLINDERGASKET, CYLINDER
-
304211-13189 PINPIN
-
401421-0620A STUD BOLTSTUD BOLT
-
508316-1006A NUTNUT
-
617857-31G00 UNION, WATER HOSEUNION, WATER HOSE
-
709280-21015 O RING (D:2.7,ID:21.4)O RING (D:2.7,ID:21.4)
-
807130-0612A BOLTBOLT
