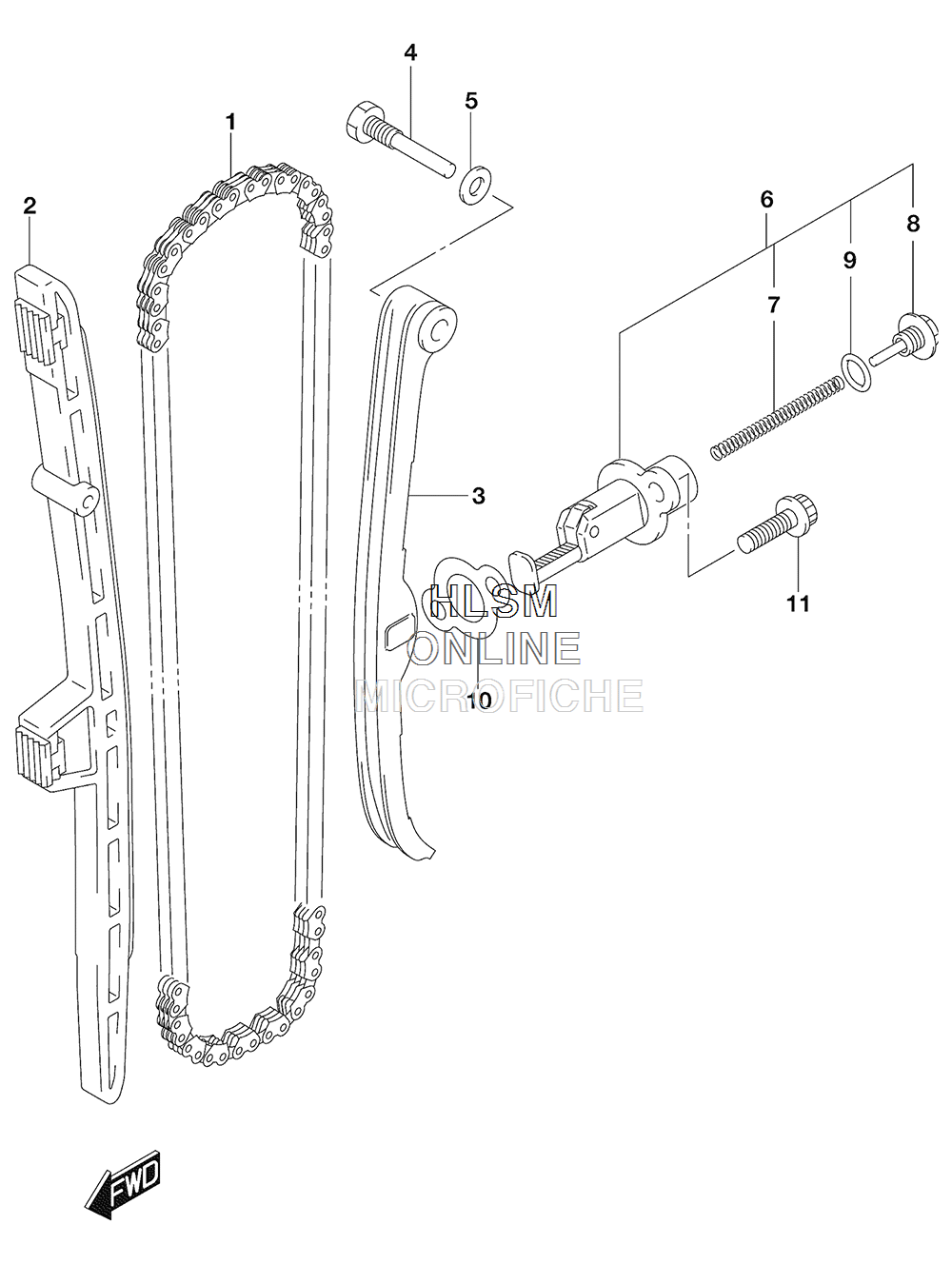

CAM CHAIN ASSY. W/ TENSIONER для Suzuki LT-F400FL5 KINGQUAD 400 Fsi - 2015 года выпуска
-
№АртикулНазвание
-
112760-19B71 CHAIN, CAM (108LE)CHAIN, CAM (108LE)
-
212771-27H00 GUIDE, CAM CHAINGUIDE, CAM CHAIN
-
312811-14D10 TENSIONER, CAM CHAINTENSIONER, CAM CHAIN
-
412812-32400 BOLTBOLT
-
509168-08016 GASKET (8.2X14X1)GASKET (8.2X14X1)
-
612830-29B11 ADJUSTER ASSY, TENSIONERADJUSTER ASSY, TENSIONER
-
712833-29B00 SPRINGSPRING
-
812834-26B00 PLUG, ADJUSTERPLUG, ADJUSTER
-
912832-02A00 O RINGO RING
-
1012837-14D00 GASKET, TENSIONER ADJUSTERGASKET, TENSIONER ADJUSTER
-
1107130-0620A BOLTBOLT
