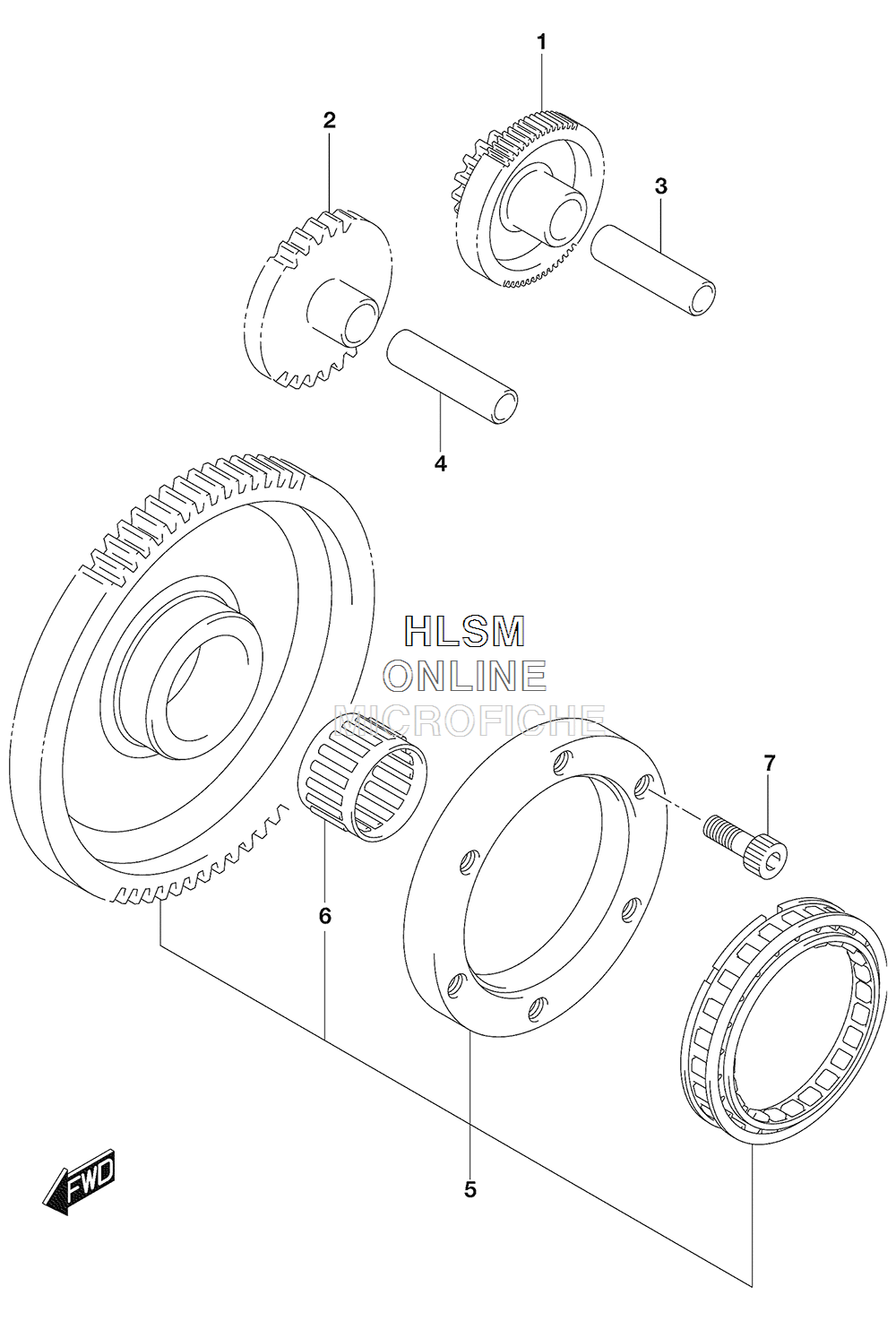

STARTER CLUTCH для Suzuki LT-F400FL5 KINGQUAD 400 Fsi - 2015 года выпуска
-
№АртикулНазвание
-
112611-38F00 GEAR, STARTER IDLE NO.1 (NT:10/56)GEAR, STARTER IDLE NO.1 (NT:10/56)
-
212612-12D01 GEAR, STARTER IDLE NO.2 (NT:27)GEAR, STARTER IDLE NO.2 (NT:27)
-
309206-12005 PIN (8X12X59)PIN (8X12X59)
-
409206-12006 PIN (8X12X45.5)PIN (8X12X45.5)
-
512600-38851 CLUTCH SET, STARTER ONE WAY (NT:73)CLUTCH SET, STARTER ONE WAY (NT:73)
-
609263-29008 BEARING (29X36X18)BEARING (29X36X18)
-
709106-08106 BOLT (8X20)BOLT (8X20)
