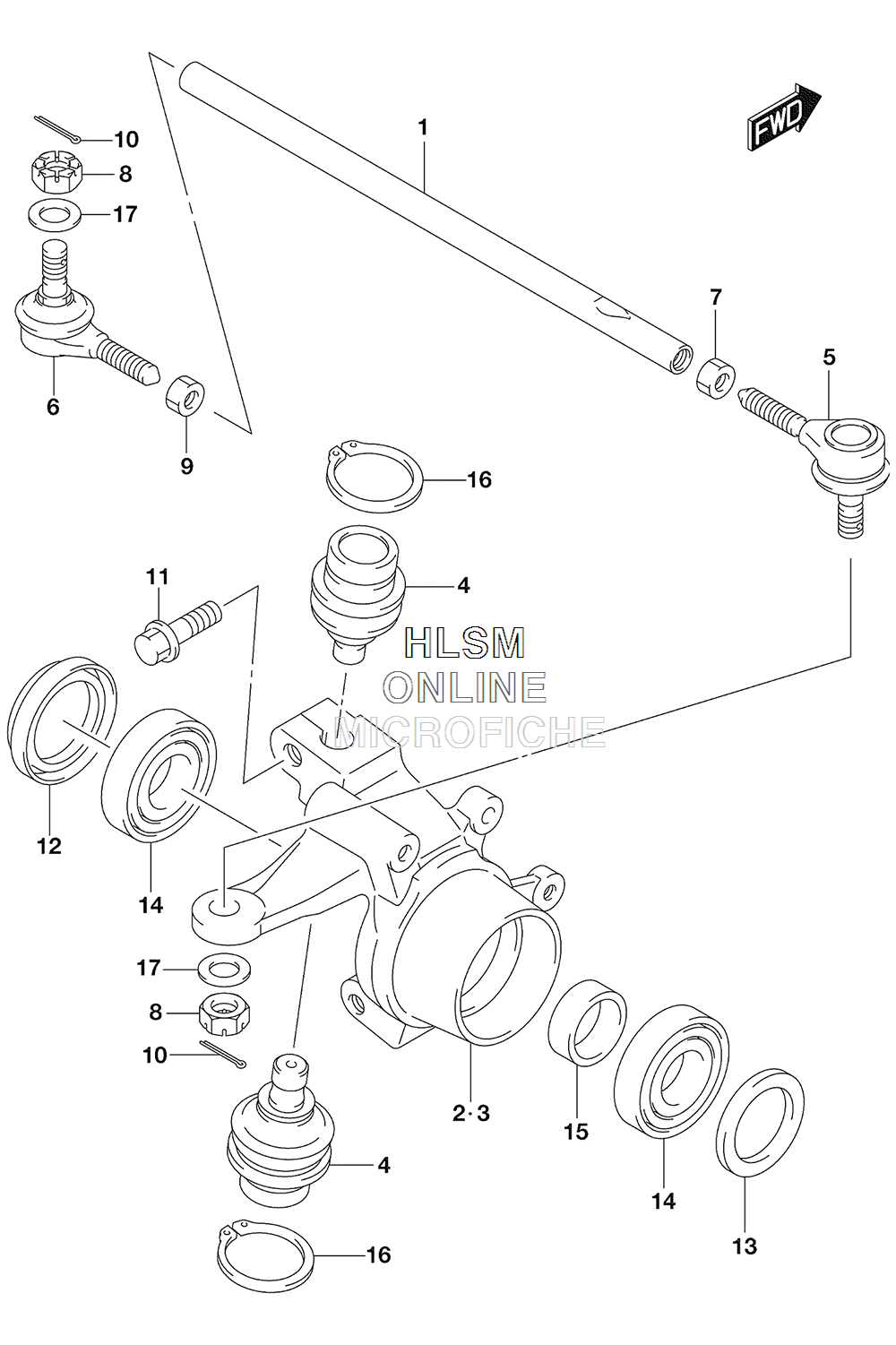

STEERING KNUCKLE для Suzuki LT-F400FL5 KINGQUAD 400 Fsi - 2015 года выпуска
-
№АртикулНазвание
-
151281-27H00 TIE ROD, STEERINGTIE ROD, STEERING
-
251231-27H00 KNUCKLE, STEERING RIGHT HANDKNUCKLE, STEERING RIGHT HAND
-
351241-27H00 KNUCKLE, STEERING LEFT HANDKNUCKLE, STEERING LEFT HAND
-
451210-38F00 END, KNUCKLE STEERINGEND, KNUCKLE STEERING
-
551260-21G00 ROD, END RIGHT HANDROD, END RIGHT HAND
-
651270-21G00 ROD, END LEFT HANDROD, END LEFT HAND
-
751283-21G00 NUT, TIE-ROD RIGHT HANDNUT, TIE-ROD RIGHT HAND
-
808314-4010B NUTNUT
-
909140-10027 NUTNUT
-
1004111-2020A COTTER PINCOTTER PIN
-
1151233-09F00 BOLT, KNUCKLE (10X30)BOLT, KNUCKLE (10X30)
-
1209283-38012 OIL SEAL (38X55X8)OIL SEAL (38X55X8)
-
1309283-38022 OIL SEAL (38X55X9)OIL SEAL (38X55X9)
-
1408123-60067 BEARINGBEARING
-
1554731-03G00 SPACER, HUB BEARINGSPACER, HUB BEARING
-
1608331-31309 CIRCLIPCIRCLIP
-
1709160-10082 WASHER (10.5X19X2)WASHER (10.5X19X2)
