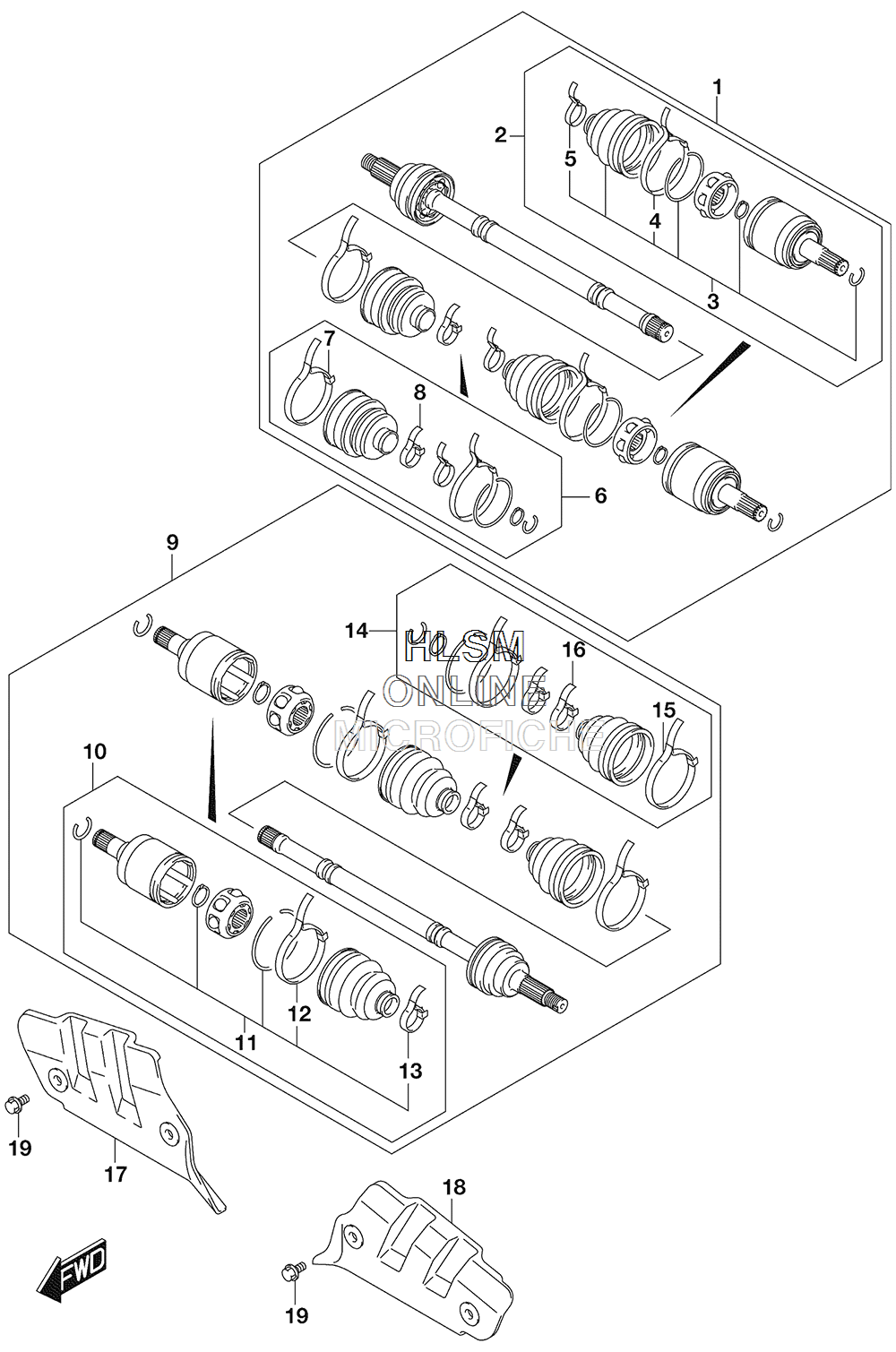

DRIVE SHAFT - FRONT для Suzuki LT-F400FL5 KINGQUAD 400 Fsi - 2015 года выпуска
-
№АртикулНазвание
-
154901-27H00 SHAFT ASSY, FRONT DRIVE RIGHT HANDSHAFT ASSY, FRONT DRIVE RIGHT HAND
-
254933-38F13 JOINT SETJOINT SET
-
354931-38F13 BOOT SET, INNERBOOT SET, INNER
-
444121-38F20 BAND, BOOTBAND, BOOT
-
544124-38F00 BAND, BOOTBAND, BOOT
-
654930-27H00 BOOT SET, OUTERBOOT SET, OUTER
-
744121-38F30 BAND, BOOTBAND, BOOT
-
844124-38F00 BAND, BOOTBAND, BOOT
-
954902-27H00 SHAFT ASSY, FRONT DRIVE LEFT HANDSHAFT ASSY, FRONT DRIVE LEFT HAND
-
1054933-38F13 JOINT SETJOINT SET
-
1154931-38F13 BOOT SET, INNERBOOT SET, INNER
-
1244121-38F20 BAND, BOOTBAND, BOOT
-
1344124-38F00 BAND, BOOTBAND, BOOT
-
1454930-27H00 BOOT SET, OUTERBOOT SET, OUTER
-
1544121-38F30 BAND, BOOTBAND, BOOT
-
1644124-38F00 BAND, BOOTBAND, BOOT
-
1754903-27H00 PROTECTOR, DRIVE SHAFT RIGHT HANDPROTECTOR, DRIVE SHAFT RIGHT HAND
-
1854904-27H00 PROTECTOR, DRIVE SHAFT LEFT HANDPROTECTOR, DRIVE SHAFT LEFT HAND
-
1909111-06085 BOLT (6X12)BOLT (6X12)
